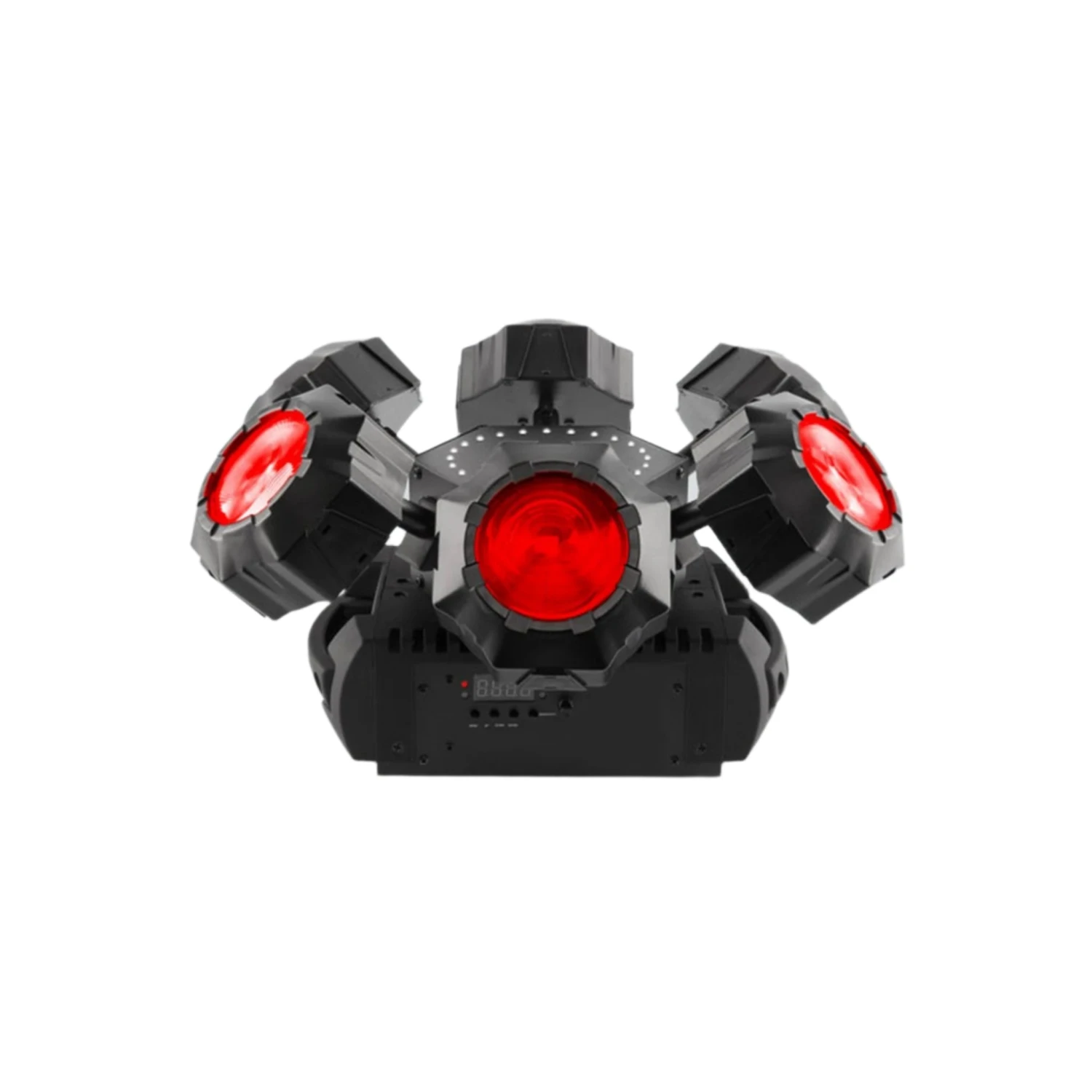

Chauvet DJ Helicopter Q6 RGBW Multi-Effects LED SMD Strobe Beam

Helicopter Q6 is a multi-effect effect light designed to dazzle and energize the dance floor. It features adjustable RGBW beams, a round SMD strobe, and a red/green pattern laser on a rotating base with continuous pan rotation creating unique and amazing effects. Its narrow, razor-sharp beams of RGBW light create astonishing aerial effects, and the rotating red and green laser produces thousands of razor-sharp beams that cover a large area. Helicopter Q6 is easy to control using automated and sound-activated programs, master/slave, DMX, or an optional IRC-6 remote.

Key Features

• A multi-effect light that includes adjustable RGBW beams, a round SMD strobe, and a red/green pattern laser on a rotating base
• Continuous pan rotation that creates unique and amazing effects unlike any other light
• Narrow, razor-sharp beams of RGBW light for astonishing aerial effects
• Achieve maximum room coverage by positioning each of the 6 RGBW beams independently
• Rotating red and green laser produces thousands of razor-sharp beams that cover a large area
• Flexible control using automated and sound-activated programs, Master/Slave, DMX, or an optional IRC-6
• Save time running cables and extension cords by power linking multiple units
• Fits best in the CHS-40 VIP Gear Bag

Product Specifications

DMX Channels: 3 or 16

DMX Connectors: 3-pin XLR

Pan and Tilt Ranges: 360°

Light Source: (Beam): 6 (RGBW) 6.9 W, (2 A), 50,000 hours life expectancy
(Strobe) 24 LEDs (white) 1 W, (281 mA), 50,000 hours life expectancy
(Laser): 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode

Strobe Rate: (Beam): 1 to 20 Hz
(Strobe): 1 to 20 Hz

Beam Angle: (Beam): 3°

Illuminance: Red: 5,170 lux @ 2 m
Green: 6,650 lux @ 2 m
Blue: 6,550 lux @ 2 m
White: 7,020 lux @ 2 m

Power Linking: 12 units @ 120 V; 23 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 41 W, 0.7 A @ 120 V, 60 Hz
44 W, 0.4 A @ 230 V, 50 Hz

Weight: 8.8 lb (4.0 kg)

Size: 15.4 x 15.4 x 9.4 in (390 x 390 x 239.7 mm)

Approvals: CE, FDA

Optional Controllers: IRC-6

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Package Contents

• Helicopter Q6
• Power cord
• Hanging bracket with mounting hardware
