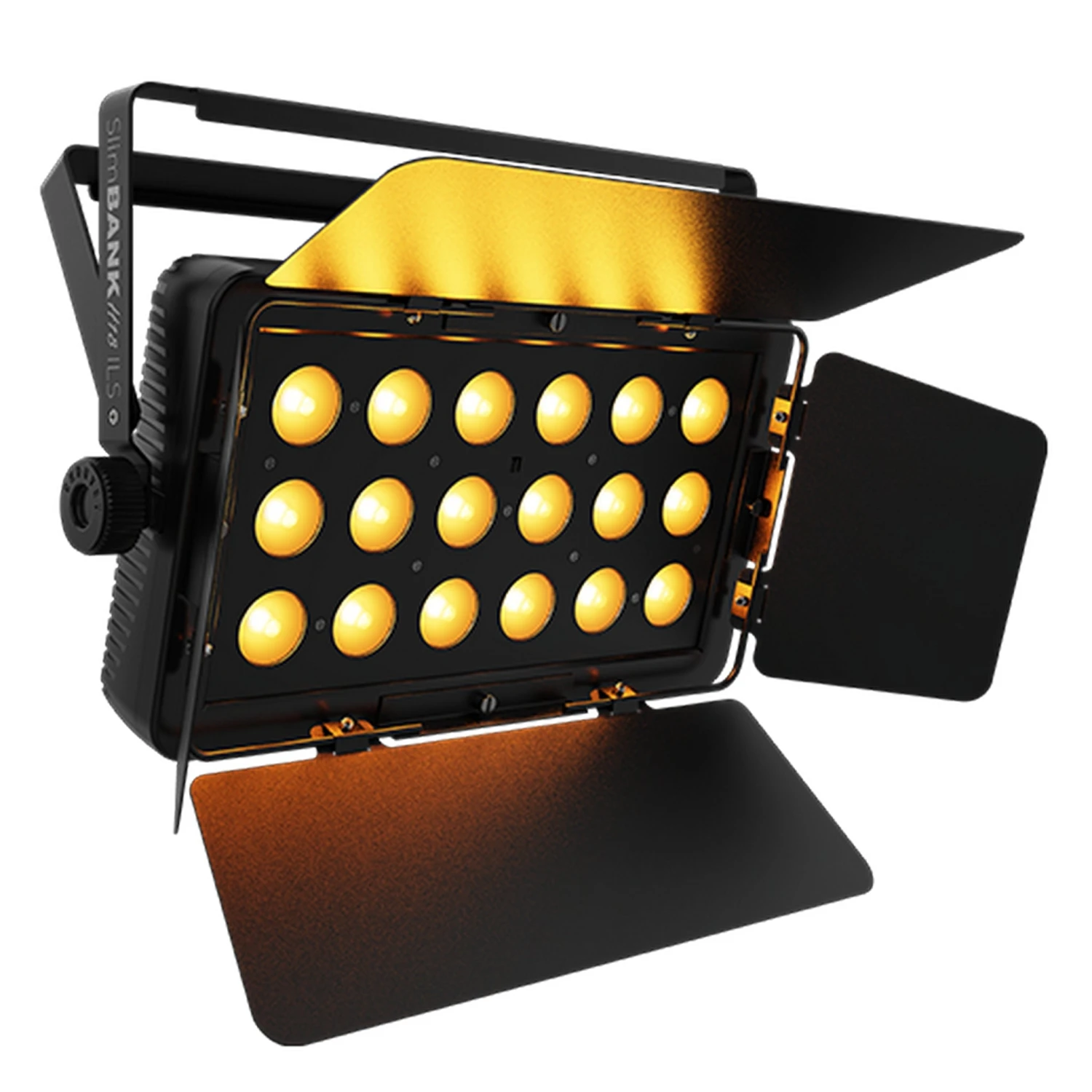

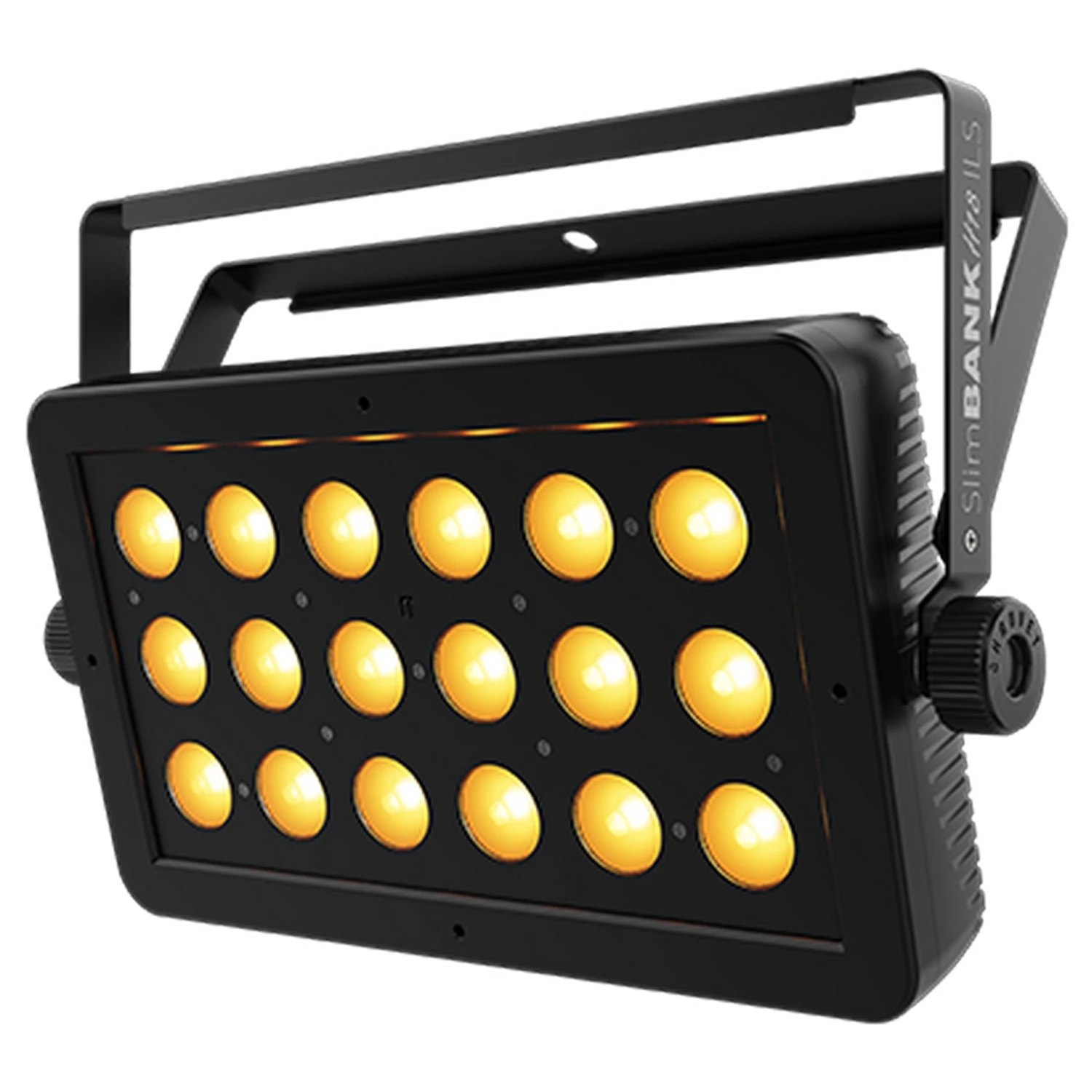

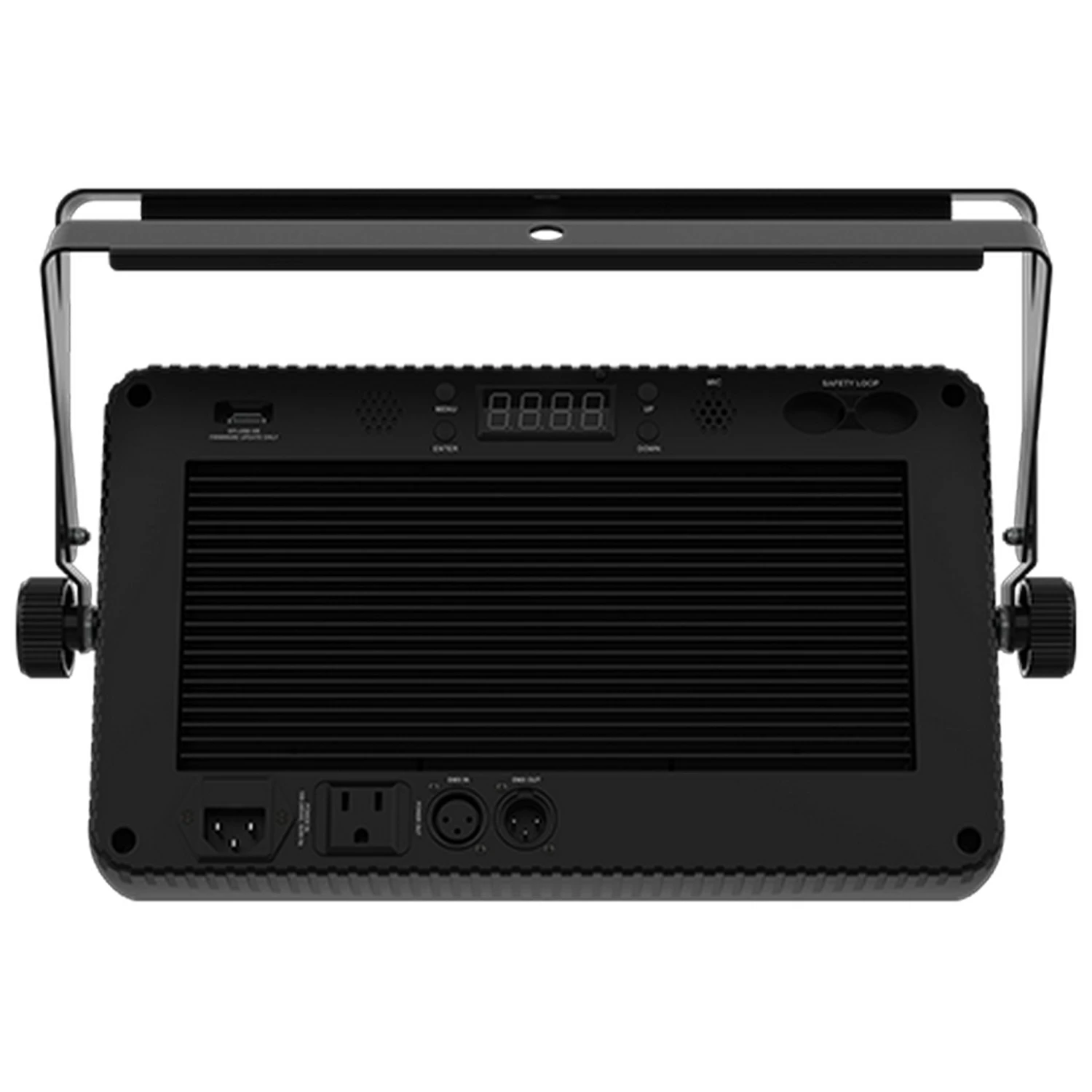

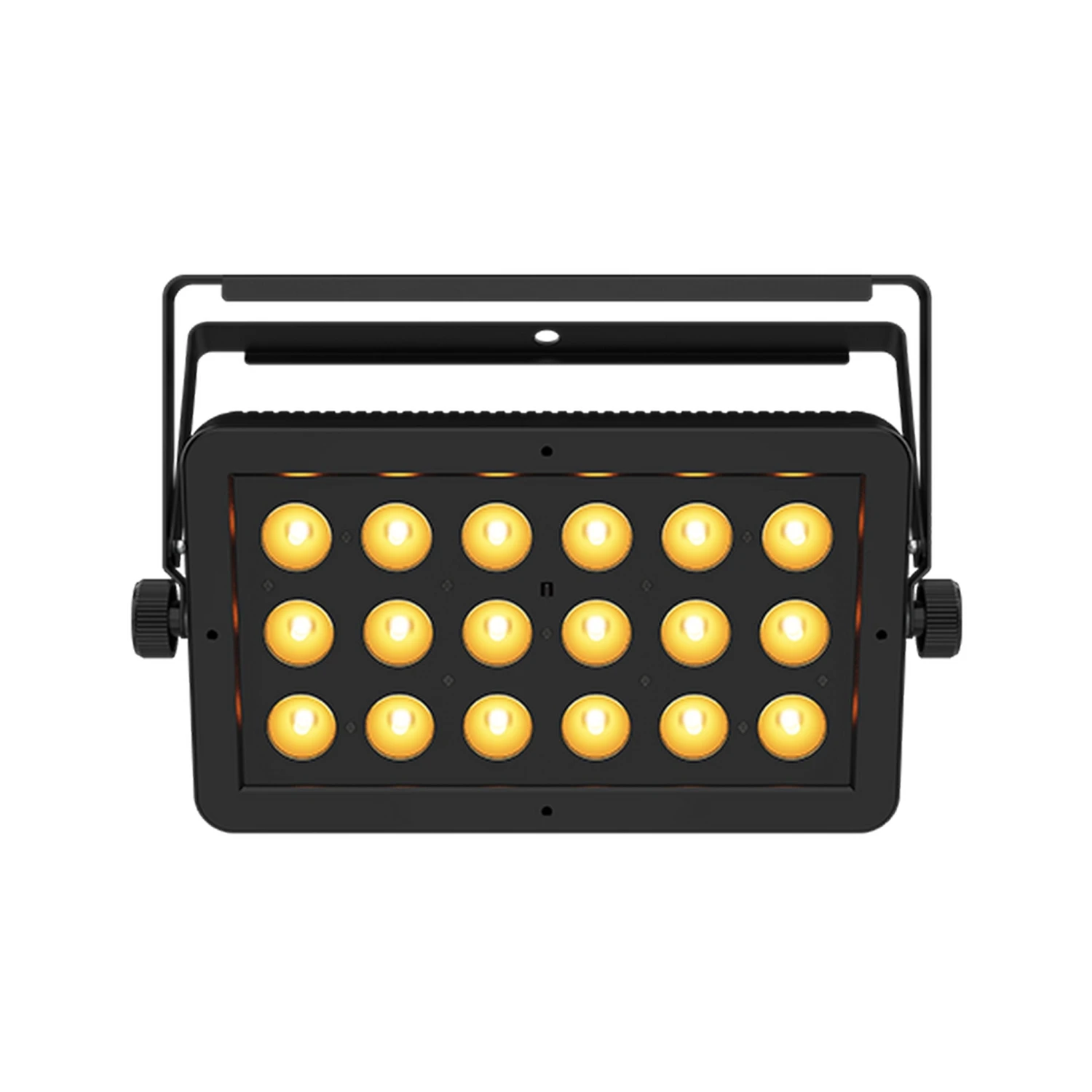

Chauvet DJ SlimBANK H18 ILS Hex-Color RGBAW+UV LED Wash Light(Chauvet Dj Slimbank H18 Ils Hex Color Rgbaw Uv Led Wash Light)

The Chauvet DJ SlimBANK H18 ILS Hex-Color RGBAW+UV LED Wash Light is a light that offers a wide range of vibrant colors and eye-catching effects. With ILS compatibility, it seamlessly integrates with other fixtures, allowing for effortless coordination in light shows. The built-in dimming curves ensure smooth fading of the LEDs, while the pre-programmed auto programs with sectional control enable the creation of intricate lighting displays in a matter of moments. Additionally, its innovative design, featuring radiant cooling and a fan-free operation, makes it perfect for environments where noise is a concern.

Key Features

• Hex-color LED wash light with eye-catching effects
• ILS compatibility for seamless integration in the ILS ecosystem
• Easily create complex looks with built-in auto programs and sectional control
• Adjustable barn doors for directing and focusing light
• Control options include IRC-6 remote, Master/Slave, DMX, or ILS
• Smooth LED fading achieved with built-in dimming curves
• Ideal for sound-sensitive environments with radiant cooling and fan-free design
• Power link multiple units to save time on running extension cords
• Versatile fixture for creating coordinated light shows with different fixture types
• Efficient design for generating brilliant eye candy effects

Technical Specifications

DMX Channels
6, 8, 12 or 22
DMX Connectors
3-pin XLR
Light Source
18 LEDs (hex-color RGBAW+UV) 6.2 W, (1.6 A), 50,000 hours life expectancy
Strobe Rate
0 to 20 Hz
Beam Angle
27°
Field Angle
43°
Illuminance
3,111 lux @ 2 m
Lumens
3,356
Power Linking
8 units @ 120 V; 14 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
68 W, 1 A @ 120 V, 60 Hz, 67 W, .5 A @ 230 V, 50 Hz
Weight
6 lb. (2.7 kg)
Size
8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
Approvals
CE, RoHS
Optional Controllers
IRC-6, ILS Command
Bracket Mounting Hole
13 mm
Beam Angle
27°
Field Angle
43°
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
WHAT’S INCLUDED
SlimBANK H18 ILS
Power cord
Barn doors
Quick Reference Guide
