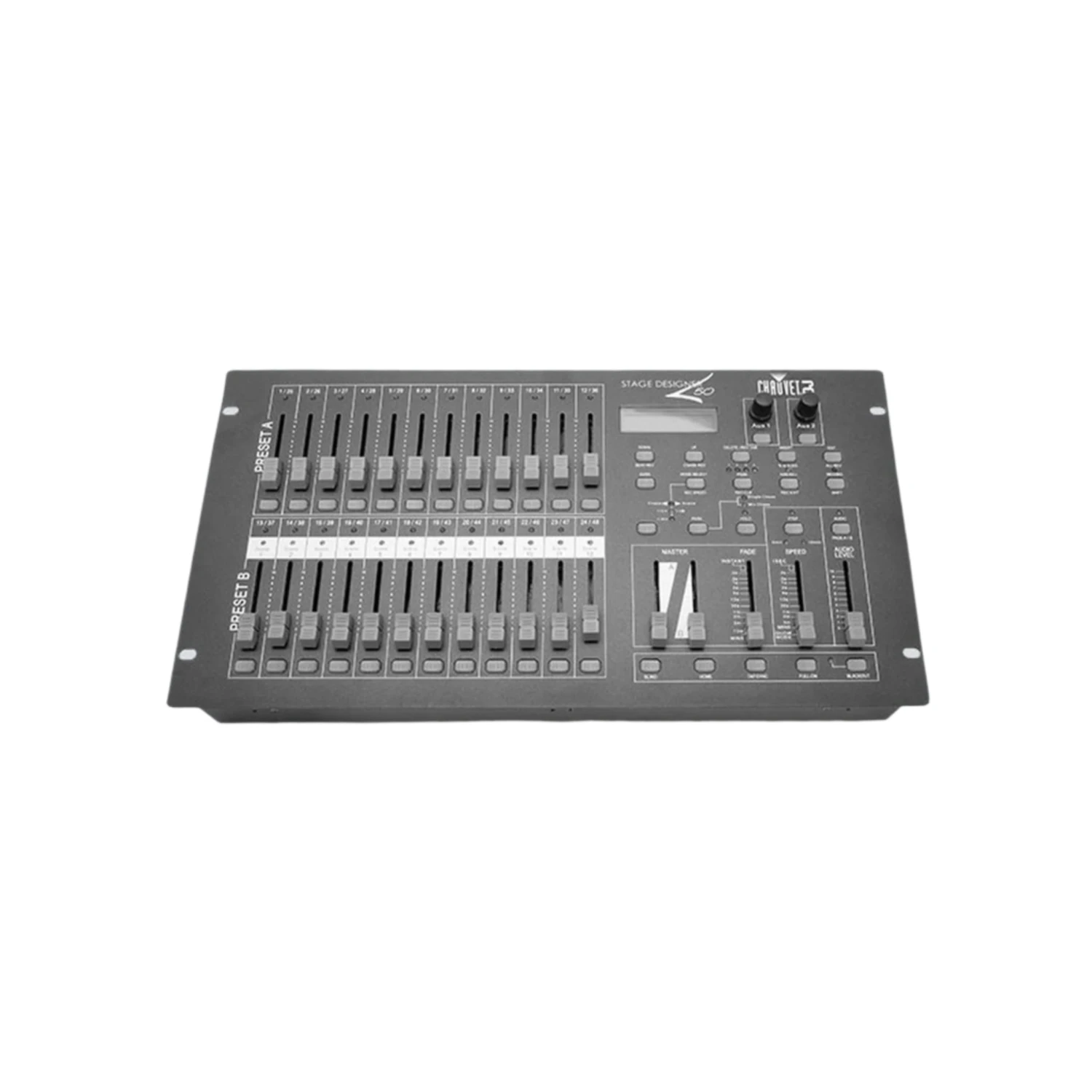

Chauvet DJ Stage Designer 50 48-channel DMX-512 Dimming Console

The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. This innovative DMX controller is designed to provide you with unparalleled control over your LED Par fixtures, relay, and dimmer packs, enabling you to create captivating lighting displays that will leave your audience in awe.

With the Stage Designer 50, you can save valuable desk space by squeezing 48 channels into a compact 24-channel console. Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders, ensuring seamless and professional-grade lighting transitions that elevate your performances.

Increase your programming and playback versatility with two programmable auxiliaries, allowing you to explore new creative possibilities and push the boundaries of your lighting designs. Simplify your programming process by using DMX channel patching to reassign channels, providing you with a streamlined and efficient workflow.

Key Features

• Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
• Saves desk space by squeezing 48 channels into a 24-channel console
• Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
• Increase programming and playback versatility with two programmable auxiliaries
• Simplify programming by using DMX channel patching to reassign channels
• Increase flexibility with built-in MIDI support for remote dimming and scene triggering
• Coordinate your light shows to music using the direct audio input connector or built-in microphone
• Ability to stack scenes for simultaneous or sequential playback

Product Specifications

DMX Channels: 48

DMX Connectors: 3- and 5-pin XLR

Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)

Weight: 9.9 lb (4.5 kg)

Size: 19 x 10.5 x 3.5 in (483 x 267 x 89 mm)

Approvals: CE

Rackmount: 6U

What’s Included

• Power cord
• User manual
• Warranty card
• External power supply
