Chauvet Professional Ovation Cyc 1 FC V2 RGBAL Cyclorama Wash Footlight(Chauvet Professional Ovation Cyc 1 Fc V2 Rgbal Cyclorama Wash Footlight)

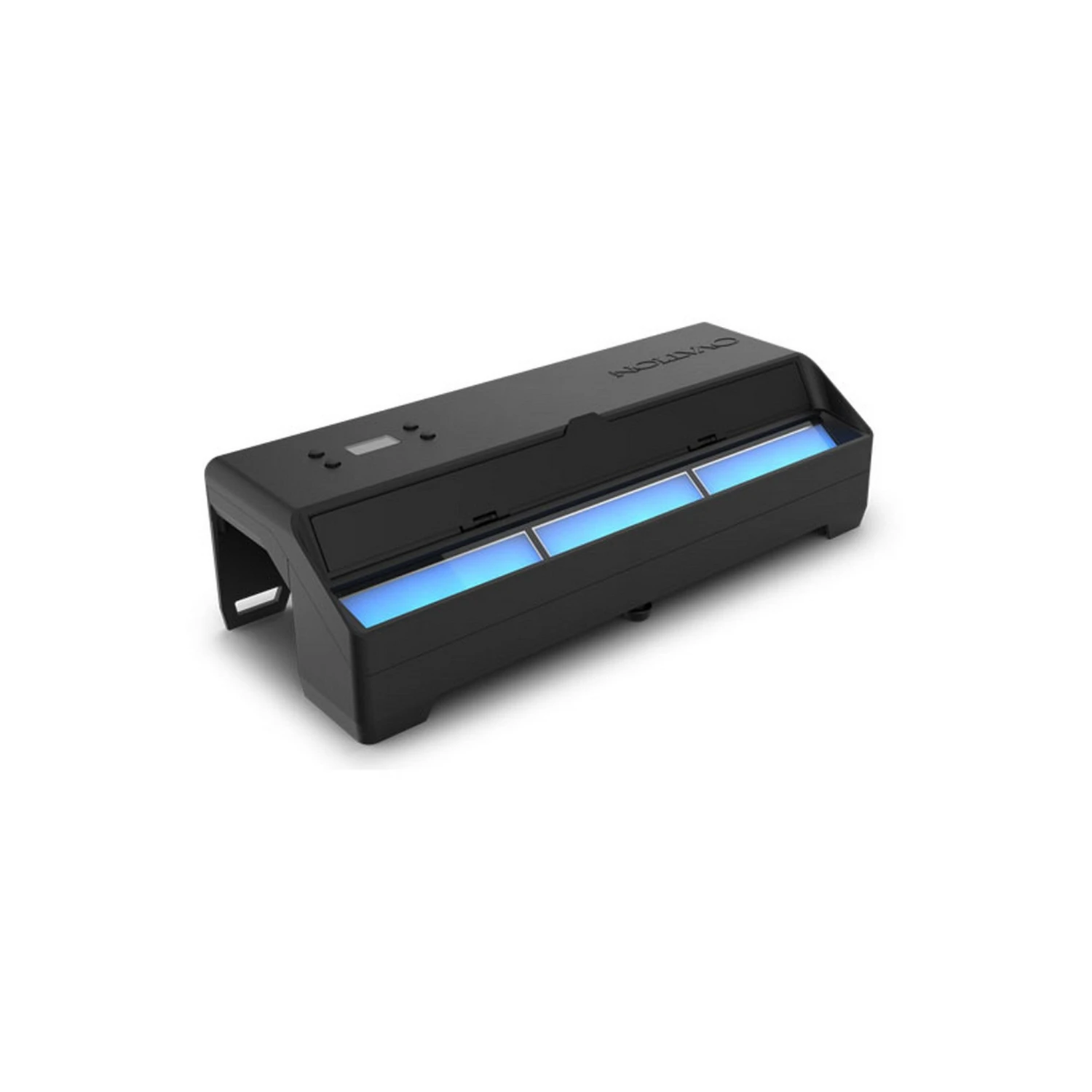

Chauvet Professional Ovation Cyc 1 FC v2 RGBAL Cyclorama Wash Footlight

Ovation CYC 1 FC is an incredibly sleek, discreet, and light weight CYC that delivers a wide, smooth field of light with significant reach. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low-profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features an included omega bracket.

Key Features

• Low-profile and lightweight cyclorama wash or footlight fixture
• Display a full spectrum of hues with RGBAL LEDs for theatre, film and production
• Theatre-ready with 16-bit dimming of master dimmer and individual colors
• Beam modification with built in “kick stand” and adjustable glare shield
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular gel colors and color temperature presets
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Silent operation for use in studio and theatre applications

Technical Specifications

OPTICAL
Light Source
60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
Color Temperature (range)
2800 to 6500 K
CRI (3200 K)
90.6
Beam Angle
81.1° (Horizontal)
Beam Angle
87.1° (Vertical)
Field Angle
124.6° (Horizontal)
Field Angle
148.1° (Vertical)
Lumens
8,966
Illuminance
210 lux @ 5 m
PWM Frequency
600, 1200, 2000, 4000, 6000, 25,000 Hz
DYNAMIC EFFECTS
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 27 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dim Modes
4
Built-in Automated Programs
Yes
Customizable Programs
No
Recall Custom Programs
No
CONSTRUCTION / PHYSICAL
Dimensions
16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
Weight
9 lb (4.2 kg)
Exterior Color
Black
Housing Material
Aluminum die-cast
CONNECTIONS
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin XLR
Cable Length (power)
5 ft (1.5 m)
CONTROL
Control Protocol
DMX, RDM
DMX Channels
2, 4, 5, 8, 11, 13, 14, 16 or HSV
Modes/Personalities
9 personalities (2, 4, 5, 8, 11, 13, 14, 16 HSV)
ELECTRICAL
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking
11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
Power and Current
139 W, 1.14 A @ 120 V, 60 Hz
Power and Current
137 W, 0.64 A @ 208 V, 60 Hz
Power and Current
137 W, 0.58 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating
IP20, dry location
Temperature (Ambient)
-4 Degrees F to 113 Degrees F (-20 Degrees C to 45 Degrees C)
WHAT’S INCLUDED
OVATION CYC-1FC
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware
OPTIONAL ACCESSORIES
Professional Clamps
CTC-50HC, CTC-50HCN
Seetronic Powerkon IP65 power cables
3-pin or 5-pin DMX Cables
