Christie DWU850-GS 1DLP WUXGA 7500 ANSI Lumen Phosphor Projector(Christie Dwu850 Gs 1dlp Wuxga 7500 Ansi Lumen Phosphor Projector)

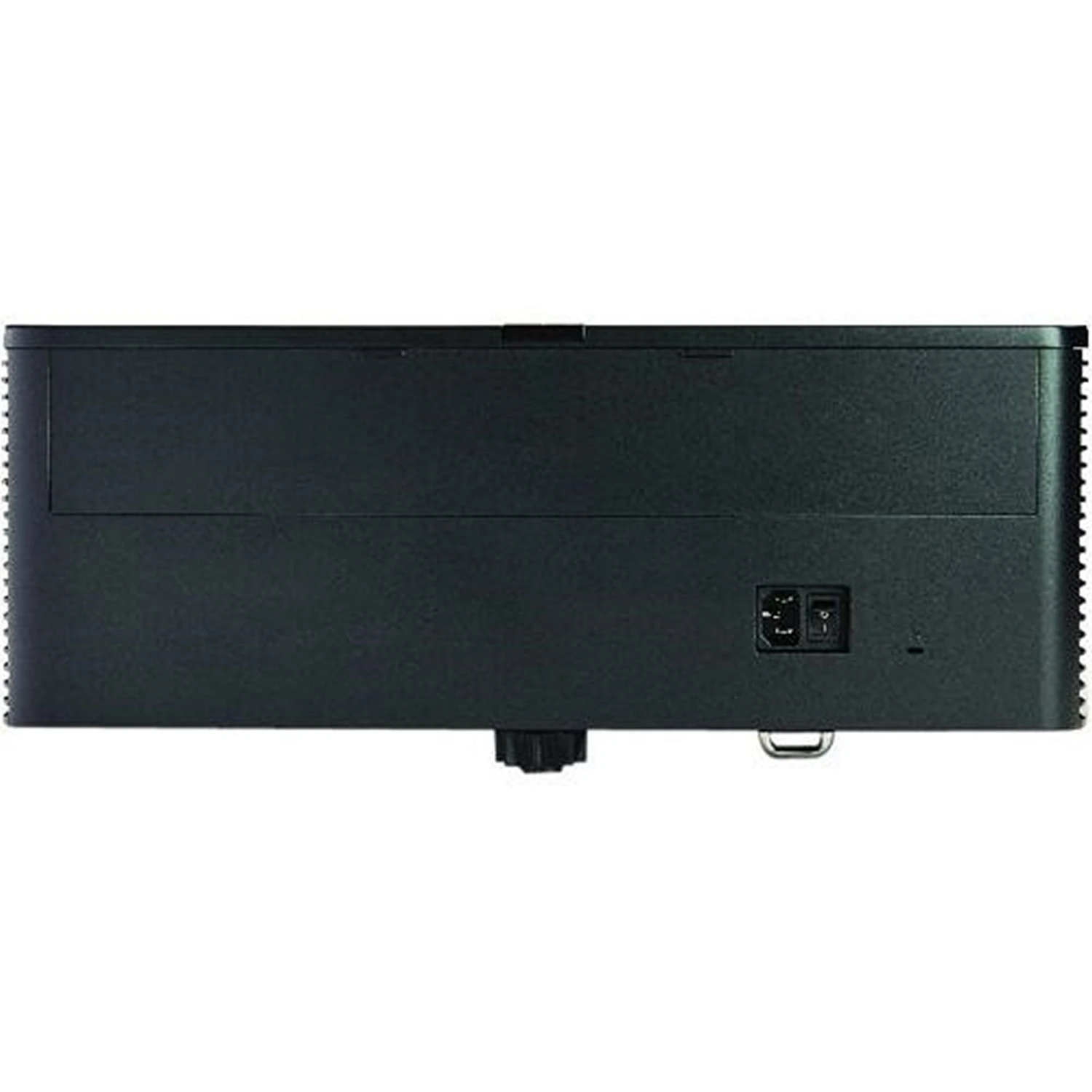

Christie DWU850-GS 1DLP WUXGA 7500 ANSI Lumen Phosphor Projector

Featuring laser phosphor illumination, the Christie DWU850-GS 1DLP projector eliminates the need for lamp and filter replacements, providing 20,000 hours of low-cost operation. With its small footprint, low weight, quiet operation and a full suite of lenses, the Christie DWU850-GS is ideal for boardrooms, higher education, houses of worship and smaller location-based entertainment venues.

Key Features

• 1920 x 1200 WUXGA, 7,500 ANSI lumens
• Laser phosphor illumination combined with Christie BoldColor Technology for the highest quality images, life-like color reproduction and reliability
• 20,000 hours of low-cost operation
• Built-in color matching for a more uniform image in a multiple projector configuration
• Built-in advanced (grid-based) warping and blending for complex applications.?
• ?24/7 operation
• Standard HDBaseT input
• Optional wireless module for device flexibility and easy presentation set up
• ?DICOM simulation mode for training purposes

Technical Specifications

Brightness?
8,400 ISO
8,000 Center
7,500 ANSI (typical)?
Contrast
300,000:1 Full On/Off (Christie RealBlack enabled)
1200:1, ANSI 250:1 (nominal) Full On/Off (Christie RealBlack disabled)
Display
1DLP 0.67″ DMD
Resolution
WUXGA (1920 x 1200)
Illumination
Solid state (laser phosphor) with Christie BoldColor Technology
Lamp Life
20,000 hrs
Inputs
HDMI x 2
3GSDI x 1 (BNC)
DVI-D x 1 (digital only)
VGA (HD15 x 1)
USB x 1 (type B mini) – display over USB
USB x 1 (type A) – image viewer or WiFi dongle (optional)
HDBase?T x 1
Ethernet (RJ45 x 1)?
Signals
HDTV formats VGA through to WUXGA (1920 x 1200)?
Pixel clock
162MHz
?Scan rates
Horizontal: 15kHz to 91kHz
Vertical: 24Hz to 85Hz
?Monitor out
-3GSDI x 1 (BNC)
Networking
RS-232 in
Control via HDBaseT
Ethernet (10/100) RJ45 with ChristieNET connectivity
Built-in backlit keypad
Wired remote control (3.5mm stereo)
Loop out available for daisy chaining
?Standard accessories
IR remote with wired remote jack (wire not included)
AC line cord for projector head
Rear input/keypad panel cover
User manual?
Optional accessories
QwikRig Frame (140-128102-XX)
Christie One Mount Plus (140-117100-XX)
One Mount Extender Rod
One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod)
Wireless dongle
Lens mount
Tool-free lens insertion system
Boresight adjustable
Motorized horizontal and vertical lens offset
Motorized zoom and focus adjustment
Lens options
0.75-0.95:1 zoom lens G (140-119102-XX)
0.95-1.22:1 zoom lens G (140-101103-XX)
1.22-1.52:1 zoom lens HP G/GS (140-131106-XX)
1.52-2.?89:1 zoom lens G (140-102104-XX)
2.90-5.50:1 zoom lens G (140-107109-XX)
Offsets
+/- 100% vertical (+/- 600 px)
+/- 30% horizontal (+/- 288 px)
Dissipation
2796.2 BTU/hr 15% (220V)
2898.5 BTU/hr 15% (110V)?
Audible noise
35dB(A) standard mode
32dB(A) eco mode
Dimensions (L x W x H)
Physical: 22.2 x 19.2 x 7.6″ (555 x 480 x 190mm) without feet
Shipping: 30.4 x 24.1 x 14.9″ (759 x 599 x 373mm)
Weight
Physical: 52.4 lb (23.7 kg)
Shipping: 66.3 lb (30 kg)
Operating environment
Temperature: 0 to 40C (32 to 104F)
Humidity: 10 to 85% non-condensing
Regulatory
Contact Christie for timing of certifications: UL/CSA/IEC 60950-1
FCC Class A, CE, FDA, CCC, KC, EAC, PSE, EAC?, SABS, BIS, VCCI, RCM,UKR, TER, SASO
This product conforms to all relevant European directives, standards, safety, health and environmental concerns RoHS, REACH and WEEE.
Limited warranty
3 years parts and labor on the projector
3 years or 15,000 hours parts and labor on the illumination system*
Contact an authorized Christie representative for full details of our limited warranty
