Cloud Electronics BE-1AB Active Balanced Input Module For DCM-1 DCM-1e Black(Cloud Electronics Be 1ab Active Balanced Input Module For Dcm 1 Dcm 1e Black)

Cloud Electronics BE-1AB Active Balanced Input Module for DCM-1 DCM-1e Black

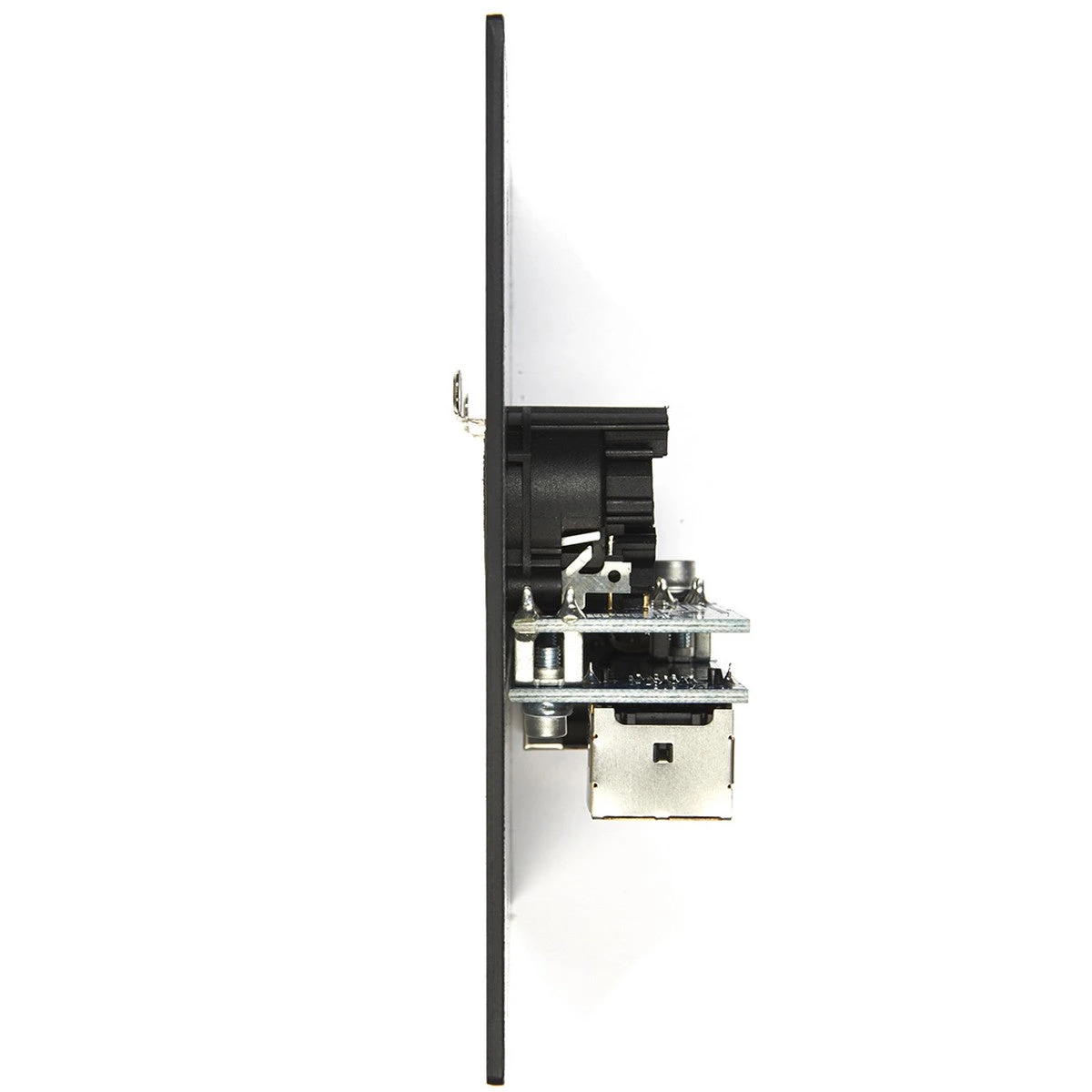

The BE-1 balanced input connector plate provides two balanced inputs for the Cloud DCM-1/DCM-1e Digital Control Zone Mixer. The BE-1 is used to provide local stereo balanced line-level inputs in a zone allowing professional audio equipment such as mixing consoles, DI boxes or broadcast equipment to be connected directly to the Cloud DCM-1/DCM-1e.

The BE-1 connects to one of four BE-1 / LE-1 RJ45 input ports on a Cloud DCM-1/DCM-1e via a single screened CAT-5 cable. A maximum of four BE-1 or LE-1 Line Input Modules can be daisy chained together per RJ45 input port on a Cloud DCM-1/DCM-1e.

Key Features

• Installing a BE-1 module in one of the DCM1’s zones provides the user with the ability to connect professional audio equipment such as mixing consoles, hard disk recorders, radio mic receivers, etc
• Inputs are via two standard female XLR sockets

Technical Specifications

Color
Black
Dimensions
Width: 4 1/2in
Height: 4 1/2in
Depth: 1 1/4in
