ColorKey CKU-1076 GrooveBar FX Moving Head LED Bar With RGBW Pixel Effects(Colorkey Cku 1076 Groovebar Fx Moving Head Led Bar With Rgbw Pixel Effects)

ColorKey CKU-1076 GrooveBar FX Moving Head LED Bar with RGBW Pixel Effects/h2>

Dynamic Lighting Fixture for Clubs, DJs, and Stage Performers

The ColorKey GrooveBar FX is a powerful, motion-enabled LED bar light designed for impactful stage and dancefloor illumination. With six independently controlled 20W RGBW LEDs and dual-zone RGB LED strips, it creates brilliant pixel chases and colorful sweeping effects. Its infinite head rotation and narrow 3.4° beam angle deliver high-intensity light bursts ideal for DJs, touring acts, or installations that demand energy and motion.

Compact yet performance-ready, the GrooveBar FX provides full DMX control, built-in macros, and sound-active modes for ultimate versatility. It’s engineered to suit a variety of applications, whether mounted on trusses, positioned on stage floors, or integrated into creative lighting rigs. With precise pan/tilt movement and a rugged design, it’s a feature-rich solution for bold visual displays.

Key Features

• LED Array: 6x 20W RGBW LEDs with independent pixel control
• RGB Strip Effects: Dual-zone LED strips with built-in macros and dimming
• Head Movement: Infinite rotation and 180° tilt for sweeping motion
• Control Modes: DMX512, Sound Active, Auto, Master-Slave
• Lighting Effects: 15 chase patterns, gradients, pulses, and more

Technical Specifications

• Beam Angle: 3.4° narrow beam for focused projection
• Strobe Rate: 0–20 Hz with linear dimming
• DMX Channels: 23 / 40 channel options
• Illuminance: 29,200 lux @ 2m
• Voltage: AC100–240V, 50/60 Hz
• Max Power Consumption: 150W
• Dimensions: 11.2″ x 6.9″ x 13.2″
• Weight: 10.8 lbs

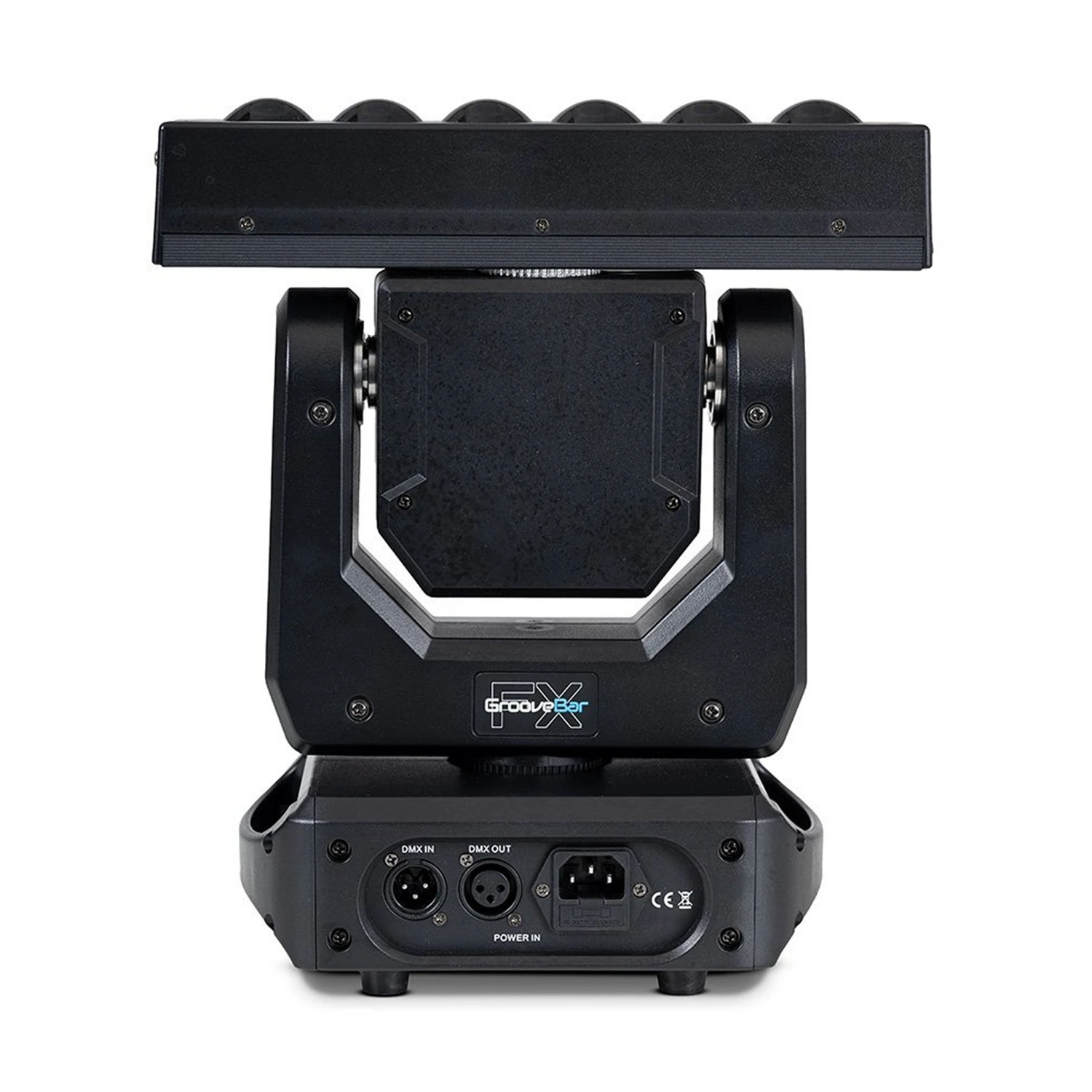

• Connectors: IEC power, 3-pin DMX in/out
