ColorKey Creator BX7 Wash Compact 230W LED Wash Moving Head(Colorkey Creator Bx7 Wash Compact 230w Led Wash Moving Head)

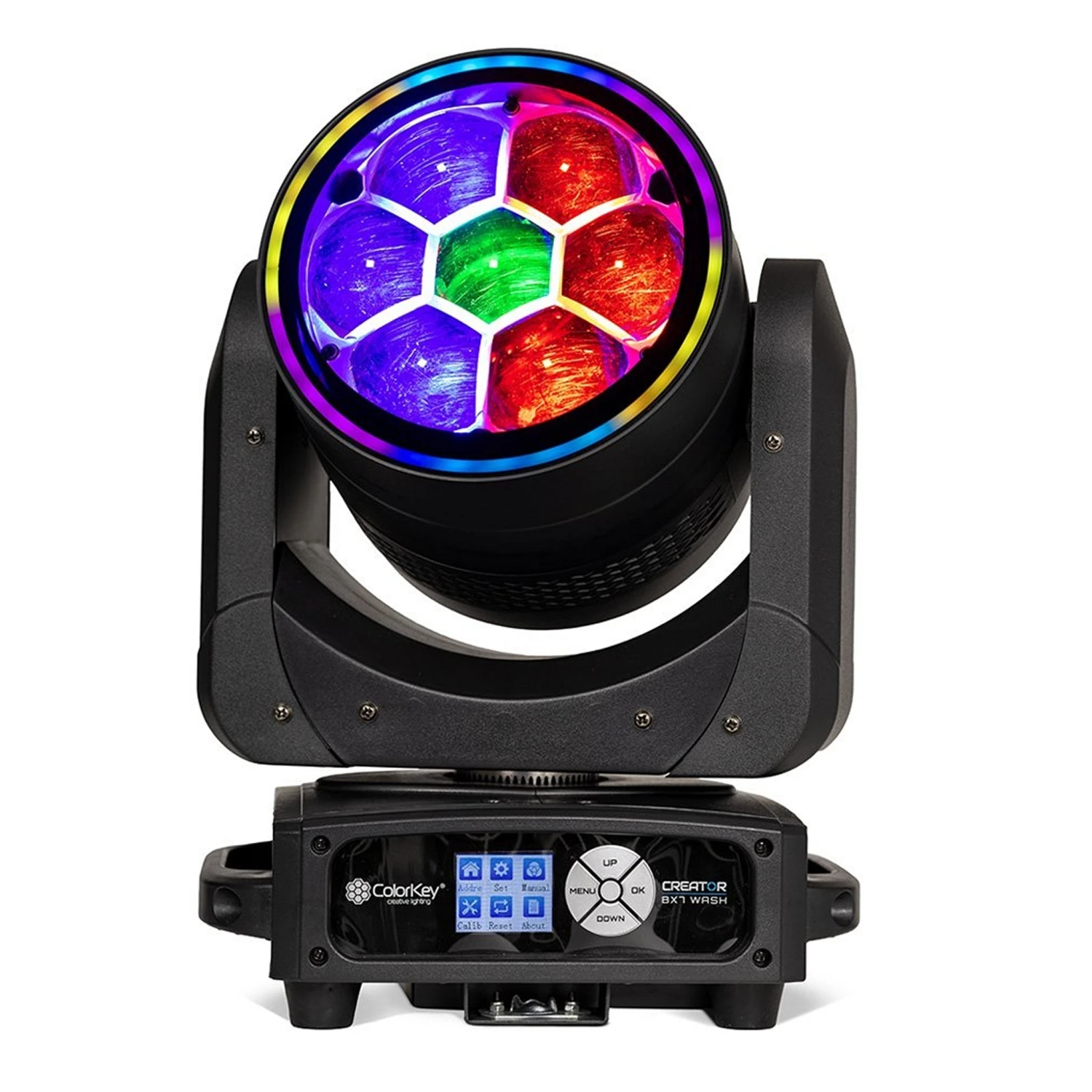

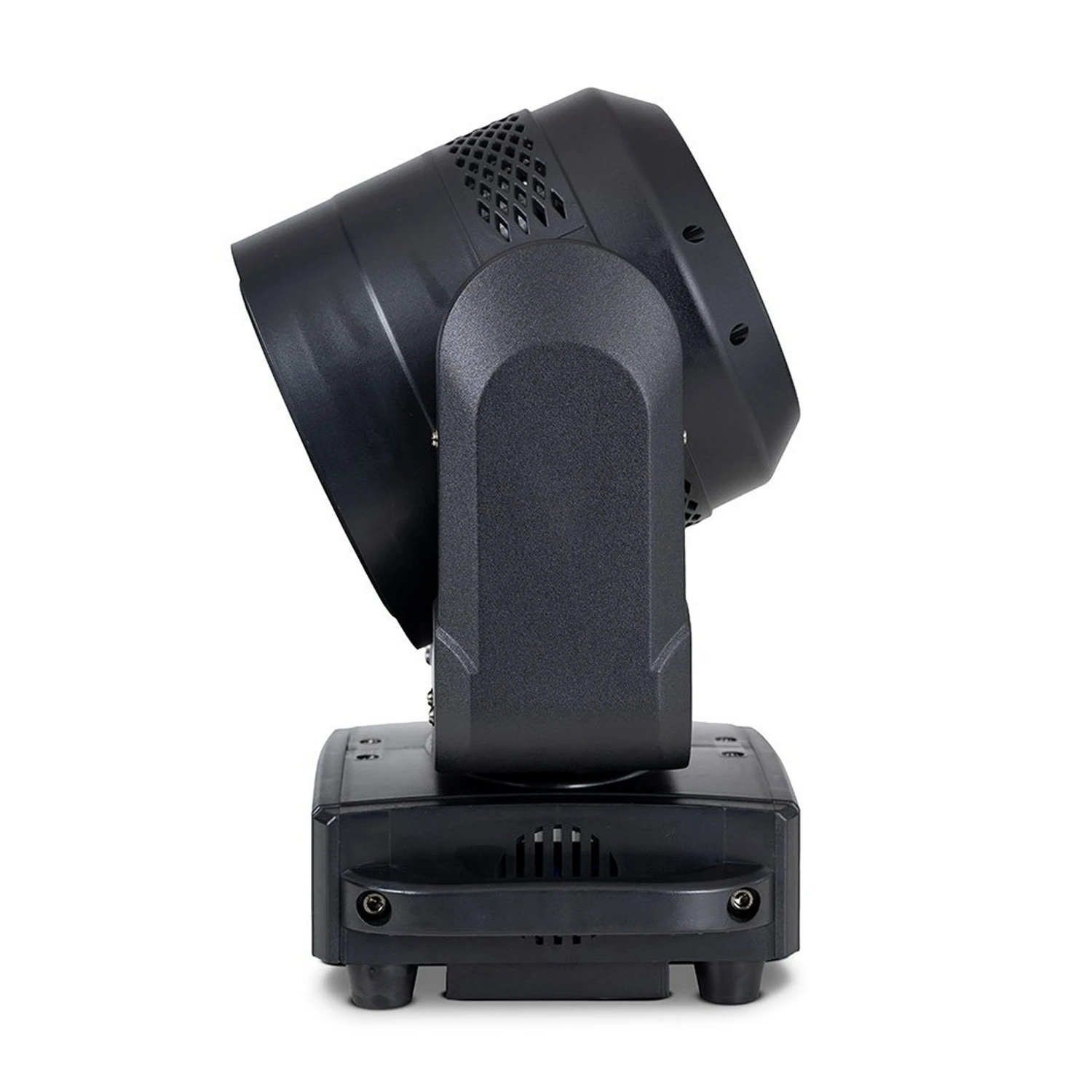

ColorKey Creator BX7 Wash Compact 230W LED Wash Moving Head

The ColorKey Creator BX7 Wash is a powerful and compact 230W LED moving head wash fixture designed to deliver vibrant color washes and smooth lighting transitions for professional stage and event productions. Featuring a powerful white LED combined with a multicolor RGBW LED halo, this fixture offers rich color mixing capabilities and dynamic lighting effects, ideal for concerts, theaters, and corporate events.

With motorized zoom and a beam angle range from 8° to 35°, the Creator BX7 Wash provides flexible coverage from tight beams to wide washes. The fixture includes a full-color LCD display for intuitive control and supports multiple operation modes including DMX512, master-slave, auto, and sound active. Its lightweight and durable design combined with quick-release mounting brackets make setup and teardown efficient for both touring and fixed installations.

Key Features

• 230W white LED moving head wash with RGBW halo effects
• Motorized zoom adjustable from 8° to 35° beam angle
• Rich color mixing with RGBW LED halo
• Compact and lightweight for easy transport and setup
• Full-color LCD display for simple navigation
• Multiple control modes: DMX512, master-slave, auto, sound active

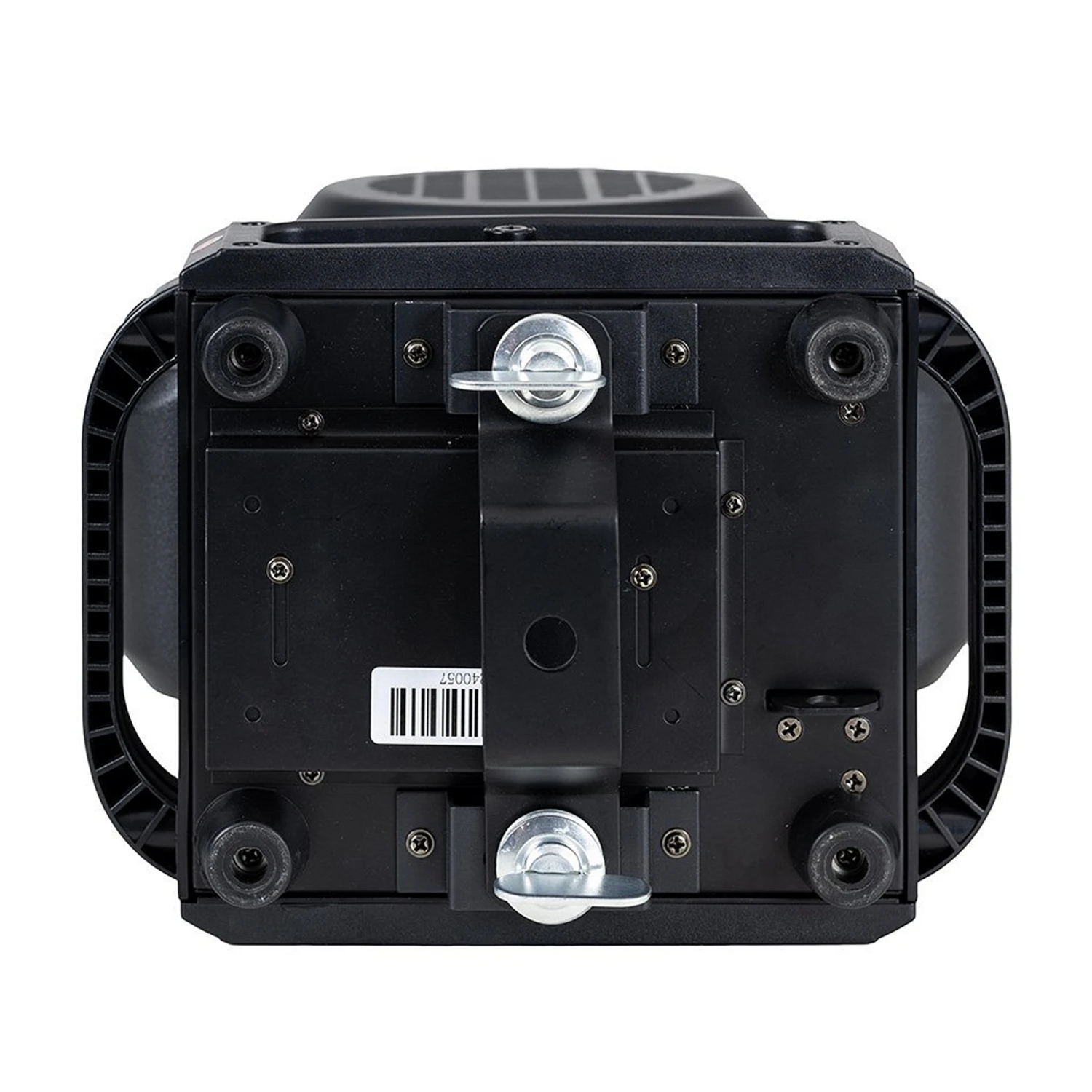

• Quick-release mounting bracket included

Technical Specifications

• Light Source: 230W White LED
• Halo LEDs: RGBW multicolor halo with dynamic effects
• Zoom Range: Motorized 8° to 35° beam angle
• Pan Range: 540°
• Tilt Range: 270°
• DMX Channels: 21 CH
• Control Modes: DMX512, master-slave, auto, sound active
• Display: 1.77-inch full-color LCD
• Power Connection: PowerCon in/out
• Dimensions: 13.4″ (L) x 10.6″ (W) x 7.9″ (H)
• Weight: 11.7 lbs
• Voltage: AC100-240V, 50/60 Hz

What’s in the Box

• Included: 1x Creator BX7 Wash fixture, 1x quick-release mounting bracket, power cable, user manual
