Connectronics CTX-SDI2SDI12G Dual-Link 6G-SDI/Quad-Link 3G-SDI to Single-Link 12G-SDI Converter

Introducing the Connectronics SDI2SDI12G: Your Solution to SDI Conversion
Need to convert Dual Link 6G-SDI or Quad Link 3G-SDI to 12G-SDI with multi-standard support? Look no further than the Connectronics SDI2SDI12G. Its all-metal construction and compact size make it the ideal choice for tight working spaces in various settings, including Rigs, Broadcast trucks, and Data Centers.

Key Features

• The Connectronics SDI2SDI12G is a converter that allows you to convert SDI to 12G SDI.

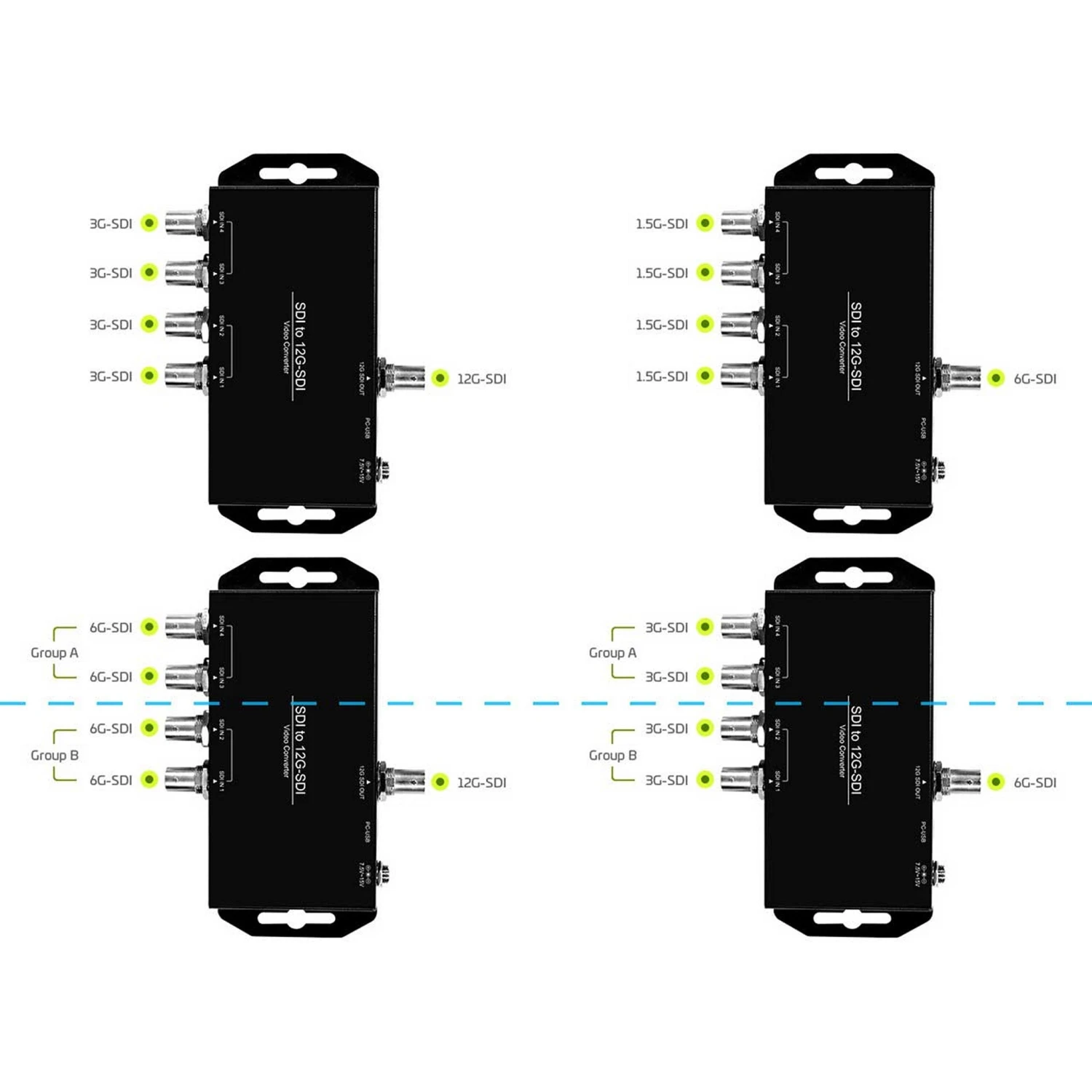

• It supports the conversion of Dual Link 6G-SDI or Quad Link 3G-SDI to 12G-SDI.
• The converter has multi-standard support, allowing it to work with different SDI standards.
• Its small form factor and all-metal construction make it suitable for use in tight spaces.
• It is commonly used in Rigs, Broadcast trucks, Data Centers, and other similar environments.
• It supports Quad-Link 2 Sample Interleave (2SI) input.
• It also supports Quad-Link 3G-SDI input.
• Additionally, it can handle Dual-Link 6G-SDI input.
• It provides support for multiple SDI standards, including 12G, 6G, 3G, HD, and SD-SDI.
• It offers 3G-SDI Level A/B Dual-Link/B-Dual stream support.

Technical Specifications

Input Interface Video
12G-SDIx1 6G-SDIx3
Output Interface
12G-SDI x1
Supported Video Input Format SDI
Dual-Link 6G-SDI / Quad-Link 3G-SDI
4096x2160p@60/50fps
3840x2160p@60/50fps
6G-SDI / Dual-Link 3G-SDI / Quad-Link HD-SDI
4096x2160p@30/25/24fps
3840x2160p@30/25/24fps
3G-SDI / Dual-Link HD-SDI
1920x1080p@60/50fps
HD-SDI
1920x1080p@30/25/24fps
1920x1080i@60/50fps
1280x720p@60/50fps
SD-SDI
720x480i@60fps
720x576i@50fps
Supported Video Output Format
SDI/12G-SDI: 4096x2160p@60/50fps 3840x2160p@60/50fps
Audio Input Format: SDI: 8 Channels, 24bit, 48KHz
Plug & Play: V
DC In: 7.5v to 15v
