Datavideo DAC-8PA SDI To HDMI Converter(Datavideo Dac 8pa Sdi To Hdmi Converter)

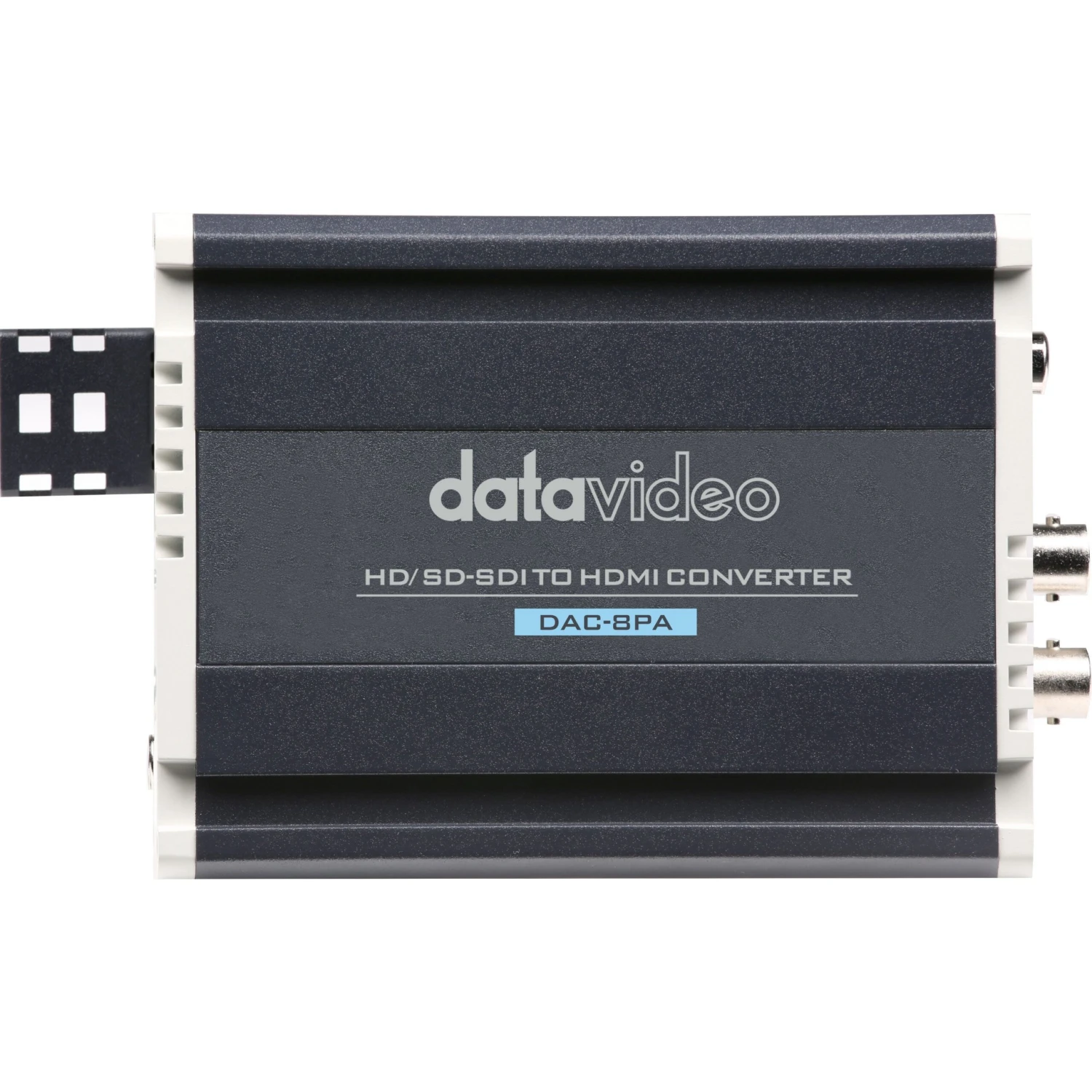

Datavideo DAC-8PA SDI to HDMI Converter

The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio to a stereo RCA output.

Supports 1080p 50/60
Automatic input signal and color depth detection with support for Deep Color

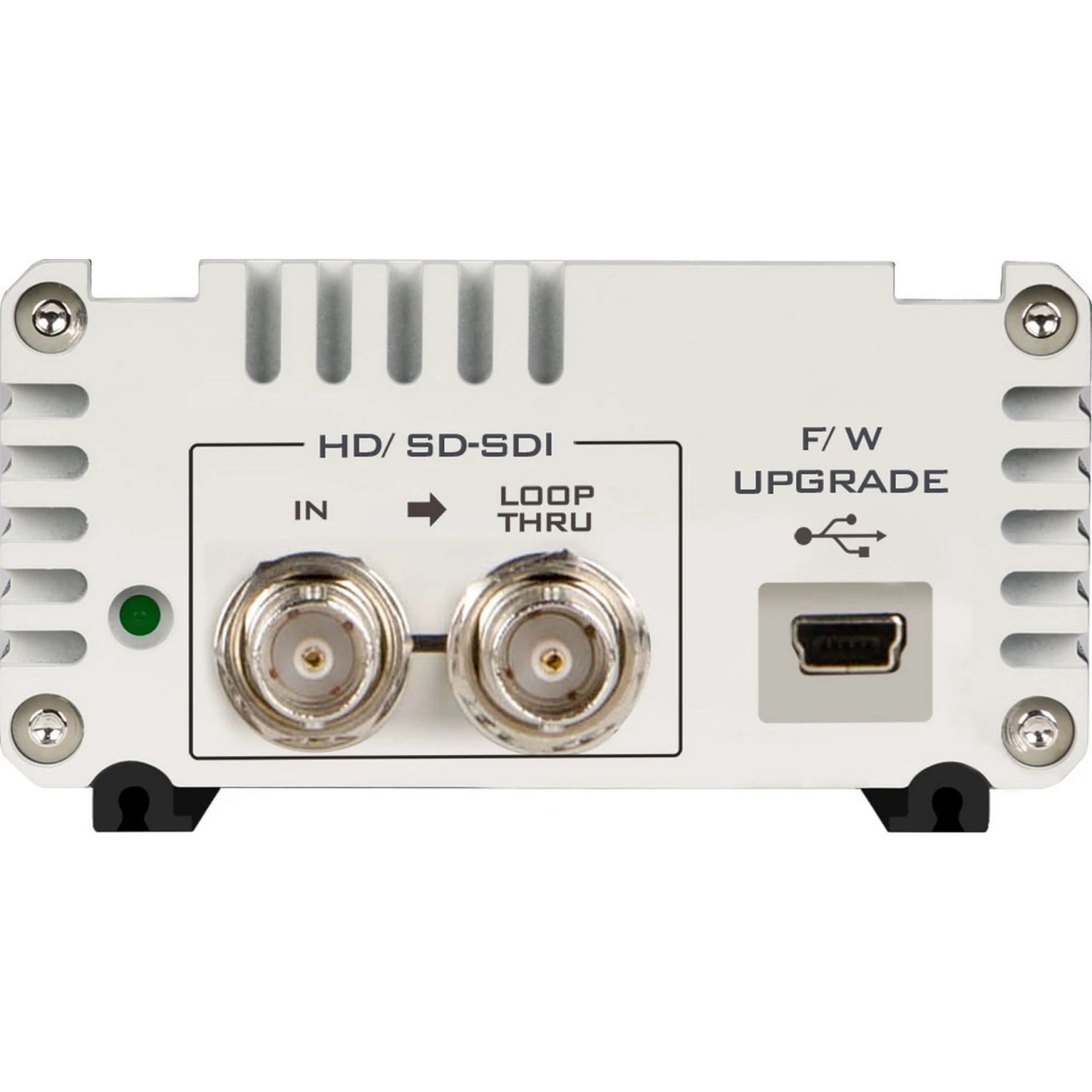

Supports SDI Loop-Through Output
Simultaneous SDI loop-through with HDMI output

Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Technical Specifications

Conversion
3G/ HD/SD-SDI to HDMI
Video Inputs
1x 3G/HD/SD-SDI
Loop Through
1

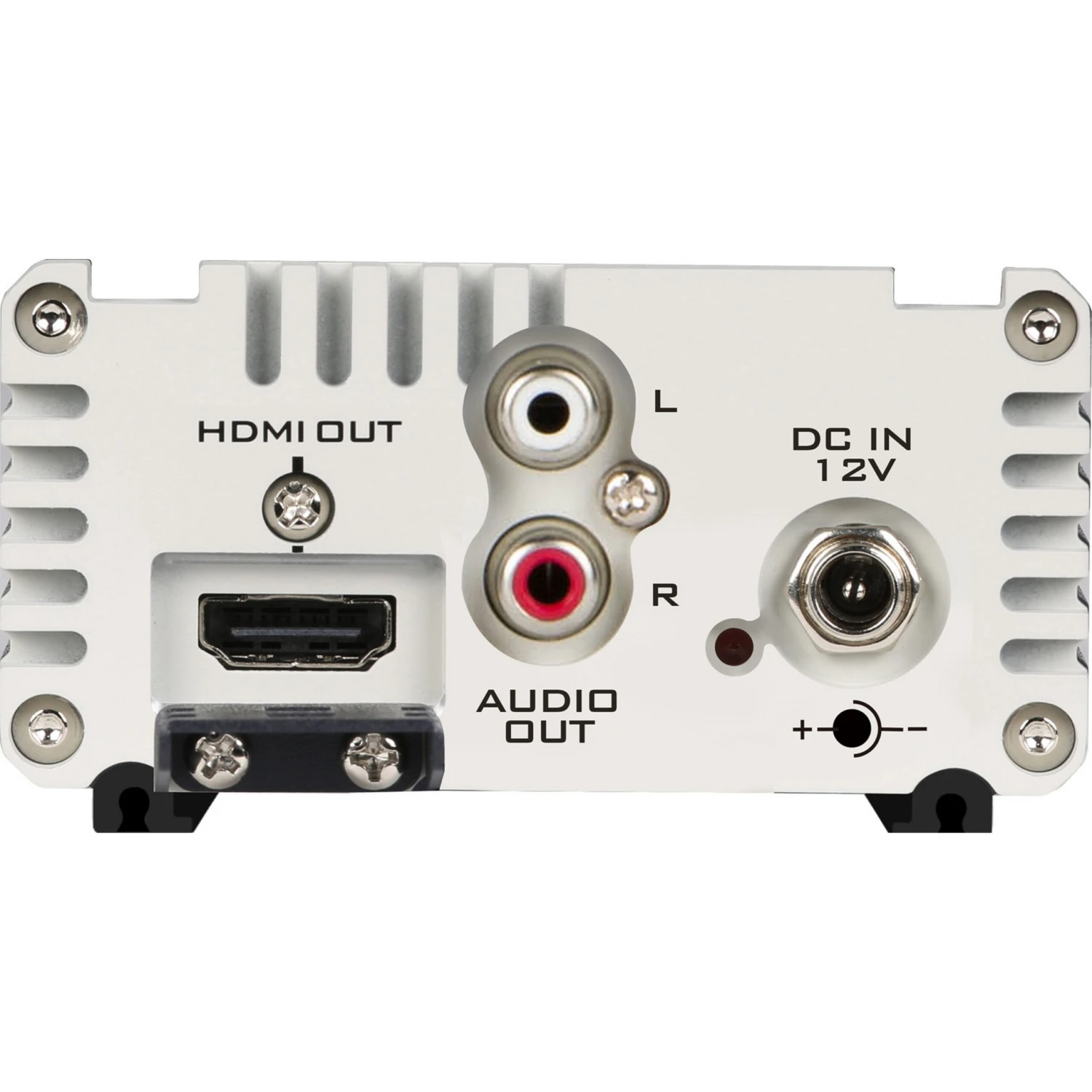

Video Outputs
1x HDMI
with embedded Audio
Audio Inputs
2x SDI Audio embedded
Audio Outputs
2x RCA (Stereo Pair)
2x HDMI Audio embedded
Supported Video Input Formats
1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz),
720p (50/59.94/60Hz),
625i 50 (PAL), 525i 59.94 (NTSC)
Output Resolutions
Automatically matches the SD, HD and 3G SDI video input
Equalizer
Yes
Reclock
Yes
SDI Cable Drive
Yes
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.4 kg
Operating Temp. Range
0~40 C
Power
DC 12V, 4W
What’s in the Box
1 x DAC-8PA product
1 x AD Switch DC 12V
1 x Thank You Card
