Digigram BOB12 Breakout Box For Sound Cards(Digigram Bob12 Breakout Box For Sound Cards)

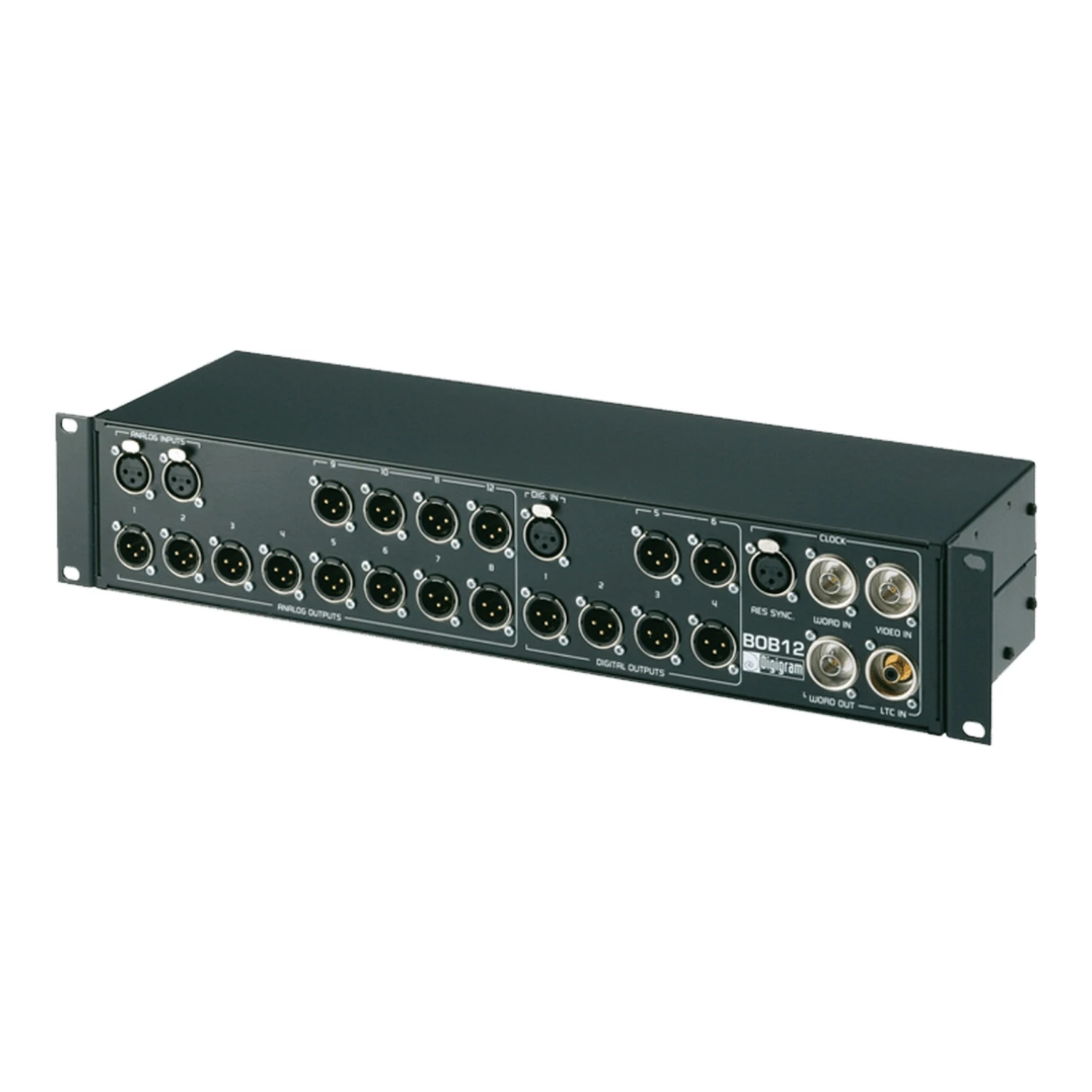

Digigram BOB12 Breakout Box for Sound Cards

BOB12 is an elegant, safe, and ergonomic solution to connect audio input and output signals to Digigram’s multichannel sound cards via a sturdy 2U 19” rack.

BOB12 is the perfect match for the Digigram’s twelve channel sound cards. It can be used with the following cards:
VX1222HR, VX1221HR, VX12222e, VX1221e
PCX1222HR, PCX1221HR, PCX1222e, PCX1221e

Key Features

• 2U 16’’ rack (440 x 88 x 150 mm (Width x height x depth)
• weight: ~2.60 kg (~5.75 lbs)
• 2 balanced analog inputs + 12 balanced analog outputs on XLR
• 1 stereo AES/EBU input + 6 stereo AES/EBU outputs on XLR
• 1 AES synchronization input on XLR
• 1 Wordclock synchronization input and output on BNC connectors
• 1 Video reference input on BNC connector
• 1 LTC input on RCA connector
• Rugged mechanical design & high-quality Neutrik connectors
• Digigram design, tested against EMC requirements
• Four mounting configurations: rack front end, rack back end, under a table, top of a table
• Compatible with the following sound cards
  – VX1222HR, VX1221HR, VX12222e, VX1221e
  – PCX1222HR, PCX1221HR, PCX1222e, PCX1221e
• Optional label carrier sets
