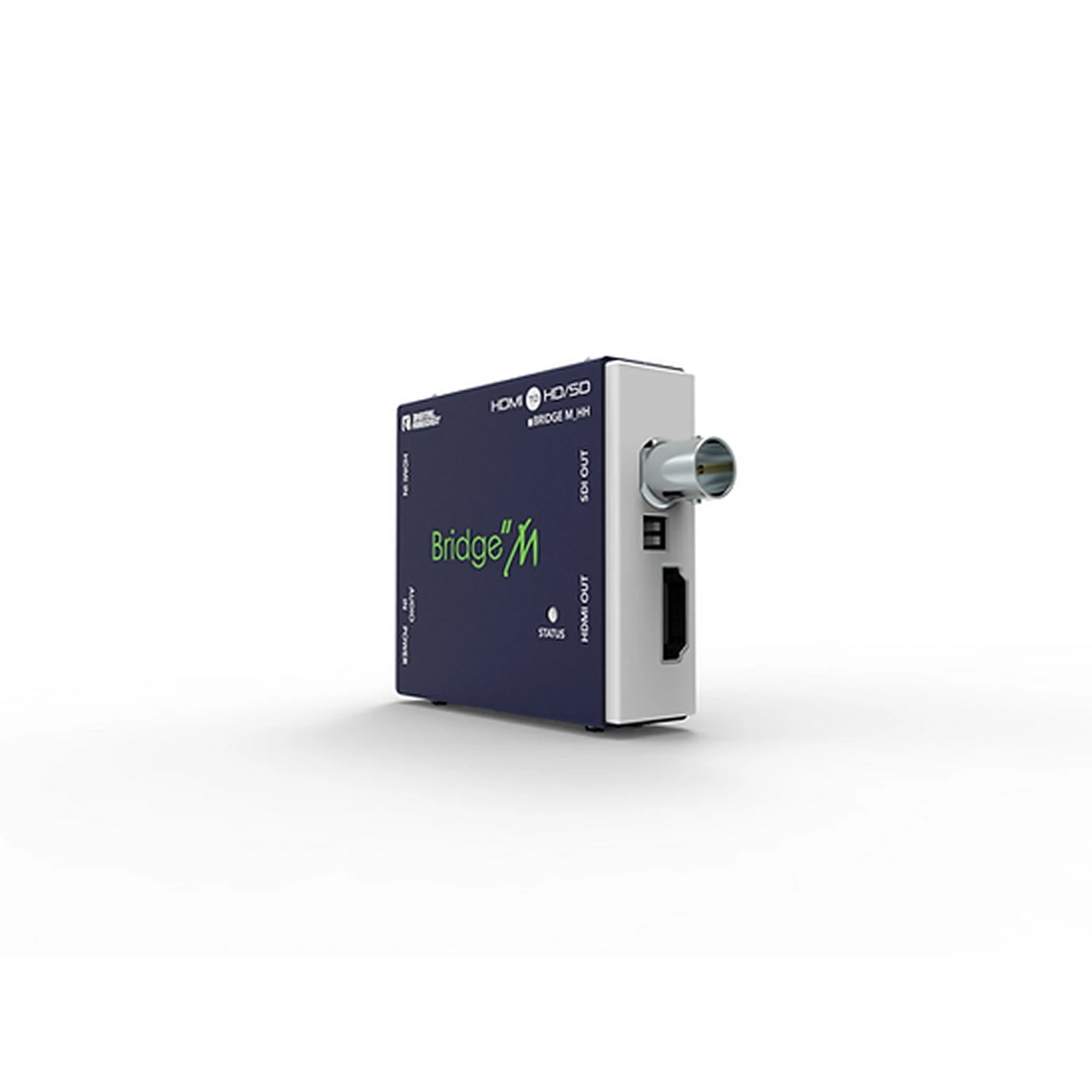

Digital Forecast Bridge M_HH HDMI To HD/SD Signal Converter(Digital Forecast Bridge M_hh Hdmi To Hd Sd Signal Converter)

Digital Forecast Bridge M_HH HDMI to HD/SD Signal Converter

Bridge M_HH is the equipment that will convert the HDMI signal an SDI signal of SMPTE standards. It can support the format of up to 1080p60 and Mux the audio signal of external Analog L / R. In addition, it is also possible to fix the output in a specific format. (Scaler built-in)

Key Features

• HDMI to SDI converter with monitoring HDMI out
• Small and High end Function inside High video processing engine.
• Selectable Mux Audio source between Embedded
• HDMI and Analog L/R
• Normal Bypass mode or fixed Scan converter mode for standard
• 1080i50/1080i59.94 broadcast format
• 1 HDMI input ( SD/HD/3G all standard format )
• 1 L/R stereo Audio input (stereo audio jack )
• 1 HDMI out ( SD/HD/3G all standard format )
• 1 HD-SDI out ( SD/HD/3G all standard format )
• DC 5V ~ 24V wide operating range

Technical Specifications

Digital Video Specs.
Supports HDMI v1.3
Supports multi-rate SDI formats
SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
SMPTE 296M: 720p (60/59.94/50)
SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)
SMPTE-424M: 1080p (60/59.94) 3G
Physical
Dimension (W x H x D): 68 x 59.2 x 20 (mm)
Weight: 95g
Power Level +12 VDC
Power Consumption: 4.37Watts (Max: 5Watts)
Operating Temperature: -20 ~ 70
Humidity: 0 to 95% RH, non-condensing
