DigitaLinx DL-HD2USB-CAP TeamUp+ Series HDMI To USB Capture Device With Loop Out(Digitalinx Dl Hd2usb Cap Teamup Series Hdmi To Usb Capture Device With Loop Out)

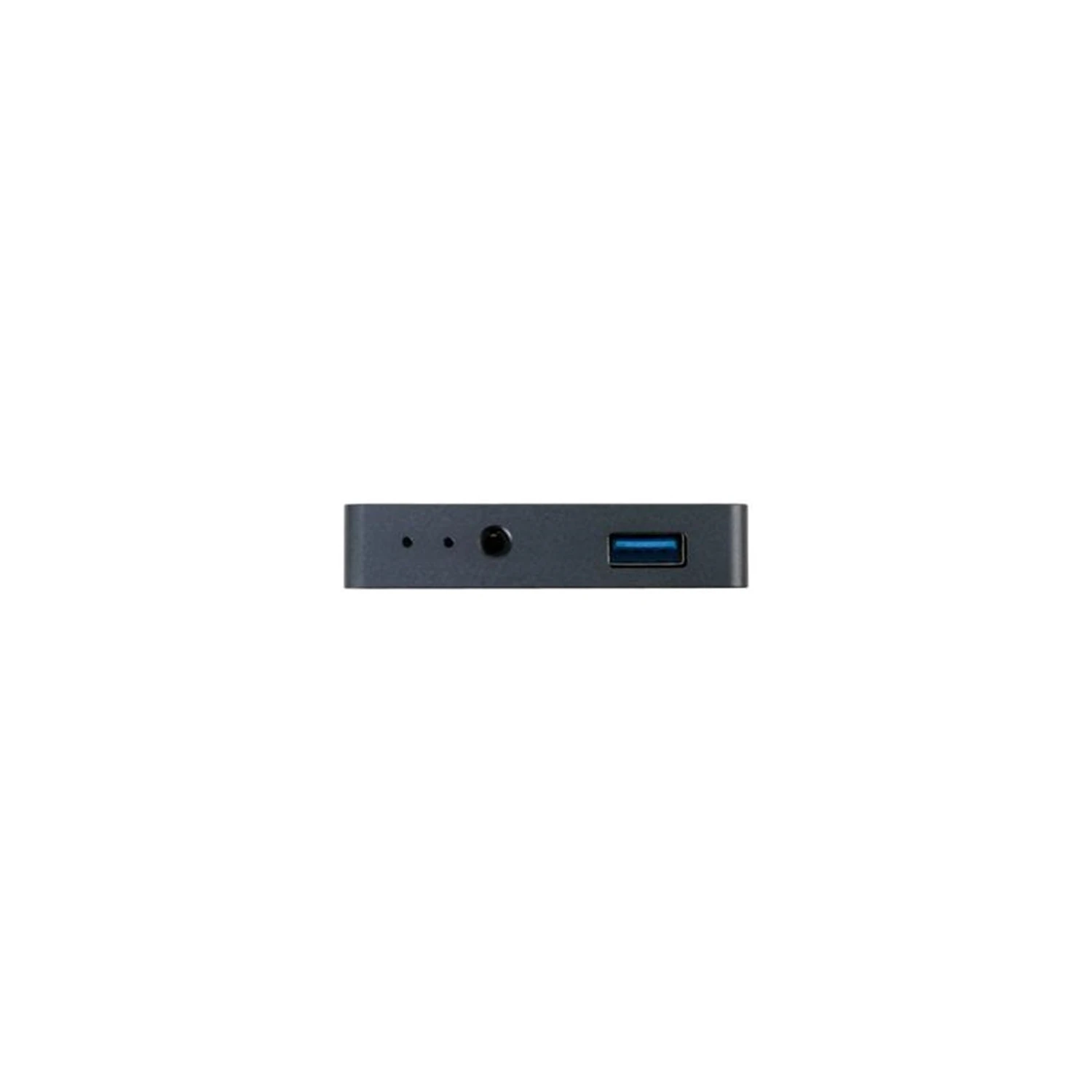

DigitaLinx DL-HD2USB-CAP TeamUp+ Series HDMI to USB Capture Device with Loop Out

The Liberty DL-HD2USB-CAP is a commercial grade, USB capture device designed to record uncompressed video and audio from an HDMI source such as a camera or media player, all while connected directly to a computer.

Being 100% USB compliant, the device is ideal to use with any HDMI-equipped camera, switcher, or other media equipment, and being 100% USB compliant, its plug-n-play design requires no drivers or downloads to install. Stream from an HDMI source directly to YouTube, Facebook, or your favorite video conferencing software platforms such as (Teams, Zoom, Workplace, and many others. In addition, Liberty’s capture device supports mixed audio from an audio line input and HDMI audio stream, along with extracting audio from the HDMI source.

Capture HDMI video signals in Full HD (1080p60) through your system’s USB 3.0 port with an optional HDMI loop out that supports resolutions up to 4K @60Hz. an optional HDMI loop-out that supports resolutions up to 4K @60Hz.

Key Features

• Capture HDMI Signals: Using USB 3.0 technology, capture audio and video from an HDMI signal, recording up to 1080p @60Hz.
• Supporting the latest HDMI technologies
• 4K HDMI Loop Output: Perfect for connecting to an existing system connection or route to a preview monitor without needing a distribution amplifier.
• Video Recording: with H.264 software compression. Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG). Compatible with USB Video Class (UVC 1.0). Low latency
• Power: Bus Powered through USB 3.0 (USB 3.2, Gen 1) interface to computer
• Video Capture Resolutions: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p).
• Video Loop Output Resolutions: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p). 3840 x 2160(30/60p)
• Audio Input: Mixed audio from either the HDMI input and/or TRRS microphone will route to the USB output. The TRRS microphone can be used without HDMI being connected to the device.
• Audio Outputs: HDMI, USB, and the TRRS port. Audio from the Microphone input will not route to the HDMI output nor to the TRRS line output, just to USB. Compliance: Gen USB 3.x while being fully backward compatible with USB 2.0
• Capture/Streaming Software: Compatible with most 3rd party software such as AMCap, OBS Studio (windows, OS X); Windows Media Encoder (Windows); Adobe Flash Media Live -Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows, OS X); vMix(Windows); Potplayer(Windows)
• Package includes: Capture device, USB 3.0 cable, and User manual
• Complete Plug and Play: NO additional driver or software is required to be recognized by the computer
