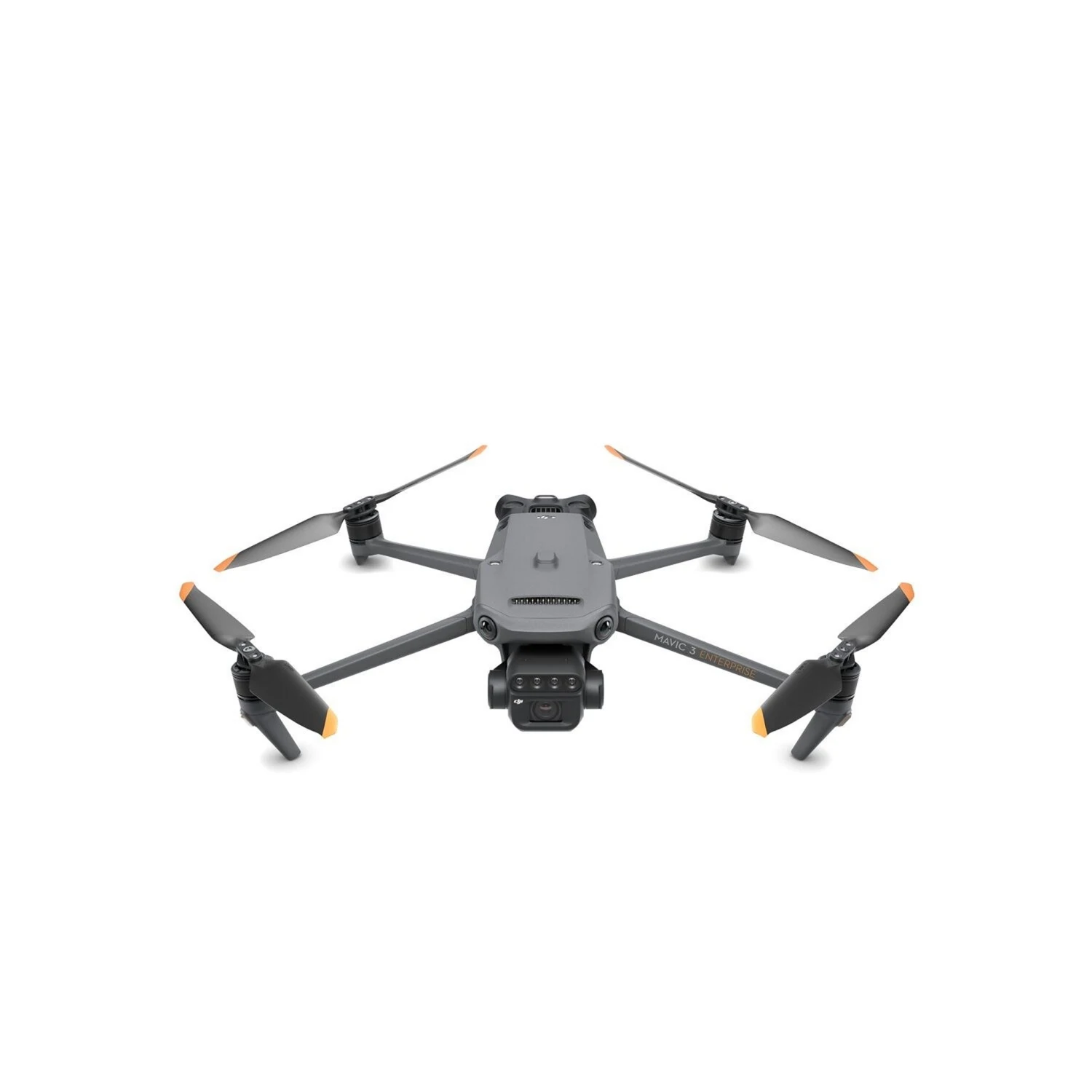

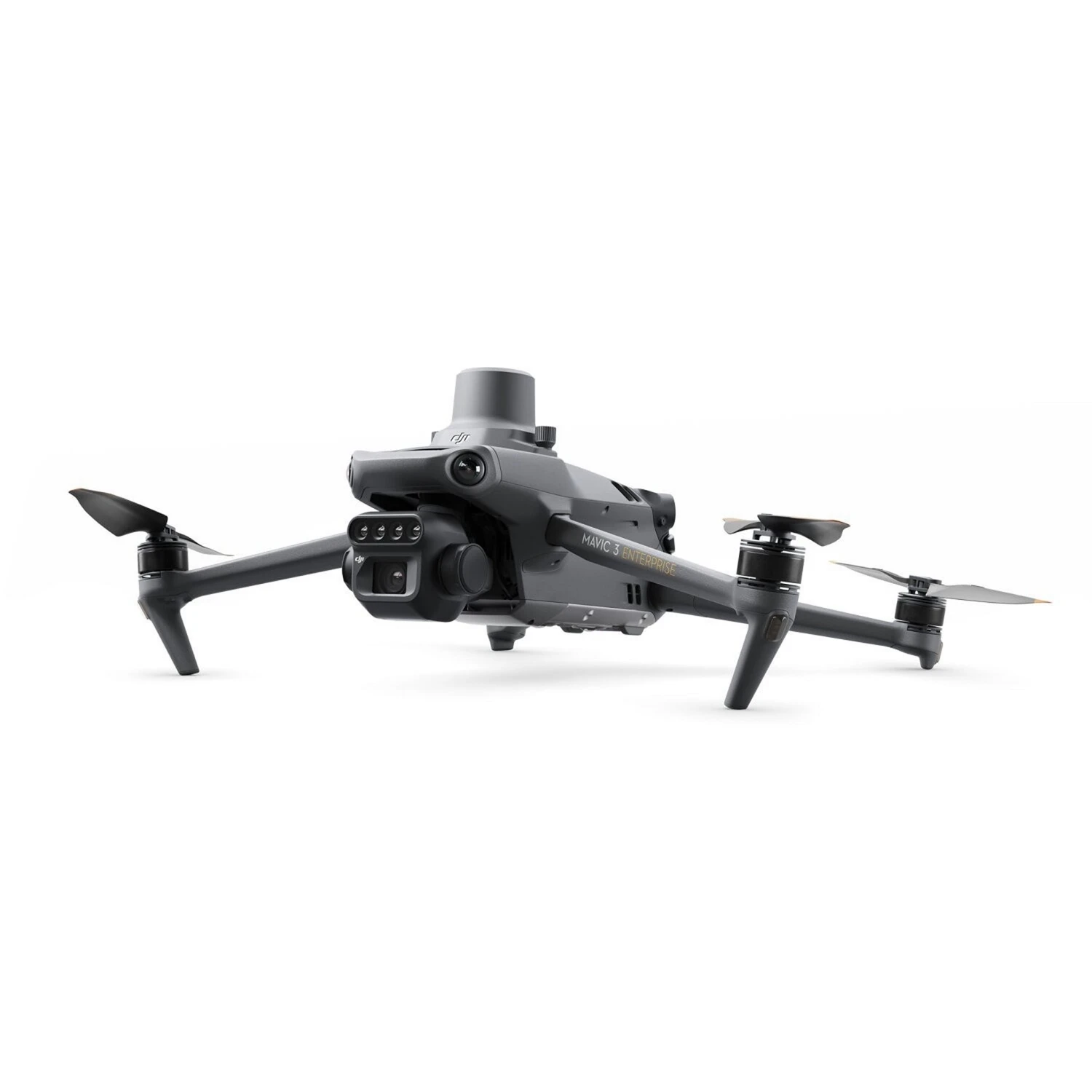

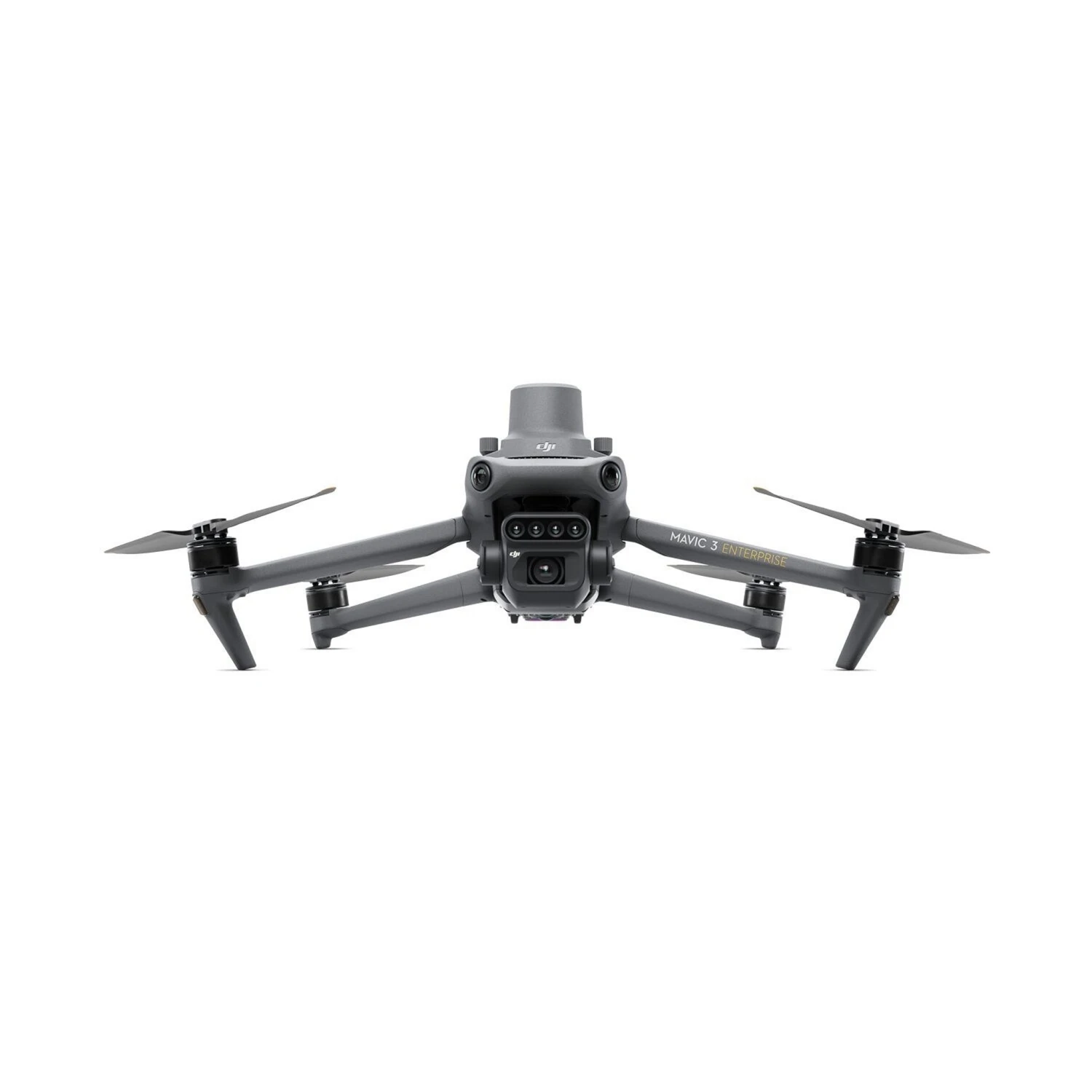

DJI Mavic 3 MultiSpectral NA SP Shield Plus Drone

Effective aerial surveying needs to see the invisible. That’s why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both.

Compact and portable
Foldable for easy storage

Multispectral Camera
4 × 5MP
G/R/RE/NIR

RGB camera
20 MP
4/3 CMOS, mechanical shutter

Safe and stable
Omnidirectional Obstacle Avoidance
15km Transmission Distance

Precise positioning
Centimeter-level RTK positioning
Microsecond-level time synchronization

Efficient aerial surveying
Up to 200 hectares per flight

Highly integrated imaging system
Newly upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras (green, red, red edge, and near infrared). Enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.

Accurate images that capture every pixel

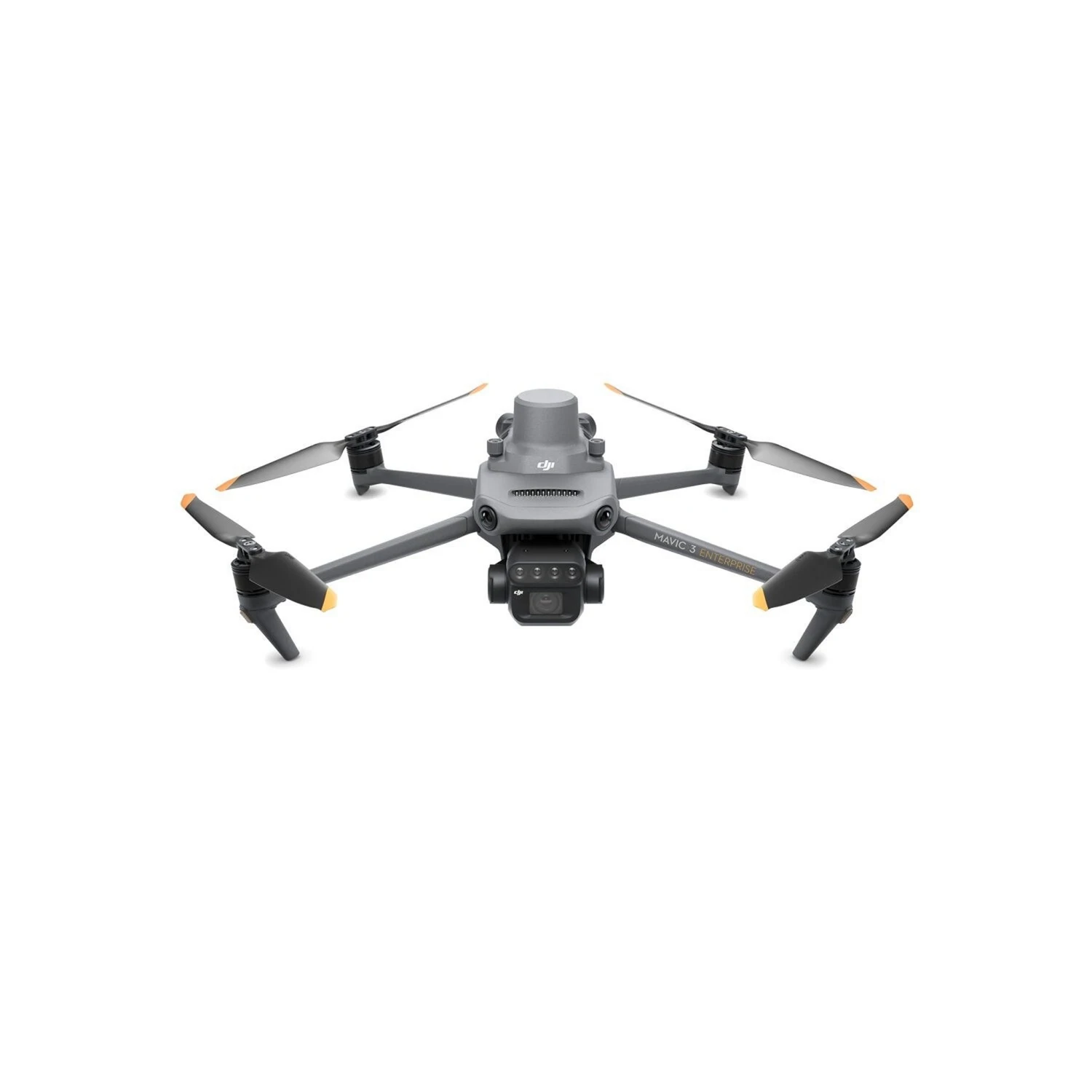

Mavic 3M with RTK module for centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera’s imaging center. This enables Mavic 3M to do high-precision aerial surveying without using ground control points.

Efficient and reliable battery life
Ultra-long battery life, fast bursts

43 minutes
Cruise time

200 hectare
A single flight can complete mapping operations over an area of 200 hectares.

Fast charging

100W Battery Charging Hub
High-efficiency fast charging

88W fast charging
Aircraft

Stable signal, smooth image transmission
The O3 transmission integrates two transmitting signals and four receiving signals to support 15km ultra-long transmission distances.

Omnidirectional obstacle sensing, terrain-follow aerial surveying
The aircraft features multiple wide-FOV vision sensors that accurately detect obstacles in all directions for omnidirectional obstacle avoidance. The terrain-follow aerial surveying can be easily performed in steep-slope landscapes.

Applications
Orchard mapping
Mavic 3M allows terrain-follow aerial surveying of orchards, even on sloped landscapes. Together with DJI Terra or DJI SmartFarm Platform <6> to reconstruct high-resolution orchard maps, automatically identify the number of trees, distinguish trees from other obstacles or objects, and generate three-dimensional operation routes for agricultural drones, making operations safer and more efficient.

Guide variable rate applications
For rice fertilization, cotton growth regulation, and potato foliar fertilizer spraying, the Mavic 3M is used to obtain multi-spectral images of crops. DJI Terra or the DJI SmartFarm Platform can then generate NDVI and other vegetation indices maps, capturing differences in crop potential and generating prescription maps that allow agricultural drones to execute variable-rate application. This ultimately allows users to reduce costs, increase yield, and protect the environment.

Intelligent field scouting
The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Platform <6> in real time through a 4G network. It can find abnormalities, such as emergence deficiencies, weed pressure, and crop lodging in a timely manner. It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, using AI identification for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.

Environmental Monitoring and Natural Resources Survey
The Mavic 3M can also be used in environment and natural resource surveys, such as water enrichment monitoring, forest distribution surveys, urban green area surveys, and more.

Technical Specifications

Aircraft
Net Weight (with propellers and RTK module) <1>
951 g
Max Takeoff Weight
1,050 g
Dimensions (Folded/Unfolded)
Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height)
Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)
Diagonal Length
Diagonal: 380.1 mm
Max Ascent Speed
6 m/s (Normal Mode)
8 m/s (Sport Mode)
Max Descent Speed
6 m/s (Normal Mode)
6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)
15 m/s (Normal Mode)
Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode) <2>
Max Wind Speed Resistance
12 m/s <3>
Max Take-off Altitude Above Sea Level
6000 m (without a payload)
Max Flight Time (without wind)
43 minutes <4>
Max Hover Time (without wind)
37 minutes <4>
Max Flight Distance
32 km <6>
Max Pitch Angle
30° (Normal Mode)
35° (Sport Mode)
Max Angular Velocity
200°/s
GNSS
GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)
Hovering Accuracy Range
Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled)
Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled)
Operating Temperature
-10° to 40° C (14° to 104° F)
Internal Storage
N/A
Motor Model Number
2008
Propeller Model Number
9453F Enterprise Edition
Light Sensor
Built-in module

RGB Camera
Image Sensor
4/3 CMOS
Effective Pixels: 20 MP
Lens
FOV: 84°
Equivalent focal length: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞
ISO Range
100-6400
Shutter speed
Electronic shutter: 8-1/8000 s
Mechanical shutter: 8-1/2000 s
Max Image Size
5280×3956
Photo Shooting Mode
Single shot: 20 MP
Timelapse: 20 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 3/5/7/10/15/20/30/60 s
Panorama: 20 MP (original material)
Video Resolution
H.264:
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
Max Video Bitrate
4K: 130Mbps
FHD: 70Mbps
Supported File System
exFAT
Image Format
JPEG/DNG (RAW)
Video Format
MP4 (MPEG-4 AVC/H.264)

Multispectral Camera
Image Sensor
1/2.8-inch CMOS, effective pixels: 5 MP
Lens
FOV: 73.91° (61.2° x 48.10°)
Equivalent focal length: 25 mm
Aperture: f/2.0
Focus: Fixed Focus
Multispectral Camera Band
Green (G): 560 ± 16 nm;
Red (R): 650 ± 16 nm;
Red Edge (RE): 730 ± 16 nm;
Near infrared (NIR): 860 ± 26 nm;
Gain Range
1x-32x
Shutter Speed
Electronic Shutter: 1/30~1/12800 s
Max Image Size
2592×1944
Image Format
TIFF
Video Format
MP4 (MPEG-4 AVC/H.264)
Photo Shooting Mode
Single shot: 5 MP
Timelapse: 5 MP
TIFF: 2/3/5/7/10/15/20/30/60 s
Video Resolution
H.264
FHD: 1920 x 1080@30fps
Video content: NDVI/GNDVI/NDRE
Max Video Bitrate
Stream: 60 Mbps

Gimbal
Stabilization System
3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range
Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -27° to 27°
Controllable Range
Tilt: -90° to 35°
Pan: Uncontrollable
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.007°

Sensing System
Sensing System Type
Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
Forward
Distance Measuring Range: 0.5 m to 20 m
Detection Range: 0.5 m to 200 m
Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, vertical 103°
Backward
Distance Measuring Range: 0.5 m to 16 m
Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s
FOV: Horizontal 90°, vertical 103°
Lateral
Distance Measuring Range: 0.5 m to 25 m
Effective Obstacle Avoidance Speed: Flight speed ≤15 m/s
FOV: Horizontal 90°, vertical 85°
Upward
Distance Measuring Range: 0.2 m to 10 m
Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s
FOV: Front and rear 100°, left and right 90°
Downward
Distance Measuring Range: 0.3 m to 18 m
Effective Obstacle Avoidance Speed: Flight speed ≤6 m/s
FOV: Front and rear 130°, left and right 160°
Operating Environment
Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.); Adequate lighting (>15 lux, environments with normal indoor fluorescent light exposure)

Video Transmission
Video Transmission System
DJI O3 Image Transmission Industry Edition
Live View Quality
Remote Controller: 1080p/30fps
Operating Band <7>
2.400-2.4835 GHz
5.725-5.850 GHz
Max Effective Signal Distance (Unobstructed, No interference) <8>
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Max Transmission Distance (Obstructed) <9>
Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed
15 MB/s (with DJI RC Pro Industry Edition)
Latency (depending on environment and mobile device)
Approximately 200 milliseconds
Antennas
4 antennas, 2 transmitting and 4 receiving
Transmitter Power (EIRP)
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Other
Supports the DJI Cellular module

DJI RC Pro Enterprise Edition
Image Transmission System
DJI O3 Image Transmission Industry Edition
Max Effective Signal Distance (Unobstructed, No interference) <8>
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Operating Band of Image Transmission <7>
2.400-2.4835 GHz
5.725-5.850 GHz
Antennas
4 antennas, 2 transmitting and 4 receiving
Operating Band of Image Transmission and Transmitter Power (EIRP)
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Wi-Fi Protocol
802.11 a/b/g/n/ac/ax
Support 2×2 MIMO Wi-Fi
Wi-Fi Operating Band <7>
2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Wi-Fi Operating Band and Transmitter Power (EIRP)
2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)
Bluetooth Protocol
Bluetooth 5.1
Bluetooth Operating Band
2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)
<10 dBm
Screen Resolution
1920×1080
Screen Size
5.5 inches
Screen Frame Rate
60 fps
Screen Brightness
1,000 nits
Touch-Screen
10-point multi-touch
Battery
Lithium-ion battery (5000 mAh, 7.2 V)
Charging Type
100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended
Rated Power
12 Watts
Storage Capacity
Internal Memory (ROM): 64 GB
Supports microSD card usage to increase storage capacity
Charging Time
Approx. 1.5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger)
Approximately 2 hours (measured using a 12V USB charger)
Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)
Operating Time
Approx. 3 hours
Video Output Port
Mini-HDMI Port
Operating Temperature
-10° to 40° C (14° to 104°F)
Storage Temperature Range
<1 month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature
5° to 40° C (41° to 104° F)
Supported DJI Aircraft <10>
DJI Mavic 3E
DJI Mavic 3T
DJI Mavic 3M
GNSS
GPS + Galileo + GLONASS
Dimensions
Antenna is folded and no control sticks are installed:
183.27×137.41×47.6 mm (Length×Width×Height)
Antenna unfolded and control sticks are installed:
183.27×203.35×59.84 mm (Length×Width×Height)
Weight
Approx. 680 g
Model Number
RM510B

Storage
Supported microSD Cards
Aircraft:
Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list
Recommended microSD Cards
Remote Controller:
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO Plus 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC

Aircraft:
SanDisk Extreme 32GB V30 A1 microSDHC
SanDisk Extreme PRO 32GB V30 A1 microSDHC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 1066x 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V90 A1 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC
Kingston Canvas React Plus 256GB V90 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC

Battery
Capacity
5000 mAh
Standard Voltage
15.4 V
Max Charging Voltage
17.6 V
Battery Type
LiPo 4S
Chemical System
Lithium Cobalt
Energy
77 watt-hours
Weight
335.5 g
Charging Temperature
5° to 40° C (41° to 104° F)

Battery Charger
Input
100V to 240V (AC), 50Hz to 60Hz, 2.5A
Output Power
100 Watts
Output
Maximum output power of 100 Watts (total)
When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power.

Charging Hub
Input
USB-C: 5V to 20V, 5.0A
Output
Battery Port: 12V to 17.6V, 8.0A
Rated Power
100 Watts
Charging Type
3 batteries on charging rotation
Charging Temperature
5° to 40° C (41° to 104° F)

RTK Module
Dimensions
50.2×40.2×66.2 mm (Length×Width×Height)
Weight
24±2 g
Interface
USB-C
Power
Approximately 1.2 watts
RTK Position Accuracy
Fixed RTK:
Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm

Footnotes
1. Standard weight of the aircraft (including battery, propellers, and microSD card). The actual product weight may vary due to differences in batch materials and external factors. Use for reference only.
2. The max speed in the EU cannot exceed 19 m/s.
3. Max wind resistance during takeoff and landing.
4. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
5. Data measured using the DJI Mavic 3M in a wind-free environment hovering over the sea level until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
6. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at 57.6 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
7. In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
8. Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication range for one-way, non-Return to Home flights under each standard. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
9. Data measured in an unobstructed environment with typical interference under various standards. The actual flight distance may vary and is for reference only.
10. The DJI RC Plus will support more DJI aircraft in the future.
