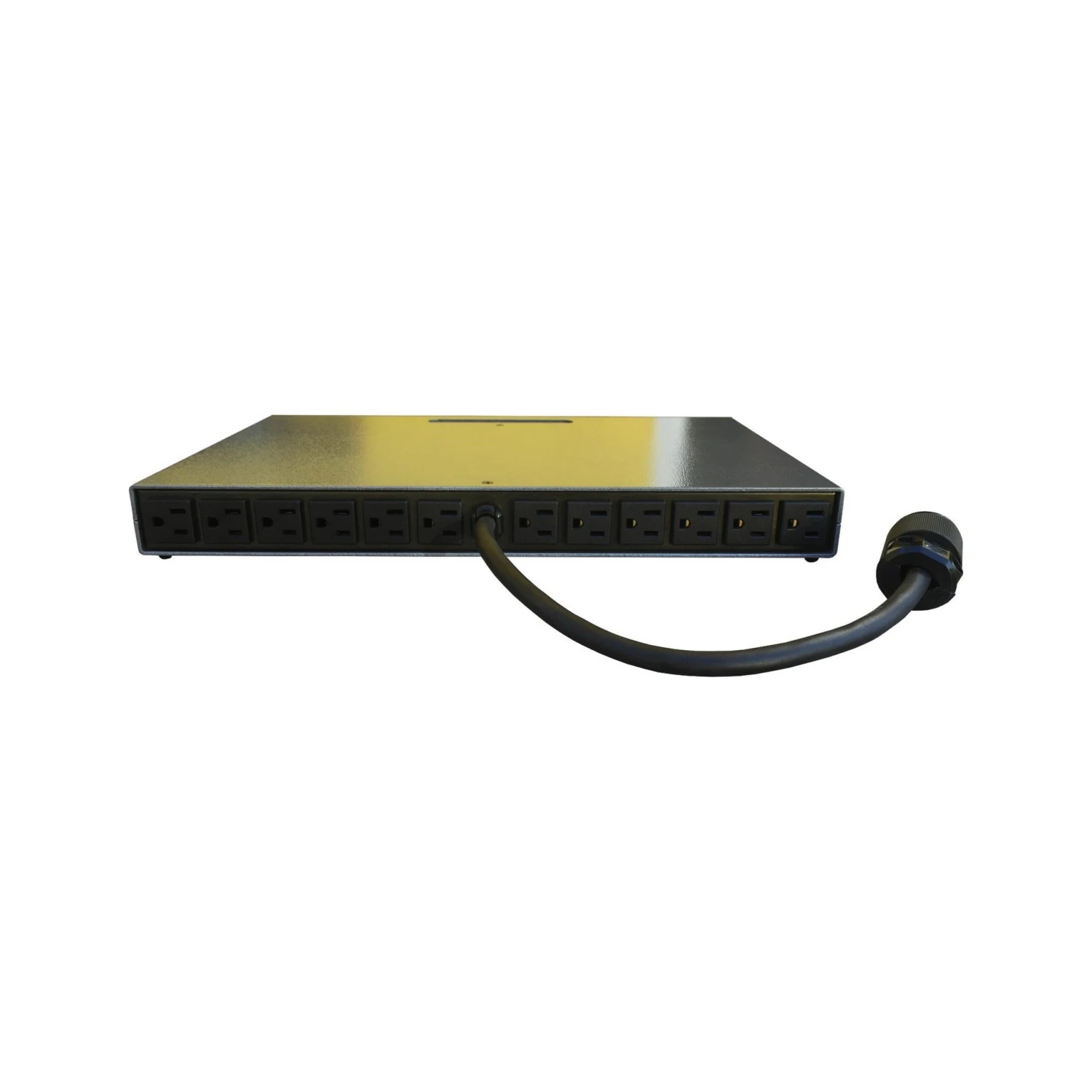

Doug Fleenor Design DMX12DIM-ELV 12 Channel 100W Rack Mount Dimmer

The DMX12DIM ELV is a twelve output dimmer designed for high efficacy loads, and minimal losses. This dimmer uses “reverse phase” (aka: “trailing edge”) dimming techniques and MOSFET power devices. This type of control is required for proper dimming of many LED fixtures. Each output can drive loads up to 100 Watts. Each channel may be configured for reverse phase dimming (default), forward phase dimming, or nondim operation. The dimmer is a single-space rack mount unit with removable rack ears (included). Airflow is front to side. Half inch holes are provided for half couplers or C clamps. The enclosure features a carry handle and a 3/8 inch safety cable slot.

Technical Specifications

Input circuit
Protected EIA-485 receiver (LT1785)
Input protection
Undamaged by up to 60 Volts continuous, 15KV transients
Input signal
0.2 volts minimum, DMX512, DMX512/1990, or DMX512-A
Input connector
Gold plated 5 pin male XLR (Neutrik D-1 series) 3 pin XLR optional
Input pass through
Gold plated 5 pin female XLR (Neutrik D-1 series) with all five pins passed through
Termination
None, unused pass through connectors must be externally terminated
Power input
120 VAC 60 Hz 10 Amps at full load, actual current draw is 0.07A plus connected load
Power input connector
NEMA 5-15P (15A grounded parallel blade) on 18 inch 12 gauge pigtail
Idle power
7 Watts
Power output
120 VAC 60 Hz 0.83 Amps (100W) maximum per output
Minimum load
No minimum load requirement
Output protection
1.5A internal fuse on each output channel
Output connectors
NEMA 5-15R (15A grounded parallel blade)
Dimming circuit
Digitally fired, optically-isolated, MOSFET power devices that allow for forward or reverse phase dimmer control
Size and weight
1.7″H – 10.5″D – 19″W (17″ behind rack ears), 7 pounds, rack ears are included
