Doug Fleenor Design PRE10-A DMX512 Architectural Playback Device

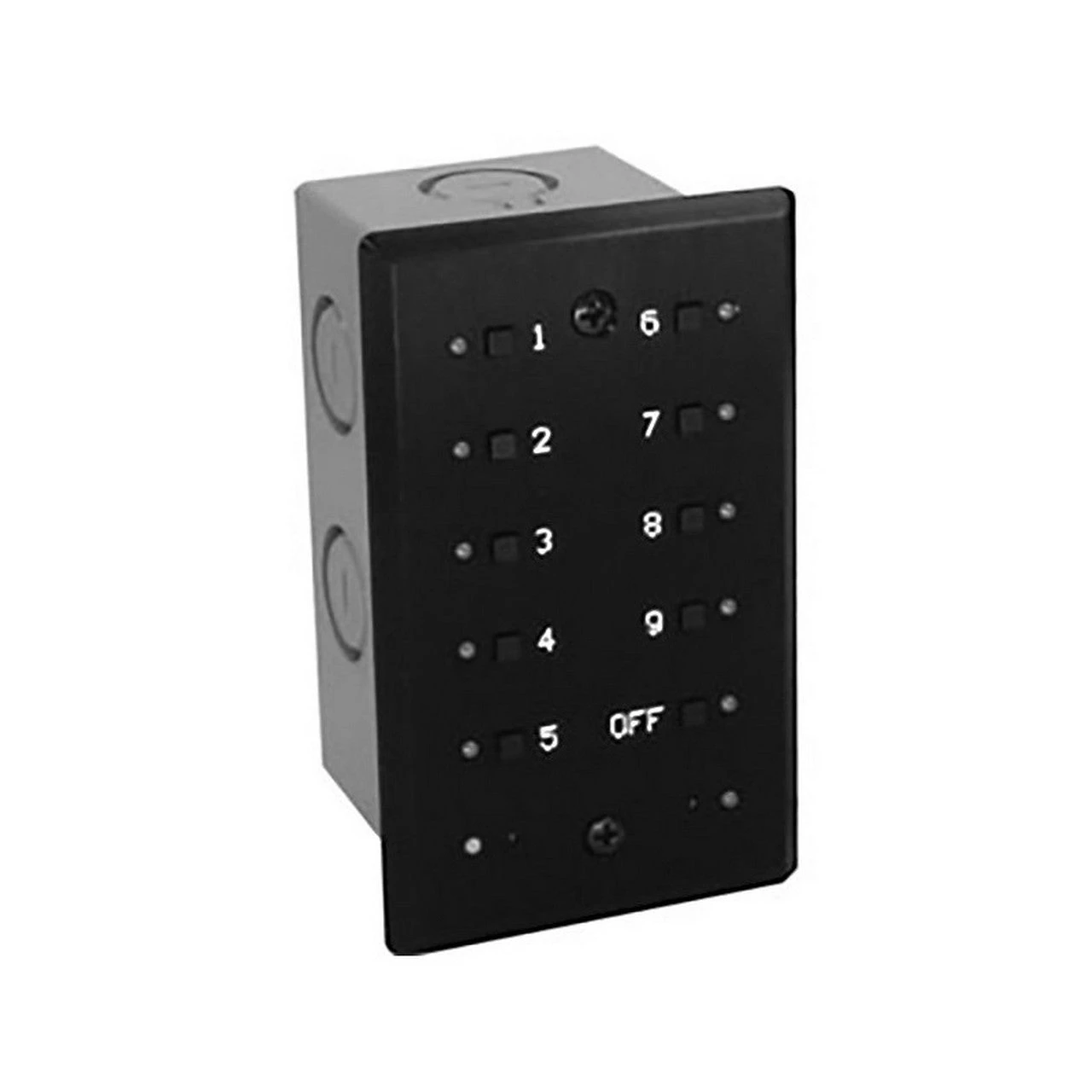

The Doug Fleenor Design PRE10-A Preset 10 Architectural is a lighting control station capable of storing up to ten presets. The PRE10-A offers “Radio Button” operation, where only one preset may be active at time. These presets are recorded by capturing the output of a DMX512 console. Each preset can then be assigned a unique fade time, from 0 to 999 seconds. Presets are recalled by pressing one of the summarys. Systems can be created by using one or more stations and a power supply. The solid aluminum faceplate is designed to install over a standard single gang electrical box. Connections to the Preset 10 Architectural are power (2 wires) and DMX512 (3wires). Power for the Preset 10 can be supplied from a variety of sources, including a 10V class 2 “doorbell” transformer. The Preset 10 Architectural system can work in conjunction with a lighting console, automatically switching between preset and console control. W hen the console generates a DMX512 signal the Preset 10 Architectural goes off-line. The console then operates normally. Upon loss of DMX512 from.

Technical Specifications

Connector
Phoenix Contact MSTB series 5 position two part terminal block; Model: MSTB 2,5/5-ST-5,08 Order Number
17 57 04 8
Connector pin out
1: DMX512 common, 2: DMX512 data -, 3: DMX512 data +, 4: Supply common (tied to pin1), 5: Supply “hot”
Input/Output circuit
ESD protected EIA-485 transceiver (LT1785)
Indicators
Ten green preset indicator LEDs; One red Lockout / Record LED
User controls
Ten preset push summarys; One recessed record push summary; One recessed fade time push summary
Option jumpers
Master / Slave mode selection; Pervious preset / Hold last look mode selection
Power input
9 to 15 volts AC or DC / 200mA per station; (A 10 volt class 2 “doorbell” transformer is recommended for fixed installations)
Color
Black anodized with silver engraved nomenclature
Size Faceplate(H x W x D)
4.5 in x 2.75 in x 0.2 in
Faceplate rear inset(H x W x D)
4.05 in x 2.4 in x 0.1 in
Electrical box minimum inside dimensions(H x W x D)
3.5 in x 2.1 in x 1.25 in
