The Rerun Architectural is a lighting control station capable of storing up to ten 40-minute shows. Shows are recorded by capturing the output of a DMX512 console. The recorded show start and end points may be trimmed non-destructively. Each show can be set to hold the last look, loop to itself or link to another show. Shows are started by pressing one of the ten show summarys. The Rerun Architectural system can work in conjunction with a lighting console, automatically switching between recorded shows and console control. When the console generates DMX512 the Rerun Architectural retransmits the incoming DMX512 data. Thus the console operates normally. Upon loss of DMX512 from the console, the Rerun Architectural starts its previous show.

Technical Specifications

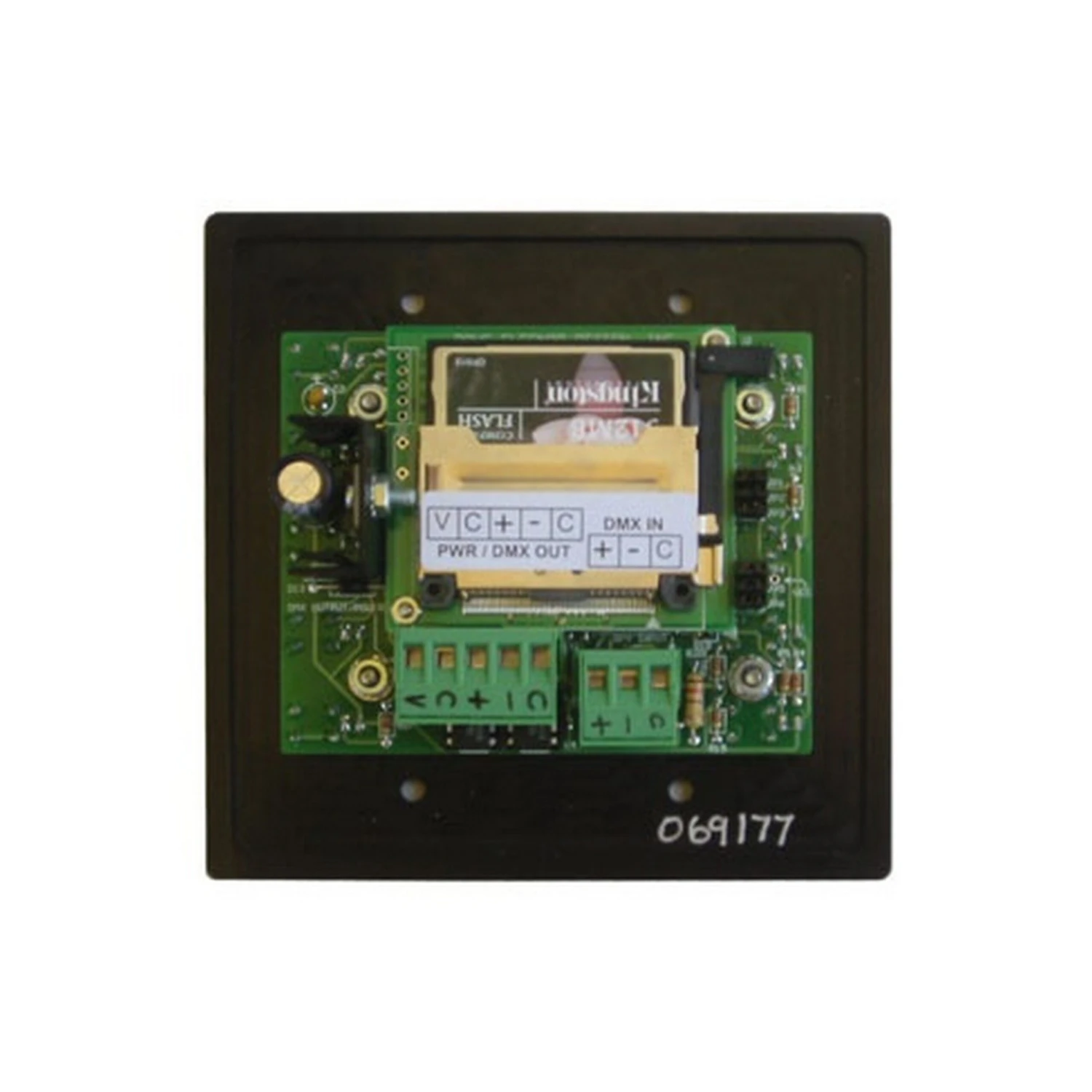

Connector
Terminal block #1
Phoenix Contact MSTB series
5 position two part terminal block
Model: MSTB 2,5/5-ST-5,08
Order number: 17 57 04 8
Input circuit
ESD protected EIA-485 transceiver (LT1785)
Output circuit
ESD protected EIA-485 transceiver (LT1785)
Isolation
None. DMX input is not isolated from DMX output.
Indicators

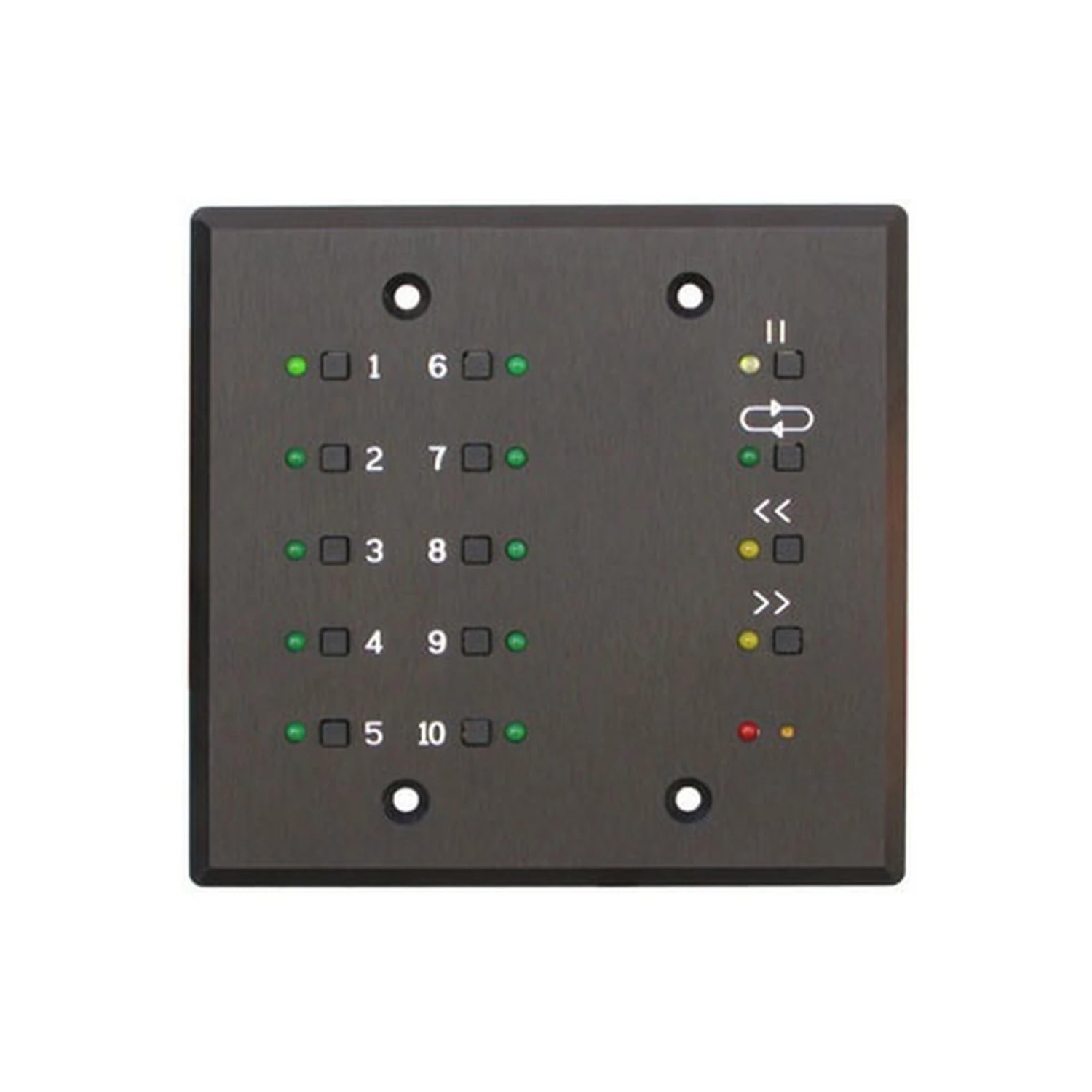

Ten green SHOW LEDs
One green PAUSE LED
One green LOOP LED
One yellow START LED
One yellow END LED
One red INPUT/RECORD LED
Power input
10 to 15 volts AV or DC / 150mA per station
(A 10 volt class 2 “doorbell” transformer is recommended for fixed installations)
Color
Black anodized with silver engraved nomenclature

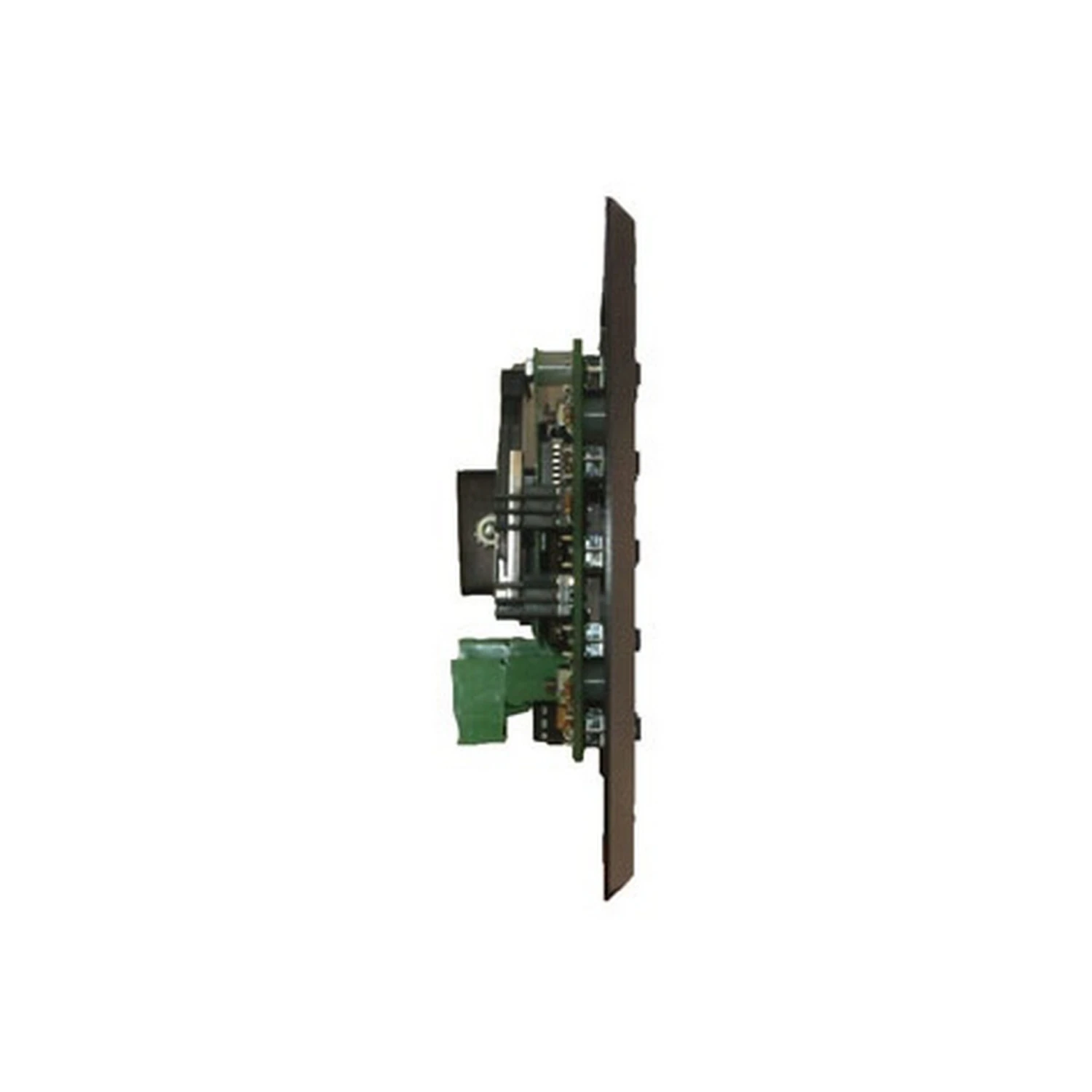

Size
Faceplate: 4.5″H – 0.2″D – 4.6″W
Faceplate rear inset: 4.15”H – 0.1”D – 4.25”W
Electrical box minimum inside dimensions
2.9”H – 1.5”D – 3.5”W
