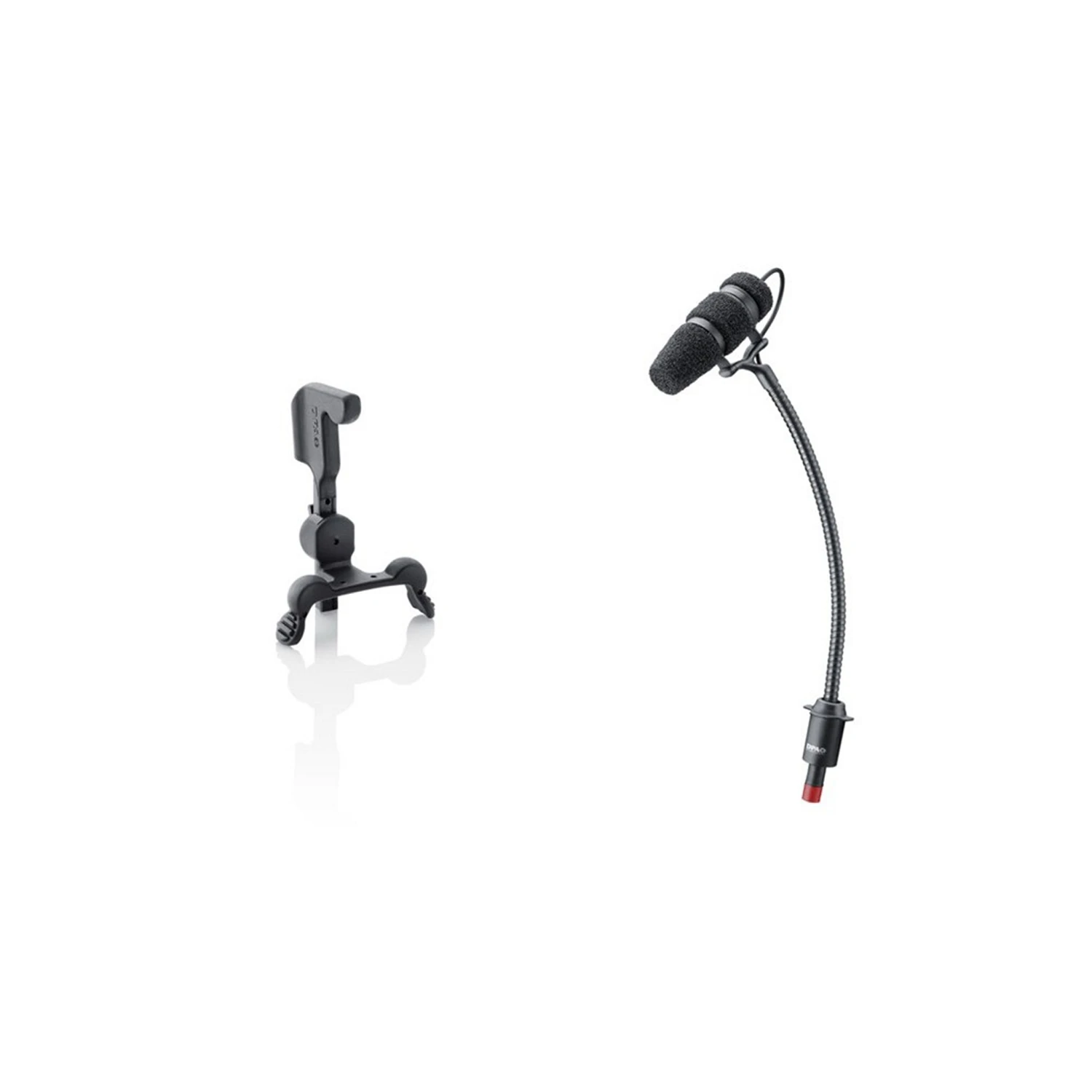

DPA 4099 CORE Supercardioid Condenser Instrument Microphone, Loud SPL With Clip For Violin(Dpa 4099 Core Supercardioid Condenser Instrument Microphone Loud Spl With Clip For Violin)

DPA 4099 CORE Supercardioid Condenser Instrument Microphone, Loud SPL with Clip for Violin

DPA’s 4099 microphone has already established itself as the industry standard. The newly added CORE version, however, elevates this microphone to a whole new level of sound quality, pushing it further ahead of the competitors. With 4099 CORE, your music will be imbued with more clarity and detail, across the entire dynamic range. Anyone seeking the best possible sound quality should opt for CORE – musicians, live sound engineers, and anyone else who values quality audio.

CORE by DPA is a revolutionary technology that forms the foundation of DPA’s miniature microphones. By minimizing distortion, you’ll experience greater clarity and openness, whether playing pianissimo or fortissimo. To learn more about CORE by DPA, visit our website.

From strings to woodwinds, brass to percussion, the 4099 series delivers impressive sound quality on all instruments. This single microphone model can effectively amplify an entire orchestra. If you want to move the mic to another instrument, make sure you have the correct type of clip to attach it securely. Award-winning 4099 series microphones offer a more natural sound than any clip-on microphone or pickup. These instrument condenser microphones reject unwanted noise and accurately capture the true voice of your acoustic instrument.

The 4099 CORE also features an improved shock mount design, which provides excellent isolation from handling noise and rumbling. Detachable cables are available in heavy-duty or lightweight versions, depending on the application – both are designed to withstand daily wear and tear. A versatile, integrated gooseneck extender makes mounting easy and repeatable.

The CORE 4099 comes with an XLR connector adapter. You can easily connect the microphone to a wireless system via an adapter from our vast range of wireless adapters.

The microphones can be effortlessly unclipped and repositioned or moved to another instrument. The mounting system is designed to never blemish or scratch the finish of your instrument. The flexible design supports a wide range of mounting and positioning possibilities.

The 4099 CORE is perfect for the violin, banjo, and viola, thanks to its ability to handle loud SPL. Users will appreciate how gently this instrument condenser mic attaches to their beloved instrument.

It is lightweight, elegant, and unobtrusive, designed to stay out of the way during a passionate performance. The mounting mechanism makes it easy to move the mic between instruments with one hand.

If you need a 4099 CORE instrument microphone for your violin, banjo, or viola, choose the 4099-DC-1-199-V.

IP58 Certified
All CORE by DPA technology microphones, including the 4099 CORE, are IP58 certified. This durability is achieved through a number of defensive measures, including a water-repellant nano-coating of the cover and housing, hermetic sealing of the sensitive amplifier at the core of the mic, and dual gold plating of the diaphragm.

Key Features

• Utilizes DPA’s CORE technology for exceptional performance
• Designed for capturing instruments with a supercardioid polar pattern
• Capable of handling high sound pressure levels without distortion
• Provides superior gain-before-feedback for clear and accurate sound reproduction
• Offers flexible and effortless mounting options for convenient use

Technical Specifications

Directional pattern
Supercardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency response
20 Hz – 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in)
80 Hz – 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC
Sensitivity, nominal, ±3 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
Distortion, THD < 1%
128 dB SPL RMS, 131 dB SPL peak
Dynamic range
Typ. 108 dB
Max. SPL, THD 10%
142 dB SPL peak (label color red)
Rated output impedance
From MicroDot: 30 – 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter
Output balance principle
Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter
Power supply (for full performance)
For wireless systems: Min. 5 V – max. 10 V through DPA adapter
With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V
Current consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter
Connector
MicroDot
Color
Black
Weight
Microphone: 17 g (0.60 oz)
Instrument Microphone Clamp Mount (CM4099): 16 g (0.56 oz)
Instrument Microphone Clip for Accordion (AC4099): 5 g (0.18 oz)
Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)
Instrument Microphone Clip for
Microphone diameter
5.7 mm (0.22 in)
Microphone length
45 mm (1.8 in)
Cable length
1.8 m (5.9 ft)
Cable diameter
1.6 mm (0.06 in) / 2.2 mm (0.09 in)
Polarity
+V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
Gooseneck length
140 mm (5.5 in)
Sensitivity selection tolerance (at 1 kHz)
±1 dB
