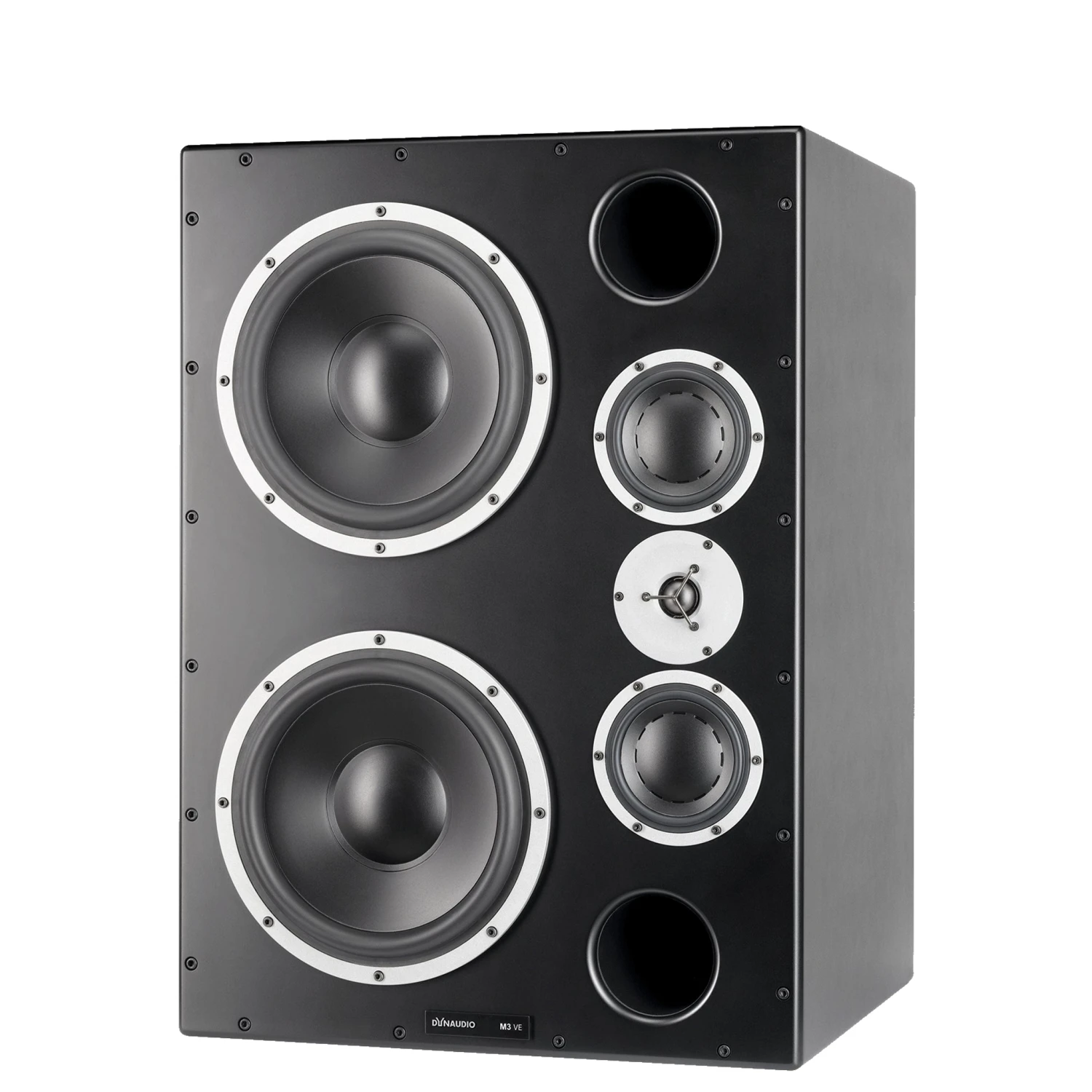

Dynaudio M3XE Studio Main Active Monitor System, Left(Dynaudio M3xe Studio Main Active Monitor System Left)

Dynaudio M3XE Studio Main Active Monitor System, Left

The Dynaudio Professional M3VE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor – the renowned M3A 3-way monitor. Two speakers are powered by a single four channel Lab.gruppen PLM 12k44 amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point.

With Dynaudio ESOTAR driver technology, M3VE takes over where most other monitor systems give up. Attention to detail, underpinned by a 22Hz – 21kHz frequency response and beyond 133dB SPL, M3VE leaves no room for desire in terms of resolution, range or power.

Key Features

• Three-Way Main Monitor
• Handcrafted drivers
• For in-wall or free-standing setups
• Passive MF/HF crossover
• Matched with Lab.gruppen PLM 12k44 amplifier
• Made in Denmark

Technical Specifications

System
3-way Active Main Monitor
Frequency Response (?3dB)
22Hz – 21kHz
Peak SPL 1m, pair (IEC Short Term)
> 133dB peak
Amplifier minimum
2 x Lab.gruppen PLM10000Q
Resonance Frequency
24Hz
Internal Cabinet Volume
145 liters
Bass Principle
Bass reflex
Amplifier
1/2 Lab-gruppen PLM10000Q (2 channels pr speaker). Preset: M3VE V05
Tweeter
Esotar 28mm soft dome Magnetic fluid, Metal rear chamber, Pure alu wire voice coil, 4 mm die-cast alu front, Neodym magnet material
Midranges
15cm with 75mm diameter pure aluminum wire voice coil, one-piece molded MSP cone
Woofer
Esotar 30cm with 75mm diameter pure copper wire voice-coil, MSP-cone, long stroke
Weight
65kg
Dimensions (WxHxL)
555 x 775 x 505mm
Cabinet
25mm MDF, strategically braced and damped. Low turbulence reflex-ports. Separate chambers for each woofer.
Crossover
Woofers/hightone: active dsp-based, in-amp Lake processor. Midrange/tweeter: passive wir air-coils only, low dielectrium capacitors and zero-compression resistors.
Model
12k44
Number of amplifier channels
4
Max out Power per Channel (4 ohms, all channels driven)
3000W
THD + N at 1kHz and 1dB below clipping
< 0.04 %
Dynamic Range
> 114dB
Channel separation (Crosstalk) at 1 kHz
> 70dB
Inputs
Analog, AES/EBU & Dante
Analog Input Sample Rate / Resolution
96kHz / 24bit
Weight
16.5kg (36lbs)
Dimensions (W x H x D)
483 (19”) x 88 (2 U) x 424(16”)
