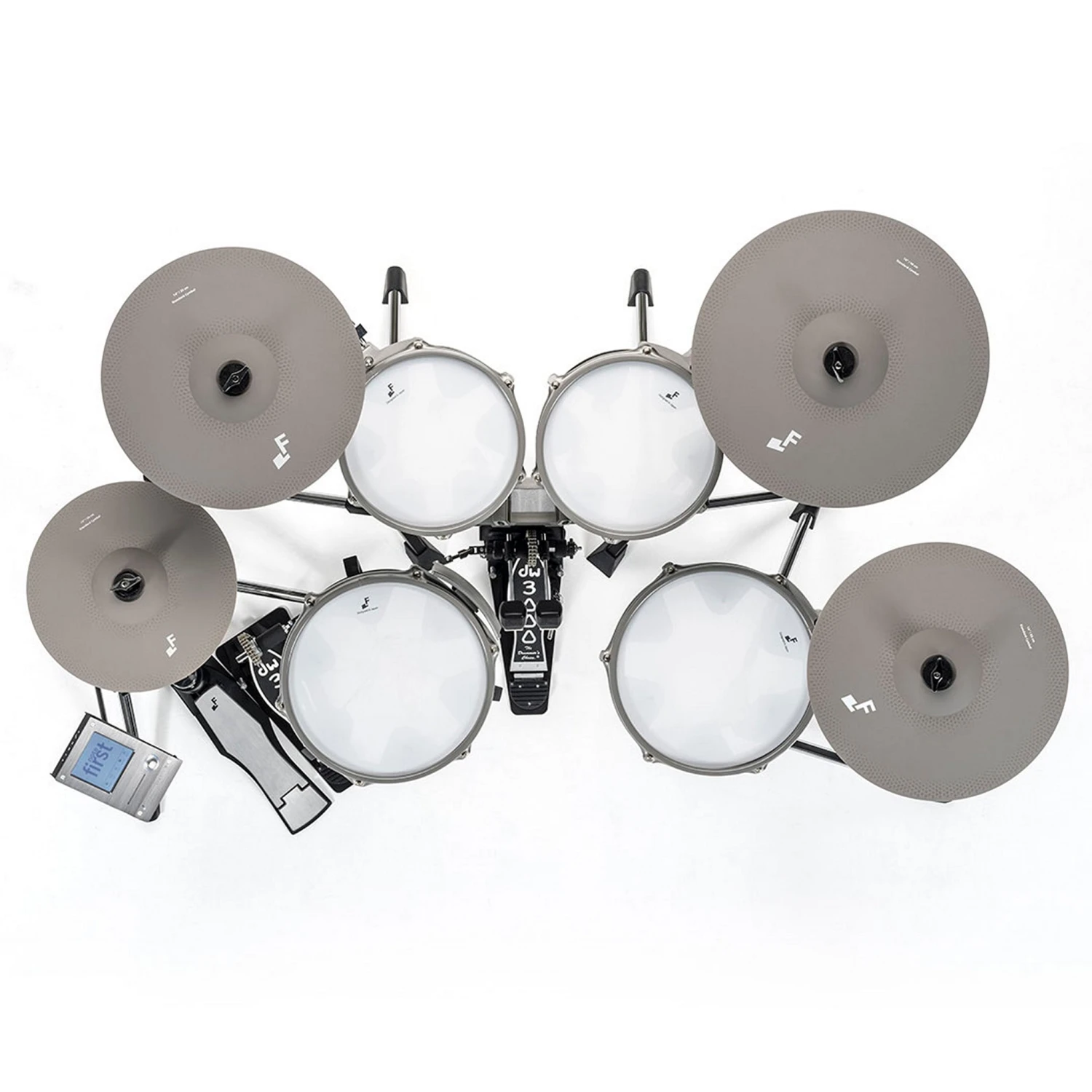

The EFNOTE 3 Acoustic Designed Electronic Drum Set is an innovative electronic drum that delivers top-of-the-line technology and sound quality. With eight separate channels of USB Audio and 16 CH USB MIDI, it’s designed to give drummers the best possible experience. It is the only kit in its price range that offers all of these features:

3-zone cymbals with 360° playing/choke zones
3-zone snare with dedicated side rim and 2-zone toms
Super smooth optical sensed hi-hat

Beyond Average Playability
What sets EFNOTE 3 apart is its playability, which is equivalent to the top series. With multi-sensor pads and 360° cymbals, you can expect a high-resolution and hotspotless sound. The innovative Tru-Motion™ hi-hat pedal and independent stands make it easy to customize your setup. Plus, it has an aesthetic design that goes beyond the basic model.

All-Around Capability
EFNOTE 3 is a versatile drum kit that supports a wide range of music genres. It is EFNOTE certified for sound quality with full stereo drum/cymbal sounds. It also supports USB Audio/MIDI, Bluetooth, and Remote App. The touch screen interface makes it easy to use, and it has flexible pad expandability.

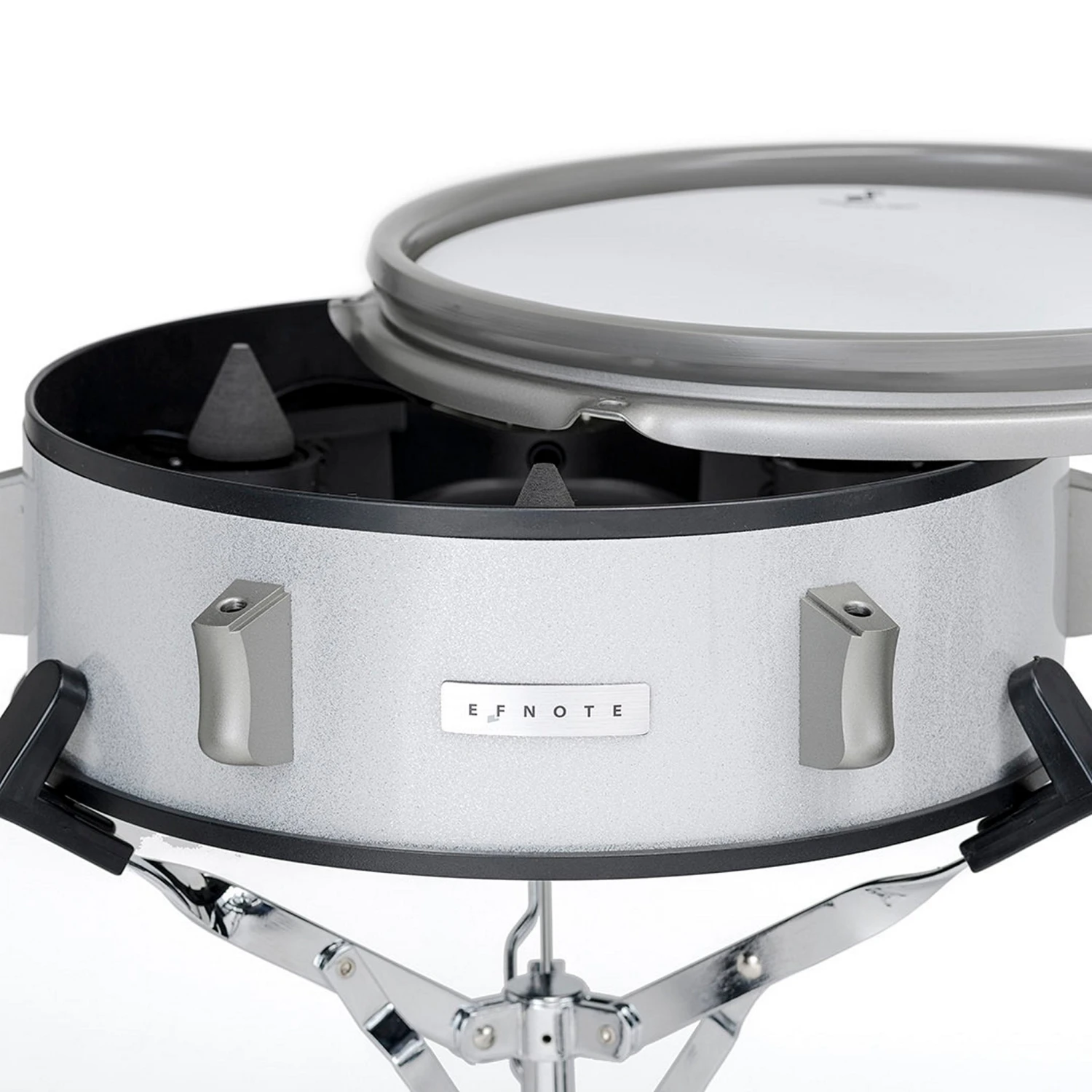

Monocoque Drum Shells
EFNOTE 3 features 10 x 3.5″ and 12 x 4″, 6 lugs, 2ply mesh drum heads with Monocoque FRP shell for stiffness and durability. The multi-sensor ensures hotspotless and high-resolution sounding.

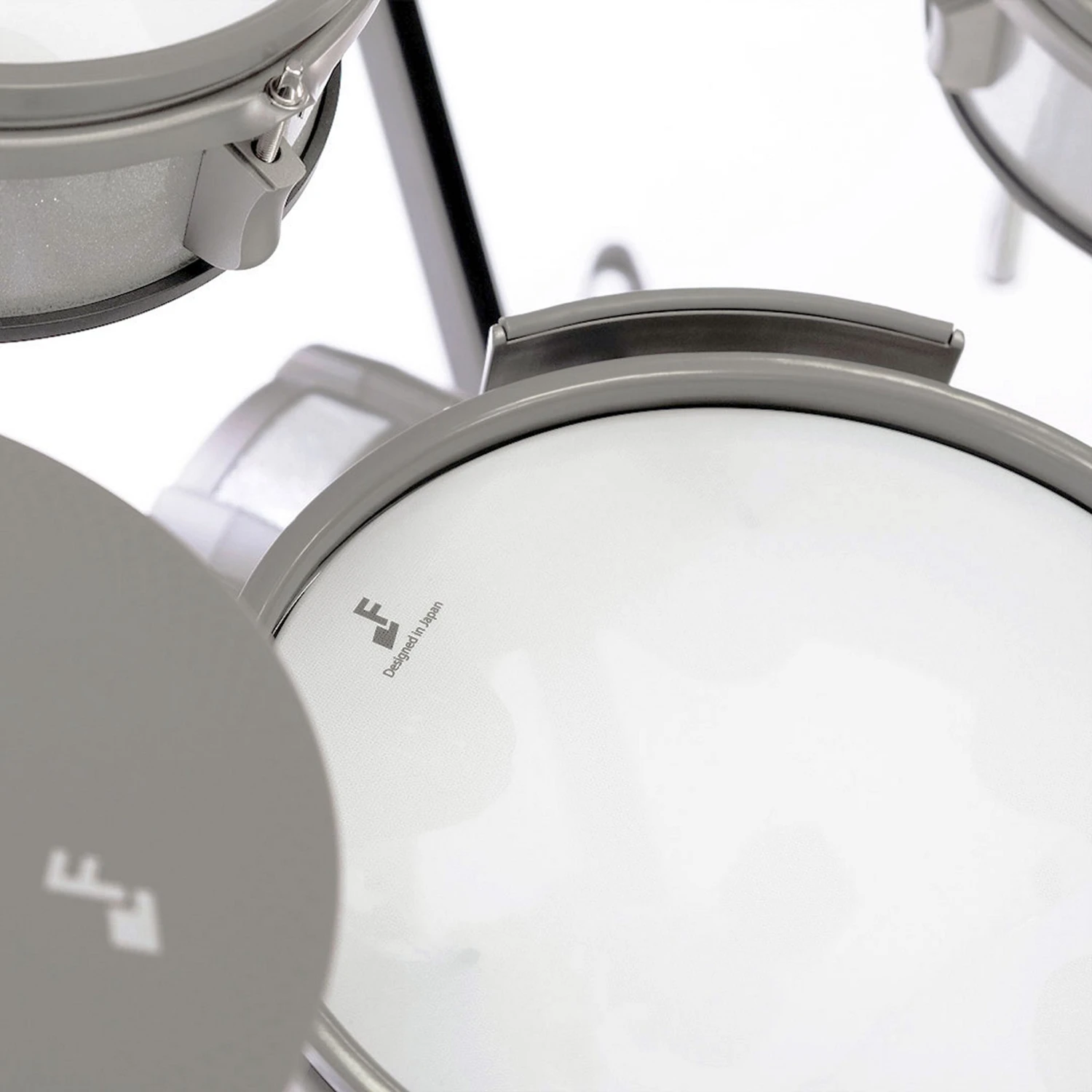

Independent Side-Rim
The independent side-rim is easy, intuitive, and reliable with no switch operation required. It has an elegant arc design.

Suspended Tom Mount
EFNOTE 3’s suspended tom mount delivers a softer striking feel and less rebound. It also has anti-crosstalk vibration.

Comfy Strike-Feel Kick
EFNOTE 3’s kick has a low rebound fabric head and an angle-adjustable kick pedal attachment. It also has stable multi-sensing for single/double beater(s) and rugged spars with rubber/spike tips.

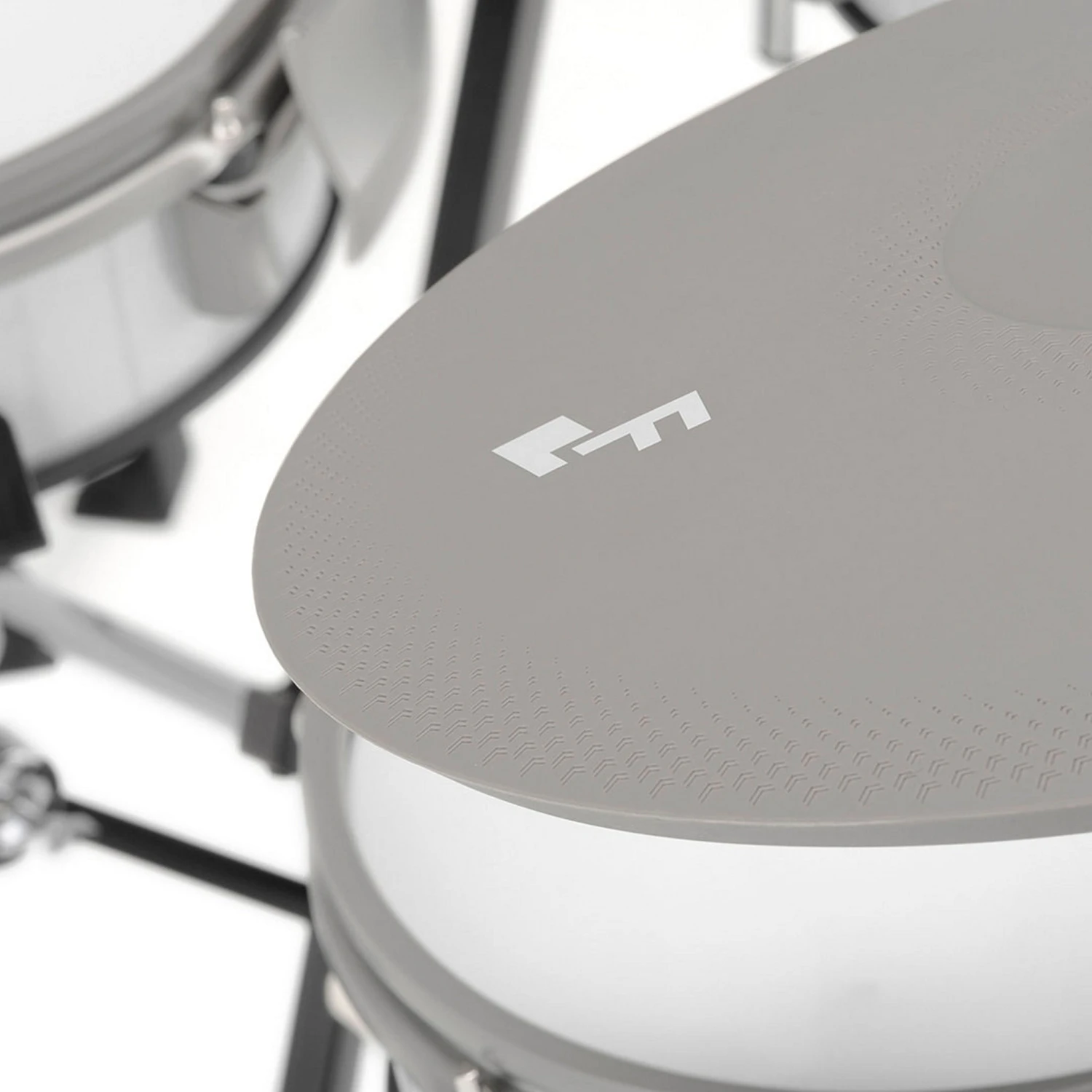

3-Zone 360° Cymbals
EFNOTE 3’s 3-zone 360° cymbals include 2x 14″ crash cymbal and 1x 16″ ride cymbal with a multi-sensored 360° play/choke area. It also has a 360° free-swinging design and a responsive thin edge. The elegant warm-gray surface with fine engravings and clean silicone rubber surface resists drumstick marks.

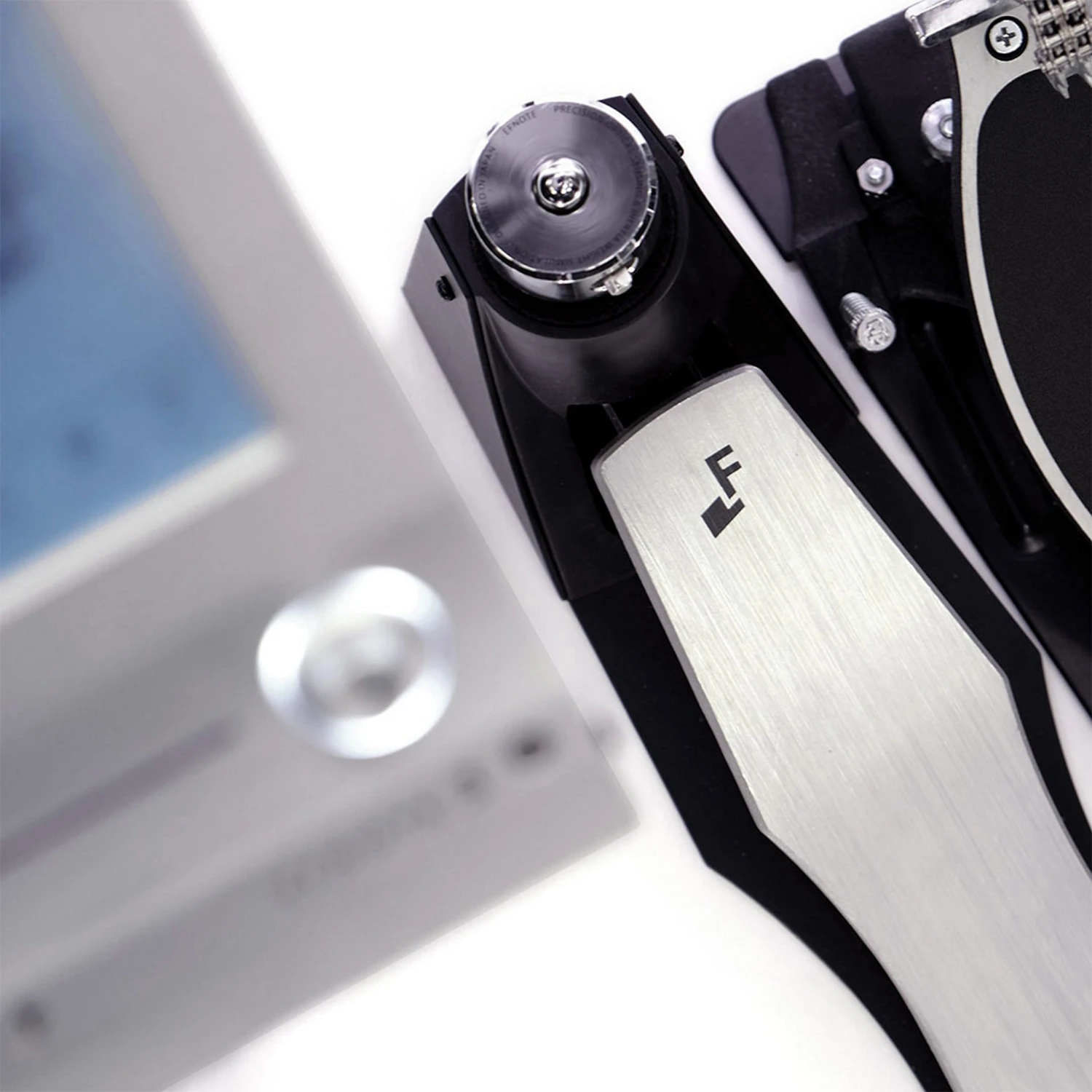

Tru-Motion™ Hi-Hat Pedal
EFNOTE 3’s Tru-Motion™ hi-hat pedal features inertia weight simulation technology, precision optical sensing, open-close stroke gap adjustment, spring tension adjustment, and a dedicated non-skid rubber grip.

λ (Lambda) Tripods
EFNOTE 3’s λ (Lambda) Tripods provide easy and flexible setup with an independent rack stand design. It also has stable metal tripod stands.

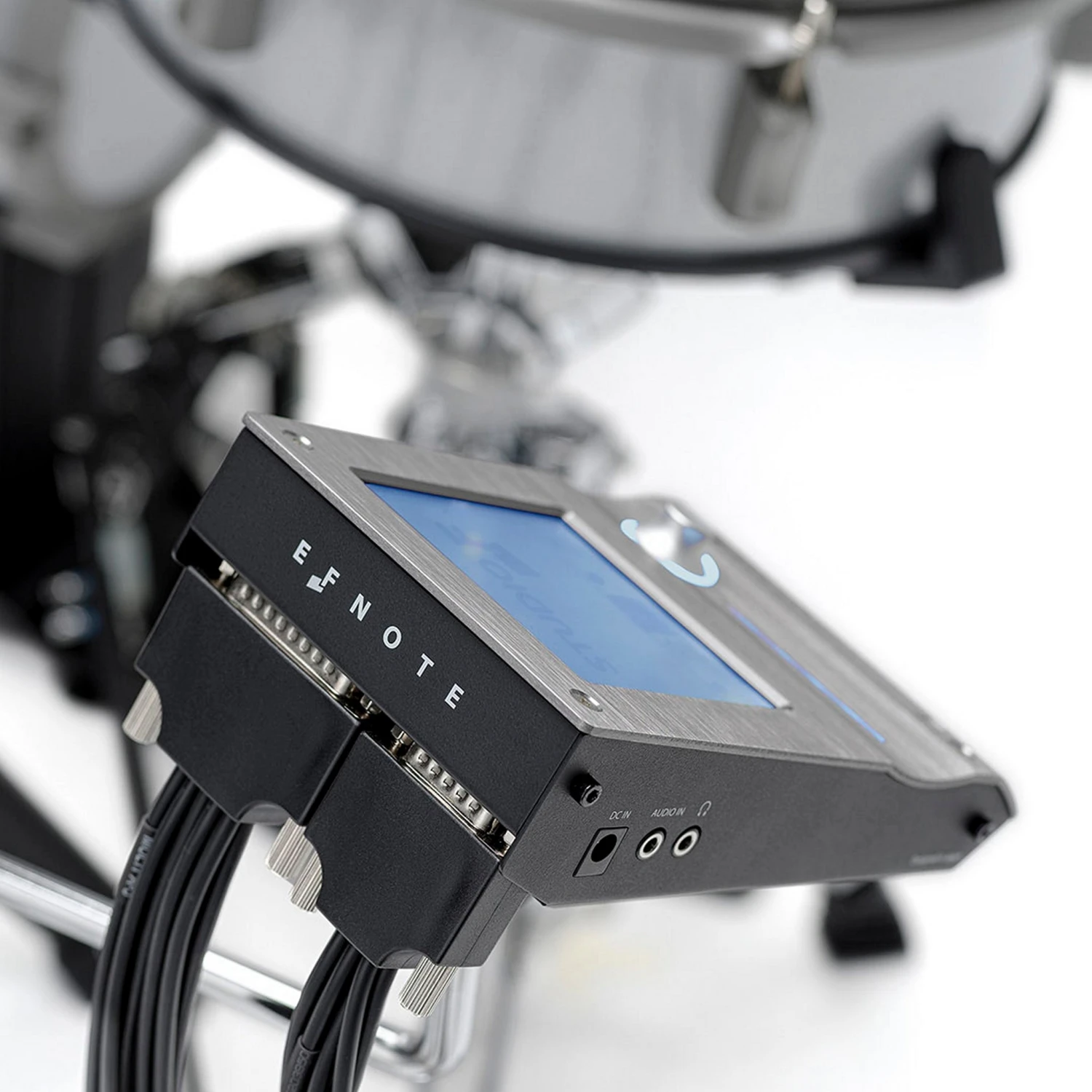

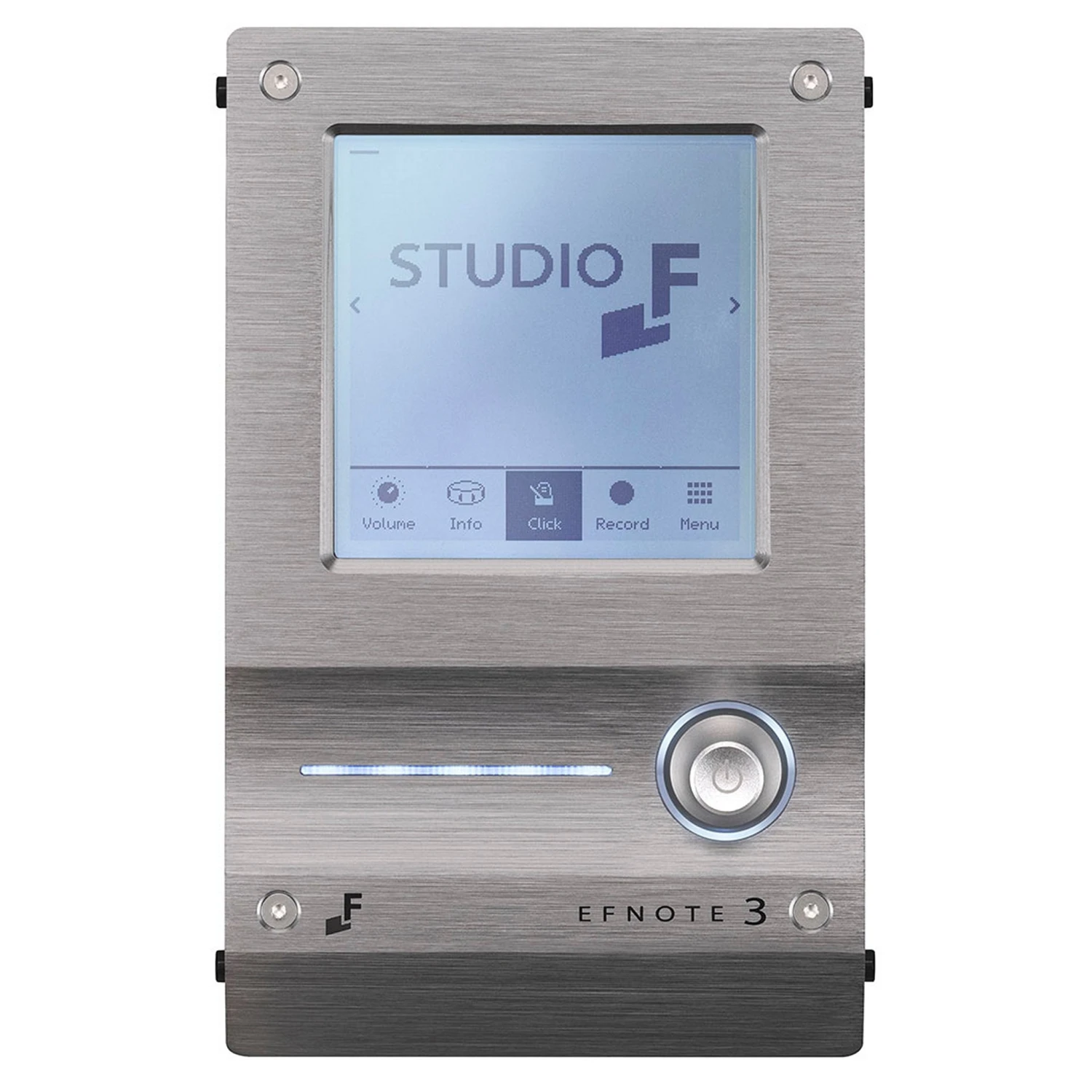

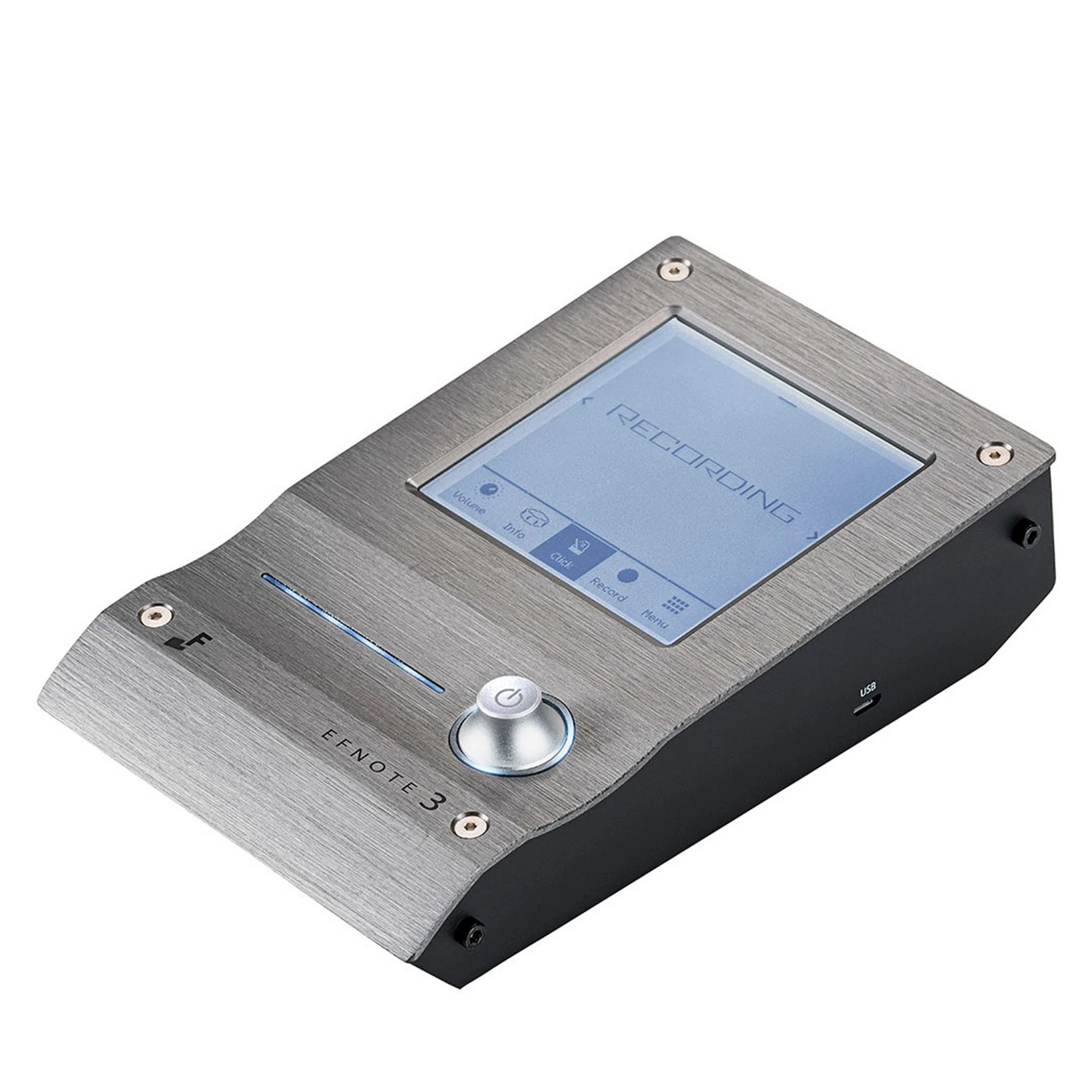

Ultra-Compact Sound Module
EFNOTE 3’s ultra-compact sound module has an ultra-small form factor with uncompromised features. It has a metal chassis and aluminum finish, high-quality DAC and audio circuit, high power headphone amplifier, and a touch screen intuitive user interface.

ELISE™ Sensing Processor
EFNOTE 3’s ELISE™ Sensing Processor captures drummer’s intentions from each stroke with low latency, wide dynamic-range, consistent and stable sensing. It is optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads.

Full-Scale Acoustic Sound
EFNOTE 3’s full-scale acoustic sound has full stereo acoustic drum/cymbal samples recorded by EFNOTE. Tru-Aco™ sound technology provides real drum/cymbal sound behaviors. The raw sound without resynthesis is perfect for training.

For Training
EFNOTE 3’s multi-function metronome has a beat LED indicator and a built-in metronome speaker for daily training without headphones. It also has an on-board drum recording function (15 tracks), a stroke analyzer, and a rhythm box feature that provides over 90 basic drum beats.

For Recording

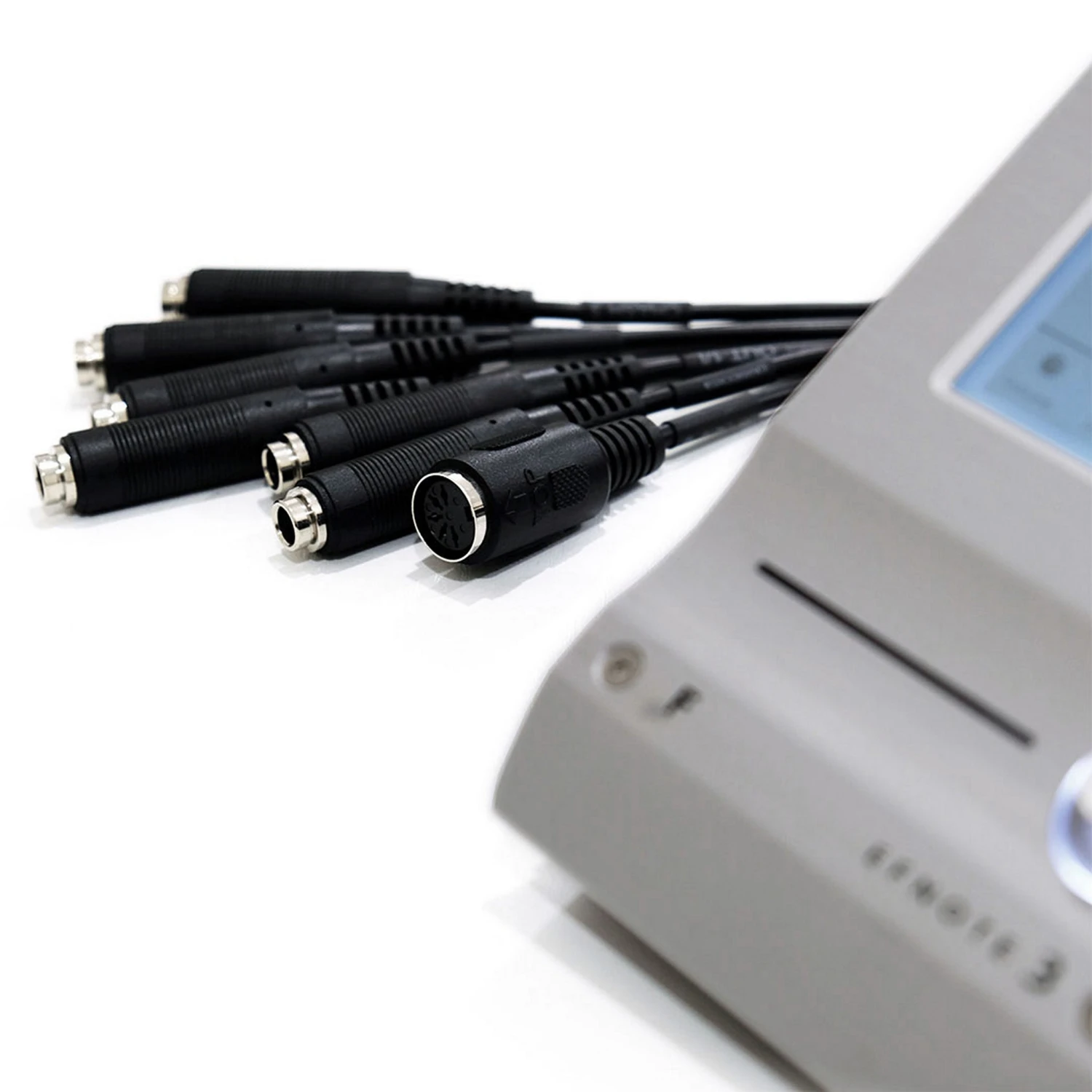

EFNOTE 3 supports USB 8-ch individual audio outputs with Mac / Windows (ASIO), USB 2-ch audio inputs for playback, analog 4-ch audio outputs, USB MIDI in/out with individual MIDI channels, and MIDI output (5-pin DIN).

For Small Gigs
EFNOTE 3’s setlist feature enables you to configure kit order with tempo for each song. Kick and snare can be output individually with analog 4-ch outputs, and click and audio-in can be assigned only for headphones. It also has a high-power headphones output and MIDI output (5-pin DIN).

Stroke Analyzer
EFNOTE 3’s “Stroke Scope” displays your strike points on a time-line and “Accuracy Score” estimates your strike accuracy.

Sound Edit
EFNOTE 3’s sound edit feature includes tuning, muffling, and 2-band EQs for each pad. The pad layer function can overlay two sounds, and the user inst library enables you to store 128 customized instruments. It also has an on-board reverb and a dedicated level control screen.

Flexible Audio Routing
EFNOTE 3’s flexible audio routing has 10-ch output buses, flexible output routing for each pad, output assignable click, output: 4-ch analog / 8-ch USB, and input: analog / Bluetooth / 2-ch USB.

Bluetooth®
EFNOTE 3’s Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone. It also has Bluetooth MIDI and EFNOTE Tools App for control remotely.

Technical Specifications

Drum / Cymbal Pads
Kick: EFD-K08P
Size: 8 x 3″
Finish: White sparkle
Zone: Head
Sensor: Multi
Head: Comfy strike-feel fabric
Connector: Head (TRS Phones)
Features: Angle-adjustable kick pedal attachment
Snare: EFD-S12P
Size: 12 x 4″
Finish: White sparkle
Zone: Head / Rim / Side-Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim, Side-Rim (2x TRS Phones)
Features: Monocoque drum shell, Colored hoop rubber, Side-Rim
Tom 1 / 2: EFD-T10P
Size: 10 x 3.5″
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
Tom 3: EFD-T12P
Size: 12 x 4″
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
Hi-Hat: EFD-C12
Size: 12″ (Single cymbal)
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Fine engraved surface
EFNOTE 3 sound module does not support hi-hat cup zone.
Hi-Hat Pedal: EFD-HC3
Sensor: Optical
Adjustment: Spring tension, Open-Close stroke gap
Connector: 6-pin
Features: Inertia weight simulation, Tru-motion™ hi-hat
Crash 1 / 2: EFD-C14
Size: 14″
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Fine engraved surface
Ride: EFD-C16
Size: 16″
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Fine engraved surface

Sound Module: EFD-3
Trigger Interface
3-Zone: Snare, Crash 1/2*, Ride
2-Zone: Tom 1/2/3/4, HH, Crash 3
1-Zone: Kick
Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
Audio / MIDI Interface
Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
Audio Input: Stereo Mini-Phone (+2dBu Max)
USB: Micro-B Type USB 2.0 Hi-Speed
Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
MIDI: In/Out
Bluetooth Audio Input
Bluetooth MIDI In/Out
MIDI Out: 5-pin DIN
Drum Kits / Instruments
Preset Drum Kits: 16 (Editable)
User Drum Kits: 34
Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
User Inst Library: 50 (Can be stored customized instruments)
Edit Parameters
Level, Pan, Tuning, Muffling (for each pad)
2-Band EQ (for each pad)
Ambience Effect (8 types)
Pad Layer
Dimensions
106 (W) x 172 (D) x 47 (H) mm
700g
Excluding protrusions
Power
DC 12V, 500mA (Nominal) / 800mA (Max)

Tripods / Stands
Tripods
4x Lambda Tripod
Snare Drum Stand
For 12″ to 14″ diameter snare drums
Geared basket tilter
Double braced legs
Tube diameter: 19.1 mm (3/4″)
Height adjustment range: 500 — 650 mm
Tom Holder
3x Tom Holder Arm
Geared L-rod tilter
Knurled carbon steel rod
L-rod diameter: 11.5 mm (7/16″)
Tube diameter: 22.2 mm (7/8″)
Height adjustment range: 550 — 900 mm
Hi-Hat Cymbal Arm
1x Boom Hi-Hat Cymbal Arm
Cable holder
Tube diameter: 22.2 mm (7/8″)
Boom length: 250 mm
Height adjustment range: 550 — 1000 mm
Cymbal Arm
3x Boom Cymbal Arm
Gearless tilter
Cable holder
Tube diameter: 22.2 mm (7/8″)
Boom length: 300 mm
Height adjustment range: 650 — 1250 mm
Sound Module Arm
1x Sound Module Arm
1x Smartphone Tray

Drum Kit Placement
Placement Size
Approx. 160 (W) x 90 (D) cm
Approx. 5.3 (W) x 3.0 (D) feet
Without drum throne

Included
Sound Module 1x
8” Kick Pad 1x
12” Snare Pad with Side-Rim 1x
10” Tom Pad 2x
12” Tom Pad 1x
12” Standard Cymbal for Hi-Hat 1x
14” Standard Cymbal for Crash 2x
16” Standard Cymbal for Ride 1x
Hi-Hat Control Pedal 1x
Smartphone Tray 1x
Tripod Set 4x
Snare Stand 1x
Module Mount 1x
Multi-A3 Cable 1x
Multi-B Cable 1x
Trigger Cable 4x
AC Adapter 1x
Beater Patch 1x
Tuning Key 1x
Cable Tie 10x
Quickstart Guide 1x
