Eiki PRO V1700 17000 Lumens WUXGA 3LCD Large Venue Laser Projector Without Lens(Eiki V1700 17000 Lumens Wuxga 3lcd Large Venue Laser Projector)

Eiki V1700 17000 Lumens WUXGA 3LCD Large Venue Laser Projector

Introducing the Latest Eiki V1700 3 LCD Projector with Laser Light Source
Eiki’s Large venue projector PRO-V Series has added a new model to its collection – the V1700. It employs a laser light optical engine and 3LCD technology to offer high brightness, high contrast, and exceptional color reproduction. The sealed optical engine and newly designed cooling system make the V1700 filter-free and maintenance-free. The projector is capable of a full 360 installation, including portrait mode, and comes with advanced keystone correction (Pin cushion/Barrel, 4-corner, 6-corner) and a full suite of optional lenses.

High Brightness and High Contrast Imaging
The V1700 boasts a high brightness of 17,000 Lumens and a high contrast of 3,000,000:1, enabling it to realistically reproduce images even in bright projection environments.

High Performance and Low Maintenance
The V1700’s filter-less design, sealed optical engine, and improved airflow make it highly efficient and low maintenance. The laser light source lasts up to 30,000 hours, decreasing maintenance time and the total cost of ownership.

Versatile Installation Capability
The V1700 is a versatile installation projector that can be used in various settings such as auditoriums, large conference rooms, exhibitions/events, museums/galleries, theatres/halls, houses of worship, and signages.

Upgrade your projection experience with the Eiki V1700.

Key Features

• 17,000 center lumens bright with 80% uniformity and a 3,000,000:1 contrast ratio.
• Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
• Supports analog and digital video input in all color standards up-to 1080p.
• Supports 4K video input via HDMI.
• Horizontal, Vertical, Corner Keystone, & 6 point Geometric Correction.
• Pincushion/Barrel Correction. Edge Blending.
• Horizontal & Vertical Lens Shift. Wired network control.
• Displays 4:3, 16:9 and 16:10 aspect ratios. Supports most HDTV resolutions.
• Low maintenance filter-less design with sealed optical engine.
• Auto input selection. Built-in Test Patterns.
• Security bar. Kensington ® MicroSaver ® security slot. PIN lock.
• 3 year Projector warranty. 20,000 hour Laser Light Engine warranty.

Technical Specifications

Brightness
17,000 Center Lumens
Contrast Ratio
3,000,000:1
Illumination Uniformity
80%
Resolution and Aspect Ratio
WUXGA (1920×1200), 16:10
Color Reproduction
10-bit (16.7 million colors)
Projection Light Source
Laser (Blue) + Phosphor
Estimated Light Source Life
20,000 hours
Total Pixels
6,912,000 (1920×1200) x 3
Imaging System
1.0 in (25 mm) inorganic LCD Panels x 3
Scanning Frequency
Auto: H Sync. 15-100 KHz, V Sync. 24-85 Hz
Pixel Clock
up-to 160 MHz
Lens
Optional Lenses Available – See lens chart
Image Diagonal
60-500 in (152.4-1270 cm)
Image Width
4.2-35.3 ft (1.3-10.8 m)
Throw Distance
2.2-260.0 ft (0.67-79.2 m)
Lens Shift
V: +/- 65% H: +/- 25%
Projector Elevation Adjustment (legs)
Up-to 1 °
Maximum Pitch
Up-to 360 ° Installation
Vert/Horiz. Keystone Correction
Digital: V: +/- 30 ° H: +/- 30 °, Corner Keystone
Image Orientation
Normal, Reversed, Inverted
Local Control / Power Management
Full Function / Auto Shutdown
Remote Control
Wireless / Wired x 2 (In/Out)
RS-232 Control
Dsub9 x 2 (In/Out)
LAN Port
RJ45 x 1
Computer Input in Pixels
up-to 1600×1200 (4:3), 3840×2160 (16:9)
Analog 4×3 Inputs
UXGA, SXGA+, SXGA, XGA, SVGA, VGA
Analog Wide Inputs
WUXGA, WSXGA+, WXGA
Digital 4×3 Inputs
UXGA, SXGA+, SXGA, XGA, SVGA, VGA
Digital Wide Inputs
4K, WUXGA, WSXGA+, WXGA
Video Formats
NTSC / PAL / SECAM
Video Input Analog
480i/p, 576i/p
Video Input Digital
480p, 576p, 720p, 1080i/p
Image Signal Resizing
Smart Scaling Technology

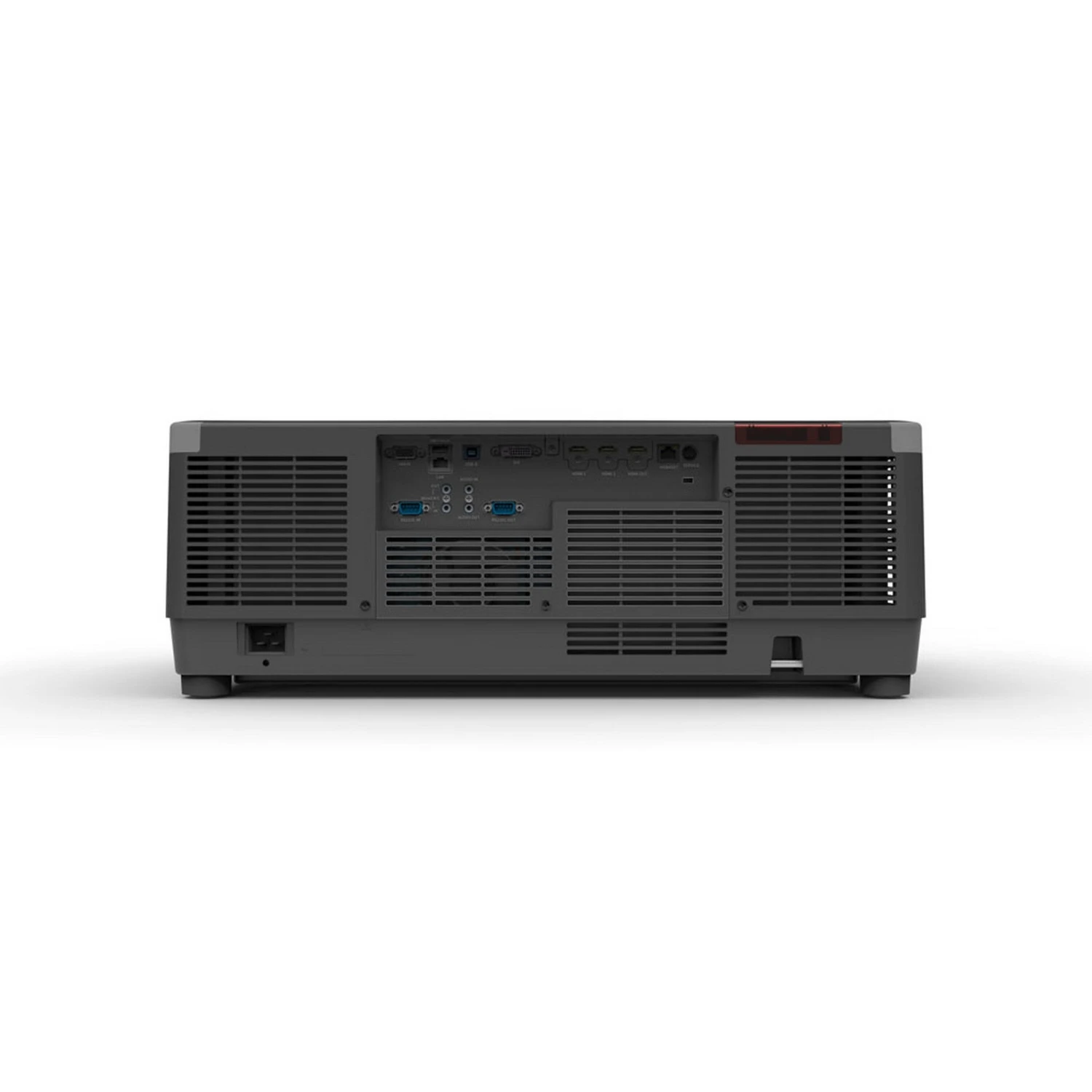

Image Signal Inputs
Computer 1
Dsub15 x 1
Digital Video (w/ HDCP)
HDMI x 2
Digital Video (w/ HDCP)
DVI-D x 1
HDBaseT
RJ45 x 1
USB-A – Memory Viewer
USB Type A x 1
USB-B – USB Display / Firmware
USB Type B x 1
Audio Signal Inputs
Computer Audio: MiniStereo x 1
Outputs
Digital Video: HDMI x 1
Audio Output: Variable, Stereo: MiniStereo x 1
Fan Noise (Eco / Normal)
42 dB / 46 dB
Cabinet Size (HxWxD) – excluding legs
9.1 x 23.6 x 19.4 in (23.2 x 59.9 x 49.3 cm)
Weight – without lens
63.7 lb (28.9 kg)
Packaged Cabinet Size (HxWxD)
5.0 x 29.7 x 25.2 in (38.0 x 75.5 x 64.0 cm)
Packaged Weight
75.0 lb (34.0 kg)
Operating Temperature
41-104 °F (5-40 °C)
Electrical Safety Compliance
IEC / UL / cUL
Electromagnetic Compatibility
FCC Class B, CE Mark
Power Requirements
100-240V AC, 50/60 Hz
Power Consumption
.5 W in Eco Standby mode, up-to 1,155 W
Heat
3,941 BTU
Security Facilities
Kensington ® Security Slot
Limited Warranty: to the original end use customer only
Projector
*3 years / 6,000 hours
Laser Light Engine only
*3 years / 20,000 hours use
*(whichever occurs first)
