Electro-Voice EVOLVE Truss Mount Kit, Black(Electro Voice Evolve Truss Mount Kit Black)

Electro-Voice EVOLVE Truss Mount Kit, Black

The EVOLVE WMK (wall-mount kit) and EVOLVE TM-B (truss-mount bracket) enable users to mount the column speaker array of an EVOLVE 30M, 50 or 50M system at a greater height or distance from its dedicated subwoofer than the provided distance pole allows.

The kits allow users more acoustic and aesthetic flexibility when using an EVOLVE system. For example, the array can be wall-mounted or truss-mounted at an increased height for a longer throw into the listening area; the subwoofer can be stowed away from the array for a more streamlined stage setup or to save space.

Four WMK options are available, equipped with either Phoenix-style / Euroblock or NL4 connectors and finished in black or white. The TM-B is equipped with NL4 connectors and comes in black.

Key Features

• Innovative mounting system for simple and secure installation of EVOLVE 30M, EVOLVE 50 and EVOLVE 50M systems, available in black only.
• Sturdy truss-mount bracket works with M10 threaded studs found on common truss clamps (truss clamps not included).
• Subwoofer and column adapters equipped with NL4 connectors.
• Use correctly rated speaker cable for optimal performance: wire gauges 1.5 mm² – 2.5 mm² (AWG16 – AWG14).
• For use with truss clamps rated for WLL= 20 kg (44 lb) SF = 5:1.

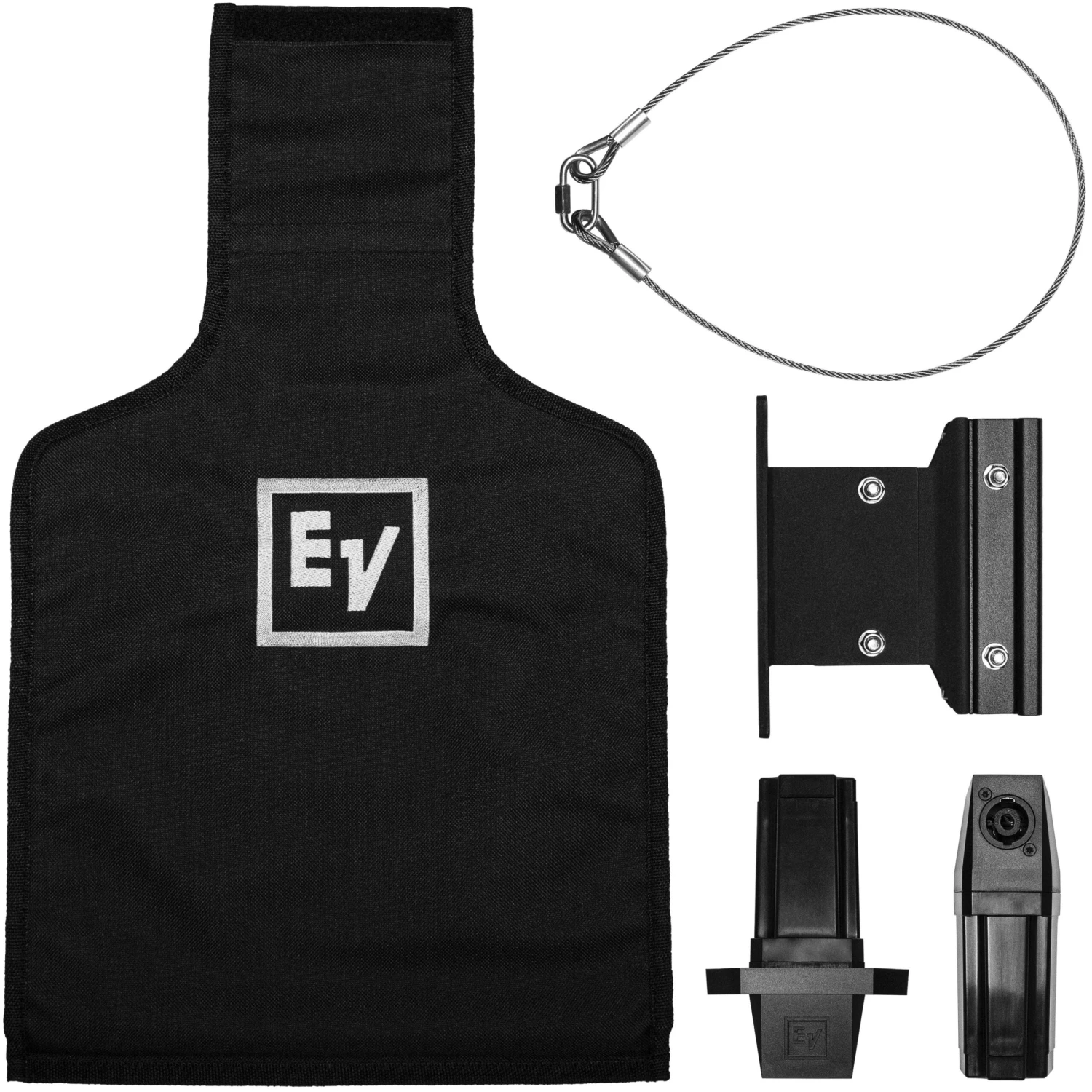

• Includes: truss mount, column speaker adapter, subwoofer adapter, subwoofer amplifier and input cover, secondary auxiliary support cable, installation manual.

Technical Specifications

Color
Black
Dimension (H x W x D) (mm)
80 mm x 400 mm x 400 mm
Dimension (H x W x D) (in)
3.1 in. x 15.75 in. x 15.75 in.
WLL (kg)
5 kg
WLL (lb)
11 lbs
Weight (kg)
1.35 kg
Weight (lb)
3 lb
Shipping weight (kg)
1.80 kg
Shipping weight (lb)
4 lb
