Electro-Voice ZX1i-90 8-Inch Two-Way Full-Range Indoor / Outdoor Loudspeaker Black(Electro Voice Zx1i 90 8 Inch Two Way Full Range Indoor Outdoor Loudspeaker Black)

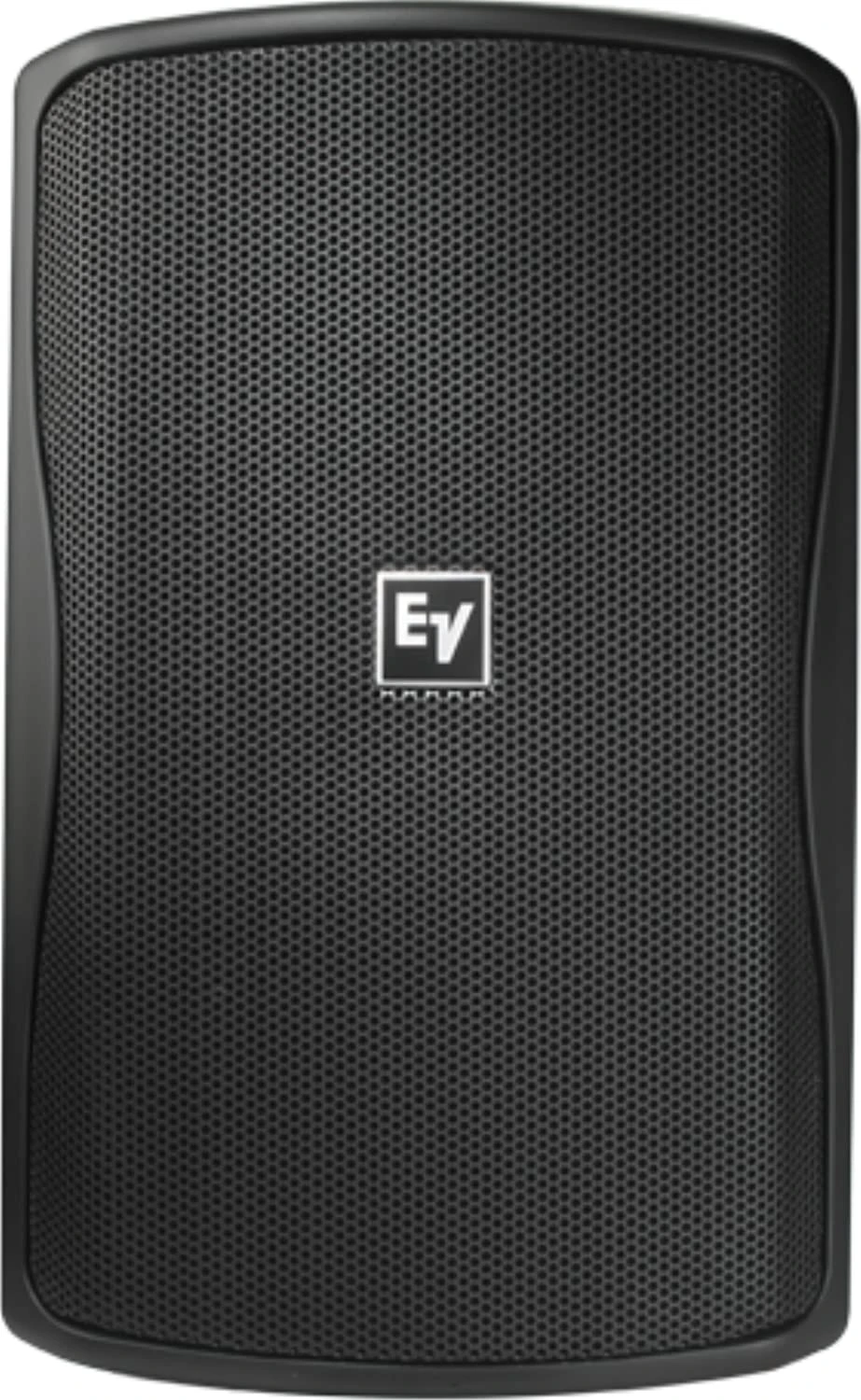

Electro-Voice ZX1i-90 8-Inch Two-Way Full-Range Indoor / Outdoor Loudspeaker Black

The Electro-Voice ZX1i90 8-Inch Two-Way Full-Range Indoor / Outdoor Loudspeaker | Black is a passive, full-range, 2-way indoor/outdoor installation loudspeaker, with a durable all-weather enclosure and water-resistant steel grille, housing an 8″ woofer and a 1″ compression driver in a rotatable horn. The speaker features a snap-on surface mount and a coverage pattern suitable for long-throw and cluster install applications.

Key Features

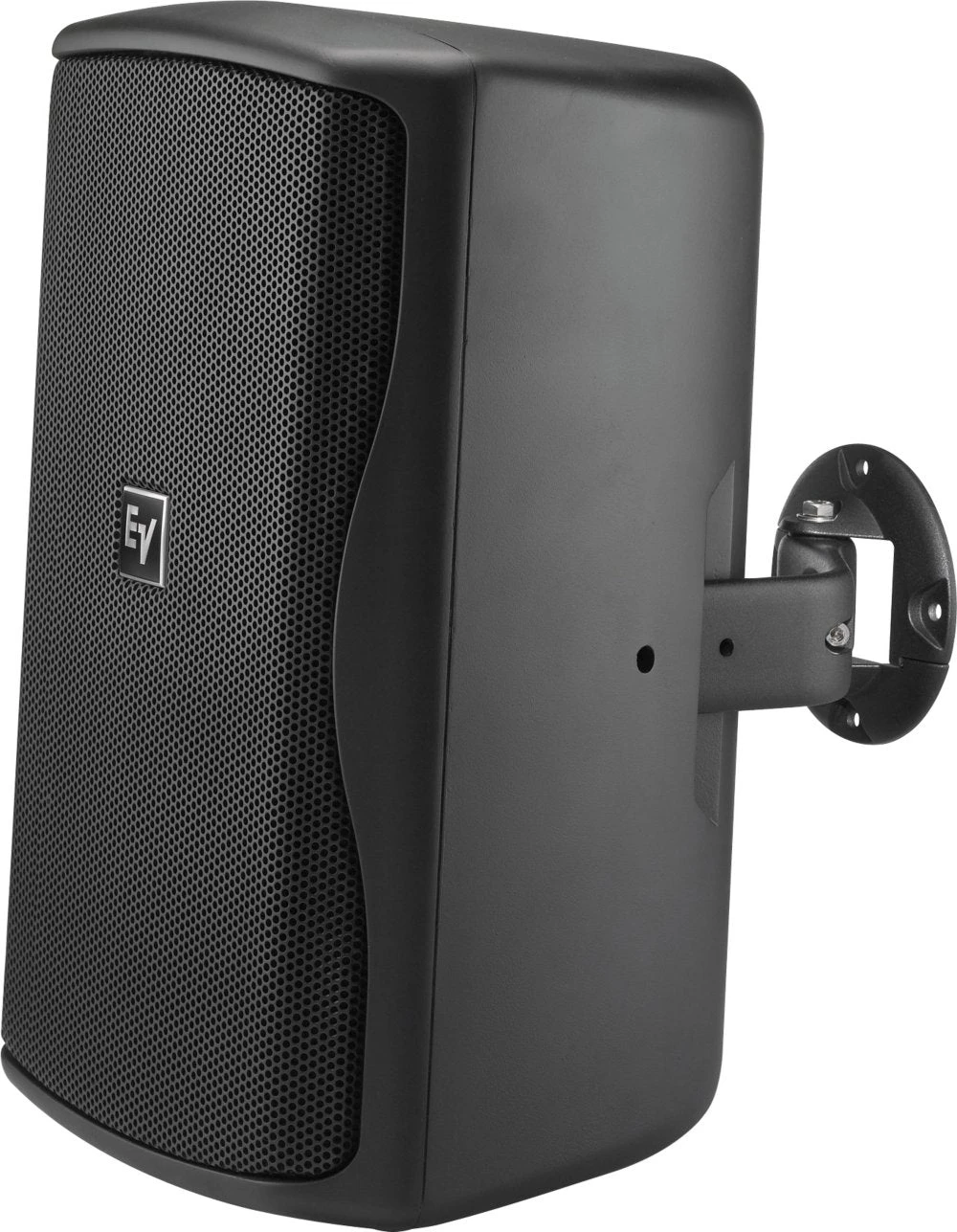

• Integrated QuickSAMTM Heavy-Duty Strong-Arm Mounting Bracket Included
• Indoor/Outdoor Design – Meets IEC 529, IP44 & MIL810 Environmental Specs
• ASCTM Automatic Saturation Compensation
• EV8L 8” Weatherized Cone High-Output LF Transducer
• DH2005 1” Exit True Compression Driver
• 90° x 50° Coverage Patterns
• Rotatable Horn Design
• 200W Continuous, 800W Peak Power Handling
• High Sensitivity, 123 dB Maximum SPL

Technical Specs

Frequency Response (-3dB)

60 Hz – 20 kHz

Frequency Range (-10dB)

48 Hz – 20 kHz

Rec. Hipass Frequency

40 Hz

Axial Sensitivity (90degrees)

94 dB (1W/1m)

Max Calculated SPL (90degrees)

123 dB

Horizontal Coverage

90degrees or 100degrees

Vertical Coverage

50degrees or 100degrees

Enclosure Rotation

+/-35degrees

Enclosure Sweep

+/-45degrees

Rated System Power

200 W Cont., 400 W Prog., 800 W Peak

LF Transducer

EV8L, 8 in. (203mm) Driver

HF Transducer

DH2005, 1 in. (25.4mm) Exit Compression Driver

Crossover Frequency

1.7kHz

Nominal Impedance

8Ohms

Minimum Impedance

6Ohms

“T” Version Wattage Taps

70 V – 6, 12.5, 25, 50, 100, 8 Ohm bypass

100V – 12.5, 25, 50, 100, 8 Ohm bypass

Connectors

4-Pin Phoenix Connector

Enclosure Material

High Impact Polymer

Suspension

Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket

Grille

Polyester Powder Coated, 18GA Galvanized Steel

Dim (H x W x D)

451mm x 282mm x 263mm (17.75” x 11.12” x 10.35”)

Net Weight

8.4kg (18.5lbs.) without Transformer

10.4kg (23.0lbs.) with Transformer
