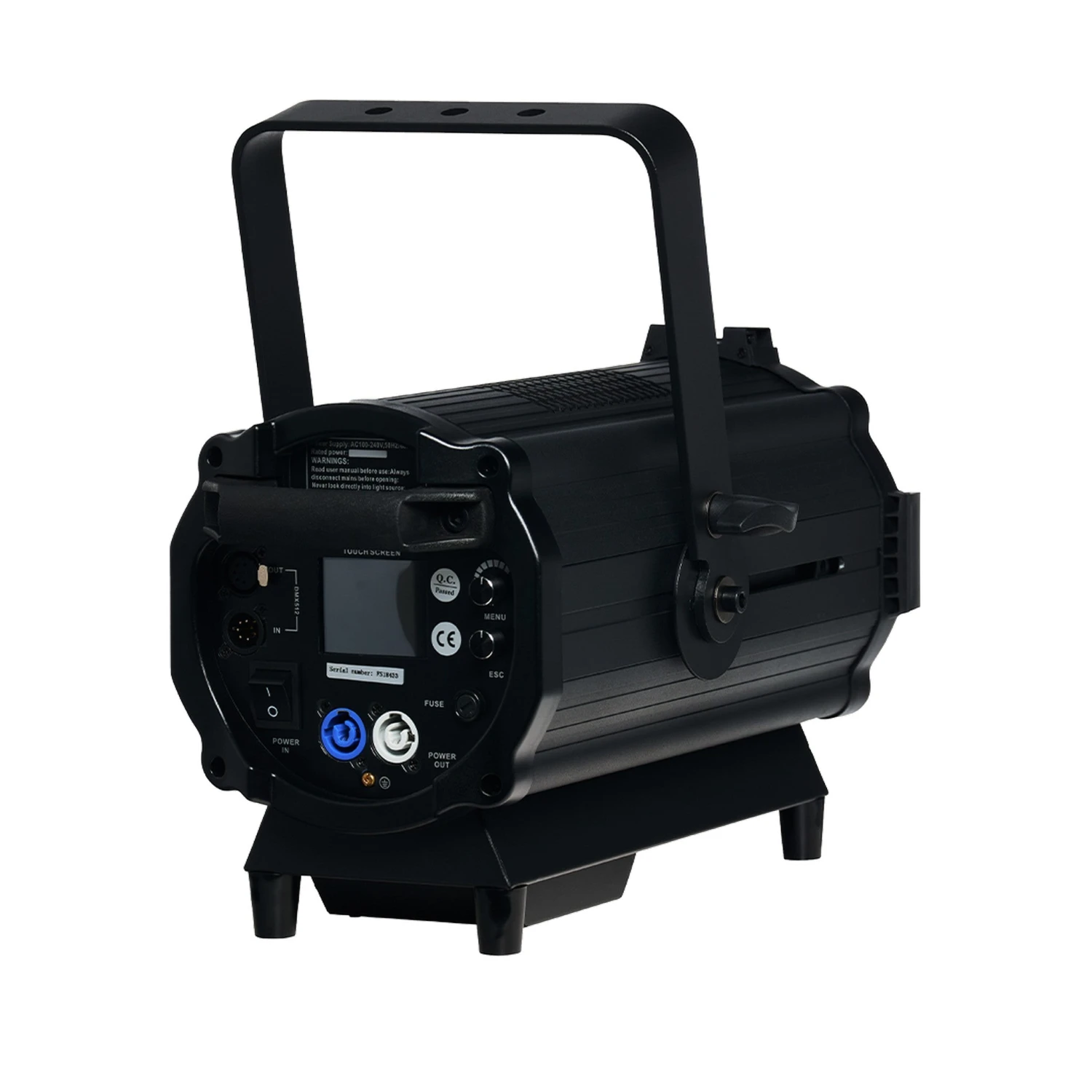

elektraLite Stingray Fresnel COB LED Stage Light Fixture

The elektraLite Stingray Fresnel redefines traditional Fresnel lighting by integrating advanced LED technology into a robust, user-friendly fixture. Utilizing a single COB LED emitter, it offers options of 300W (Warm White/Cool White), 350W (RGBW), and 600W (Variable White) outputs, delivering high-quality, consistent illumination with a CRI of 95. Its electronic zoom function ranges from 15° to 50°, providing versatile beam control suitable for various applications.

Designed for diverse environments such as classrooms, galleries, worship spaces, and studios, the Stingray Fresnel ensures even color temperature distribution across the field without hot spots. The fixture’s intuitive interface allows for both DMX/RDM and manual control, facilitating seamless integration into existing setups. Its “cool to touch” aluminum monocoque housing enhances safety and durability, making it a reliable choice for professional lighting needs.

Key Features:

• Single COB LED options: 300W (WW/CW), 350W (RGBW), 600W (VW)
• High CRI of 95 for accurate color rendering
• Electronic zoom range from 15° to 50°
• 100% no-step dimming with smooth transitions
• Manual and DMX/RDM control via 5-pin XLR connectors
• LCD touch screen with push on/off rotary controls
• PWM frequency adjustable from 500Hz to 25KHz

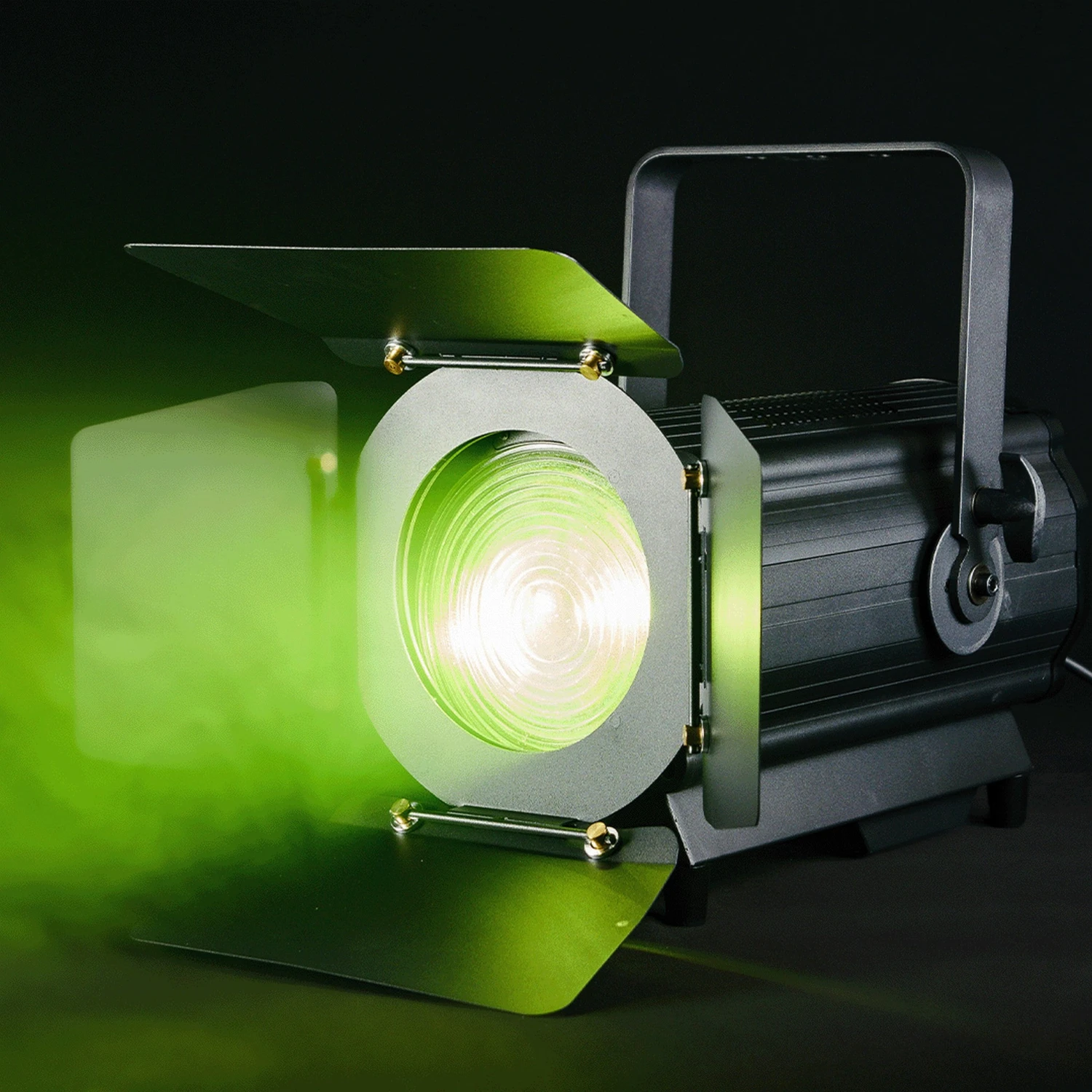

• Includes 4-way barn doors for precise beam shaping
• Powercon in/out for easy daisy-chaining

Technical Specifications:

Power Consumption: 450W (WW/CW), 500W (RGBW), 750W (VW) at 120V RMS
Electrical: Multi-voltage; AC 100-250V – 50/60Hz RMS
Housing: Aluminum monocoque design
Materials: Corrosion-resistant hardware
Yoke: Rigid flat steel
Light Engine: Single COB LED (300W WW/CW, 350W RGBW, 600W VW)
Refresh Rate: Variable
CRI: 95
Optics/Lensing: Variable PC lensing
Control: Manual or DMX-512 (in and thru) via 5-pin XLR; RDM on board
Certifications: ETL listed
Dimensions: Length: 17″ (432mm), Width: 11.5″ (292mm), Height: 10″ (254mm)
Weight: 20.0 lbs / 9 Kgs

Package Contents:

• Single yoke
• Safety cable
• Powercon input cable to Edison connector
• Powercon output connector
• 4-way barn doors
