Eliminator Lighting Mini Par Bar Portable LED Par Can System(Eliminator Lighting Mini Par Bar Portable Led Par Can System)

Eliminator Lighting Mini Par Bar Portable LED Par Can System

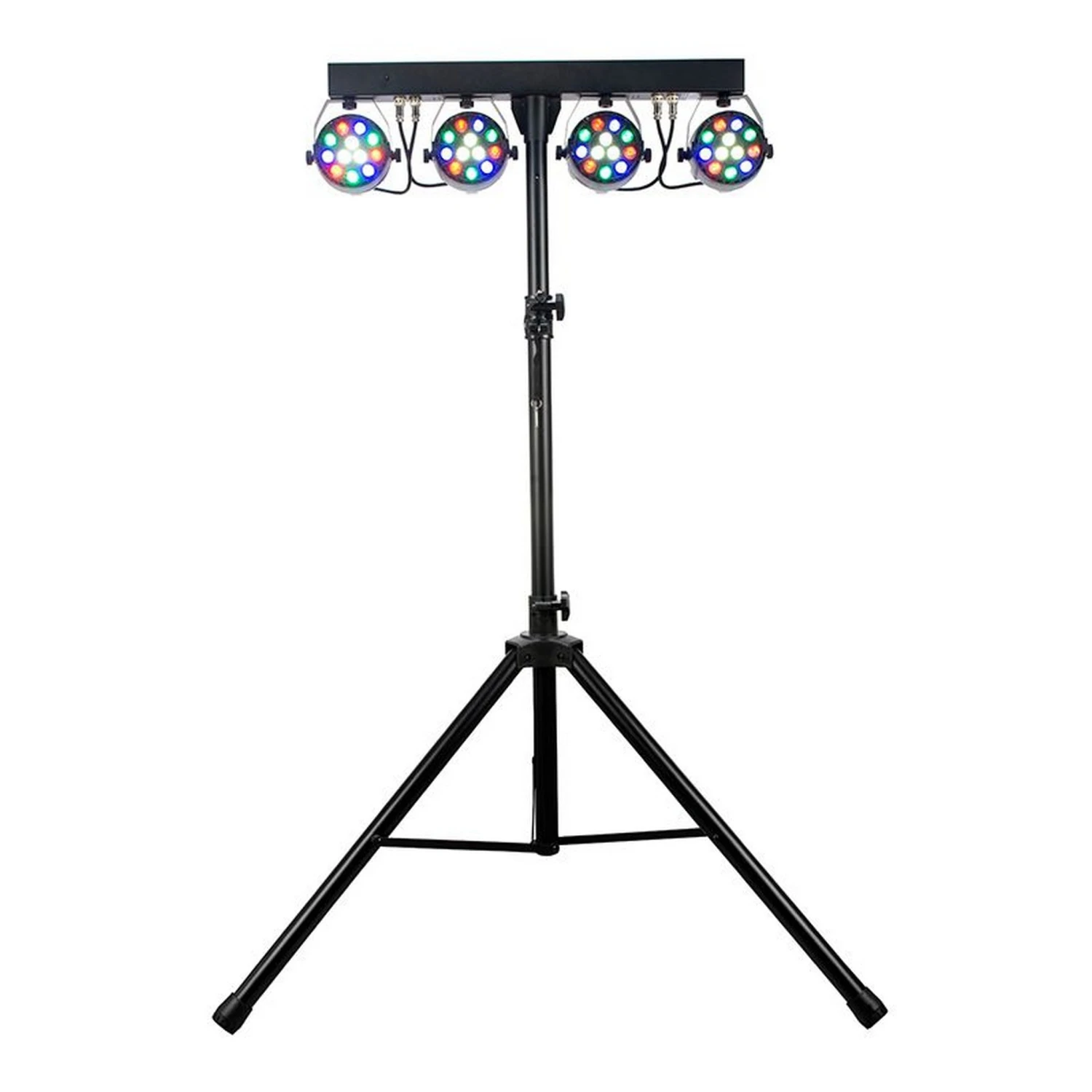

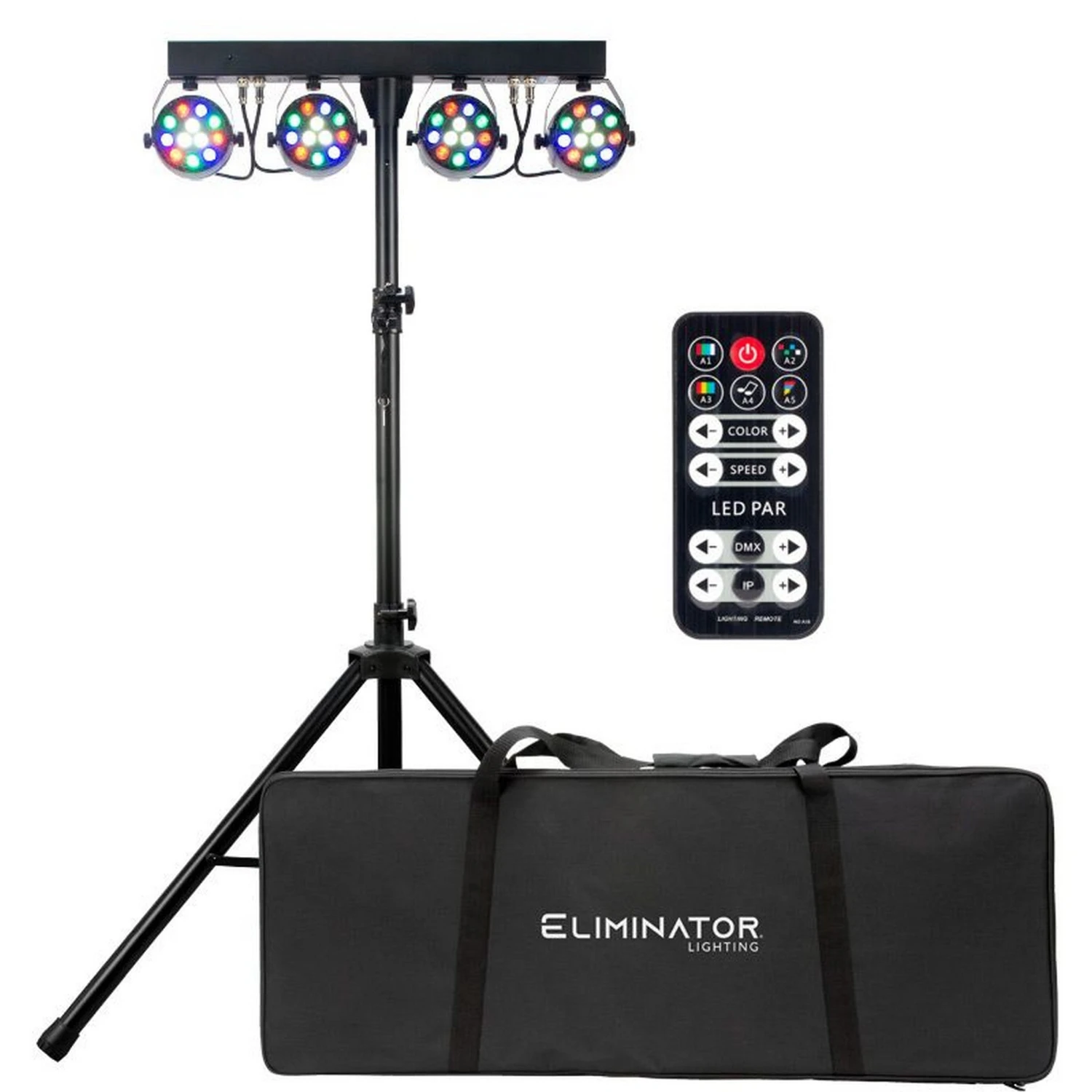

The Eliminator Lighting Mini Par Bar will bring any room to life with washes of colored light. The all-in-one system includes four plastic LED Pars mounted on a linear base with a single power source, a metal tripod stands to mount the linear base on, a wireless remote and a transportation bag. Each LED Par fixture includes twelve 1-Watt LED (RGBW) and may be manually rotated so that users can aim the light in a desired direction.

The Mini Par Bar is a very versatile system allowing user to use the fixtures portably on the supplied tripod stand, in a fixed installation using the mounting points on the linear base or set on the ground used as foot lighting. This flexibility allows for a wide variety of uses: stage lighting, bands, DJs, nightclubs, lounges, small bars and portable churches.

The lighting system is easy to use with various control options. Use the supplied wireless remote or connect to DMX control to use in sound active mode, DMX, auto or link multiple systems together in a Primary/Secondary operation.

Key Features

• Light source: 4 fixtures with 12x 1-Watt RGBW (3 red, 3 green, 3 blue, 3 white) LEDs each
• Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers

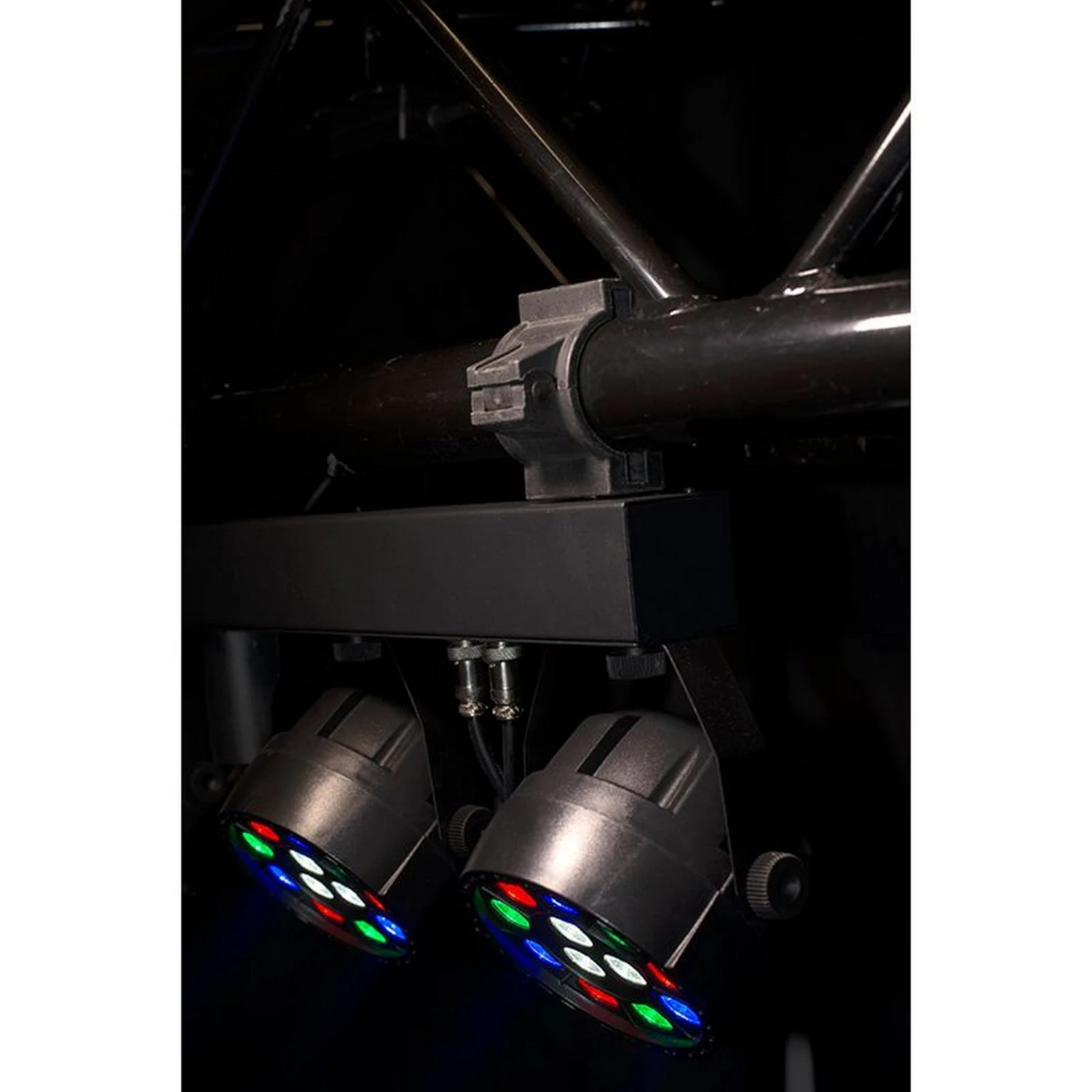

• May be used with supplied tripod, mounted on truss or used on the ground
• Emits less heat on performers on stage as opposed to conventional stage lighting
• 25-degree beam angle

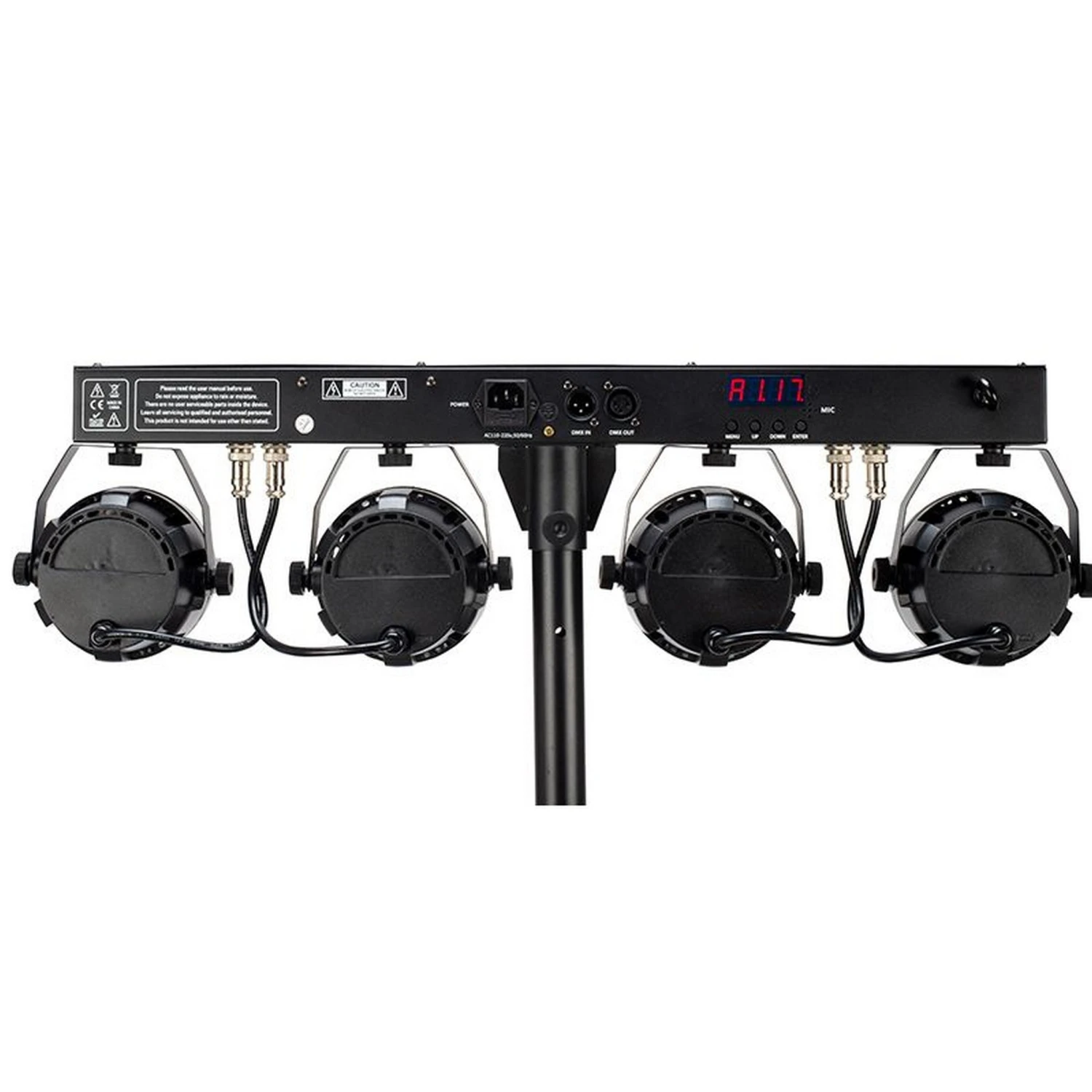

• 4-summary LED display menu control system
• 4 control modes: Sound active, DMX, Auto or linking Primary/Secondary
• 8 DMX channels
• 3-pin DMX In/Out
• With Wired Digital Communication Network

Technical Specifications

Max power
80W
Multi-voltage operation
AC 100V-240V 50/60Hz (IEC Input)
Stand Height
47.25” / 1200mm (minimum); 76.375” / 1940mm (maximum)
Bar Dimensions
28.7in (730mm) x 8.1in (205mm) x 3.5in (89mm)
Dimensions (in carry bag)
1030x150x395mm
Tripod Stand Dimensions
Tripod stand footprint (fully open)
33.9in (860mm) x 29.9in (760mm)
Height: (fully extended without bar attached)
74.4in (1890mm)
Height: (fully extended with bar attached)
76.4in (1900mm)
Weight of the bar with lights
6 lbs. / 2.7kg
Weight of the bar with lights and stand
12.8 lbs / 5.8kg
IR Wireless Control features
Power On/Off summary
All On
Quick color change
Slow color change
Strobe
Color adjustment
Chase speed adjustment
DMX channel selection
