Focusrite RedNet AM2 Stereo Headphone/Line Out Dante Interface With PoE(Focusrite Rednet Am2 Stereo Headphone Line Out Dante Interface With Poe)

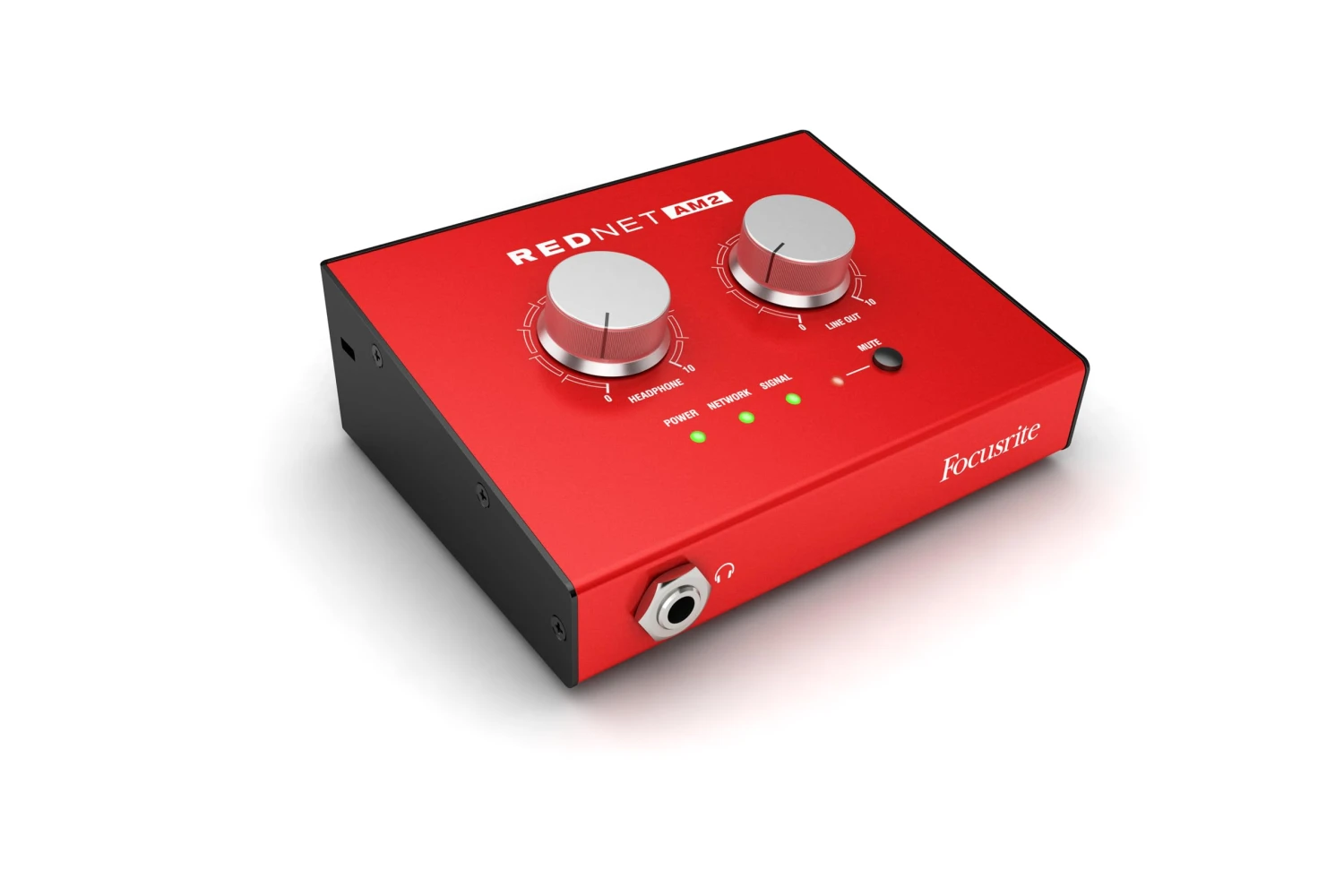

Focusrite RedNet AM2 Stereo Headphone/Line Out Dante Interface with PoE

The Focusrite RedNet AM2 is an advanced, compact stereo headphone and line-out interface designed specifically for Dante audio-over-IP networks. This Power-over-Ethernet (PoE) supported device offers exceptional audio quality and a robust build, making it the ideal choice for professional audio monitoring in various environments. Whether you need to monitor high-SPL environments or require flexible and high-quality audio output with minimal latency, the RedNet AM2 is engineered to deliver top-notch performance.

This versatile device features powerful headphone amplification capable of driving both high and low impedance headphones, making it suitable for a wide range of headphones. The rear-panel XLR outputs provide line-level signals up to 24dBu with accessible level control and a mute switch. Moreover, the RedNet AM2 is easy to mount with its threaded mic stand boss, offering flexibility in placement for on-desk setups or performers’ access. Its integrated network switch facilitates the daisy-chaining of network devices, simplifying complex audio network setups.

The aluminum and steel chassis ensures durability while maintaining a lightweight design, making the Focusrite RedNet AM2 a reliable and portable solution for audio professionals. Additionally, it supports up to 24-bit, 96kHz sampling rates, guaranteeing crystal-clear audio performance.

Key Features

• Stereo line output and headphone for Dante audio-over-IP networks
• Power-over-Ethernet supplied: IEEE 802.3af compliant
• Up to 24-bit, 96kHz sampling rates
• Robust steel and aluminum chassis
• Powerful headphone output even with high-impedance headphones
• Up to 24dBu line output levels
• Independent level control of headphone and line outputs
• Mute switch for line output
• Mic stand mount
• Kensington security slot
• Integrated network switch allowing daisy-chaining of network devices

Specifications

• 0 DBFS Reference Output Levels: 18 or 24dBu (switchable)
• Frequency Response Output: 20Hz – 20kHz +/-0.05dB
• THD N Output: <100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input
• Dynamic Range: 120dB A-weighted (typical), 20Hz – 20kHz
• Output to Output: <100dB unweighted, 20Hz – 20kHz; -20dBFS input
• 0 DBFS Reference Levels Headphones: 19dBm
• Headphone Frequency Response: 20Hz – 20kHz +/-0.05dB
• Headphone THD N: <100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input
• Headphone Dynamic Range: 118dB A-weighted (typical), 20Hz – 20kHz
• Output Impedance: 5O
• Headphone Impedance: 32O – 600O
• Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
• Clock Sources: Internal or from Dante Network Master
• Minimum Latency: 1ms
• Headphone Outputs: 1 x 1/4″ stereo jack
• Line Outputs: 2 x Male XLR
• PSU (PoE and DC): 1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector
• Network: Green LED indicates device is network master or network slave, shows valid network lock
• Power LED: Illuminates Green when PoE is connected and Red when DC power is connected
• Signal: Signal indicator LED for both network input channels
• Mute: Red LED
• Control Functions: 2 x Pots
• Height (Chassis Only): 48mm/1.89″
• Height (Inc. Pots and Feet): 58mm/2.28″
• Width: 140mm/5.51″
• Depth (Chassis Only): 106.5mm/4.19″
• Depth (Inc. Connectors): 116mm/4.57″
• Weight: 0.81kg
• Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard
• DC Power Supply: 1 x 12V 1.2A DC Power Supply
• Power Consumption PoE: 11.0W – DC: 9.8W
• Operating Temperature: Operates at up to an ambient temperature of 50 degrees Celsius

Package Contents

• Focusrite RedNet AM2 Stereo Headphone/Line Out Dante Interface
• 1 x 12V 1.2A DC Power Supply
• User Manual
