Gefen EXT-USB2.0-LR USB 2.0 Extender

Gefen’s USB 2.0 LR extends high-speed USB devices simply and reliably. The compact USB 2.0 LR Sender/Receiver units install in minutes and fully support USB versions (V1.1 and V2.0), at speeds of up to 480 Mbps — essential for high-performance applications such as digital imaging and interactive gaming. The two-port USB 2.0 LR hub is ideal for remotely accessing laser printers, scanners, web cameras, external hard drives, CD/DVD burners, and flash drives. Additional applications include security, industrial control, digital signage, scientific data acquisition and much more due to the universal implementation of USB standards.

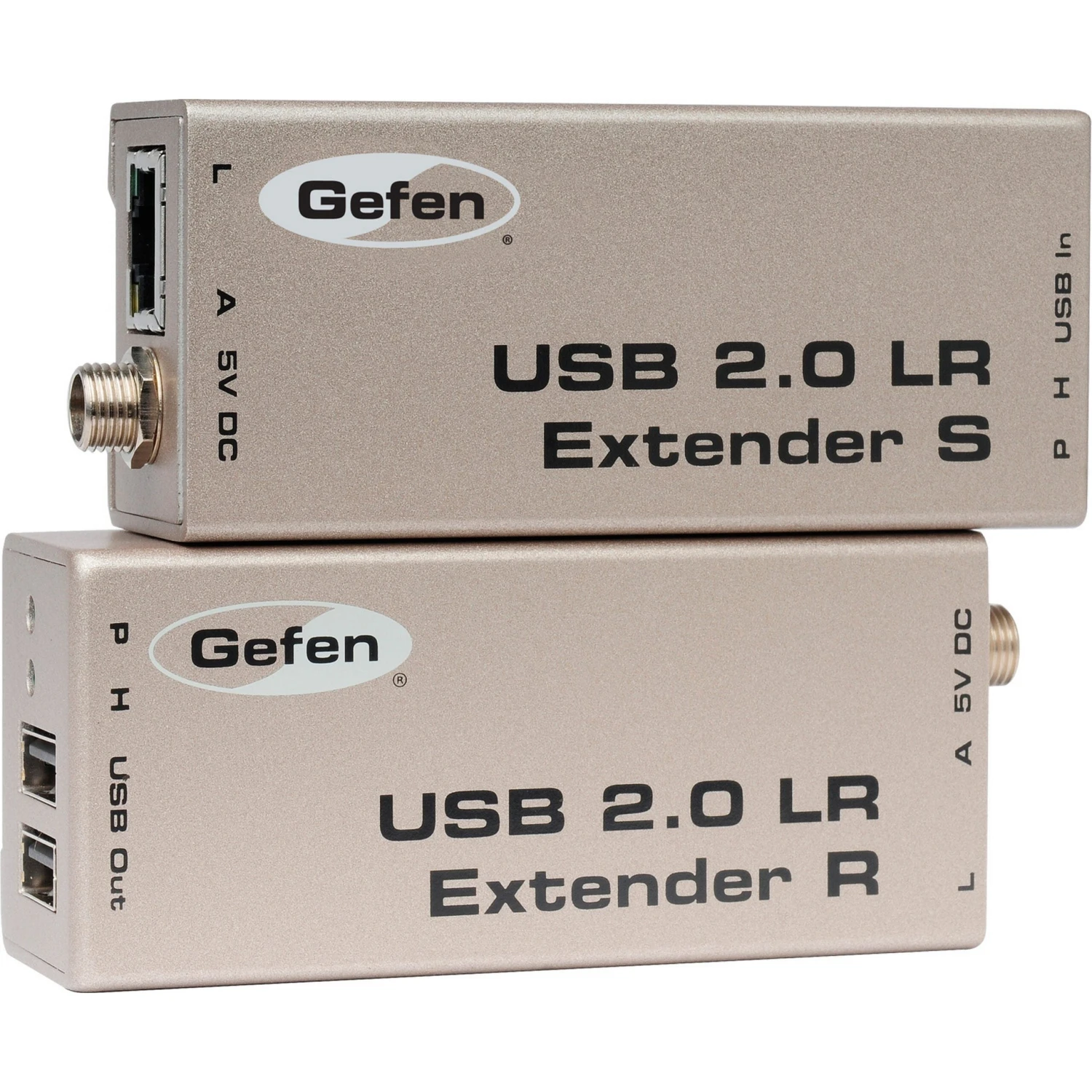

Gefen’s USB 2.0 LR Sender unit connects to the host (for example, a computer). The Receiver unit is connected to USB device(s) at the desired extended location. A CAT-5 cable is installed between the two modules. The 5V power supply is attached to the Receiver. Any USB device(s) plugged into the Receiver are now seen by the host. LEDs on the Sender and Receiver units indicate power, CAT-5 link status, and data transmission activity.

Key Features

• Operate USB 2.0 peripherals up to 330ft (100m) from a computer.
• Supports low and high-speed USB.
• Uses industry-standard CAT5, CAT5e, or CAT6 cable.
• Supports all major operating systems
• True plug-and-play, 100% hardware solution with no drivers required.
• Operates at full 480 Mbps speed when running in USB 2.0 mode.
• Receiver supports up to 2 USB powered connections at 500 mA each.

Technical Specifications

USB 2.0 Speed
480 Mbps.
Link Connector (Sender/Receiver)
RJ-45 Shielded.
USB Connector (Sender)
(1) USB type B.
USB Connectors (Receiver)
(2) USB type A.
Two 500 mA DC powered USB ports at Receiver.
Power Supply (Sender/Receiver)
5V DC, locking.
Power Consumption (Max)
2.5W (Sender) 10W(Receiver).
Operating Temperature
+32 Degrees F to +122 Degrees F (0 Degrees C to +50 Degrees C).
Storage Temperature
-4 Degrees F to 158 Degrees F (-20 Degrees C to 70 Degrees C).
Operating Humidity
20% to 80% relative humidity, non-condensing.
Storage Humidity
10% to 90% relative humidity, non-condensing.
Dimensions (W x H x D) (Sender/Receiver)
3.7” x 1.4” x 1.8” (94mm x 36mm x 46mm).
Shipping Weight
2 lbs.
Item Includes
(1) USB 2.0 Extender over CAT5 LR – Sender unit (EXT-USB2.0-LRS)
(1) USB 2.0 Extender over CAT5 LR – Receiver unit (EXT-USB2.0-LRR)
(2) 5V DC Power Supplies (EXT-PS526AIP-LP)
(1) 6 ft. USB Cable (CAB-USB-6)
(1) Quick-Start Guide (QSG-USB2.0-LR)
