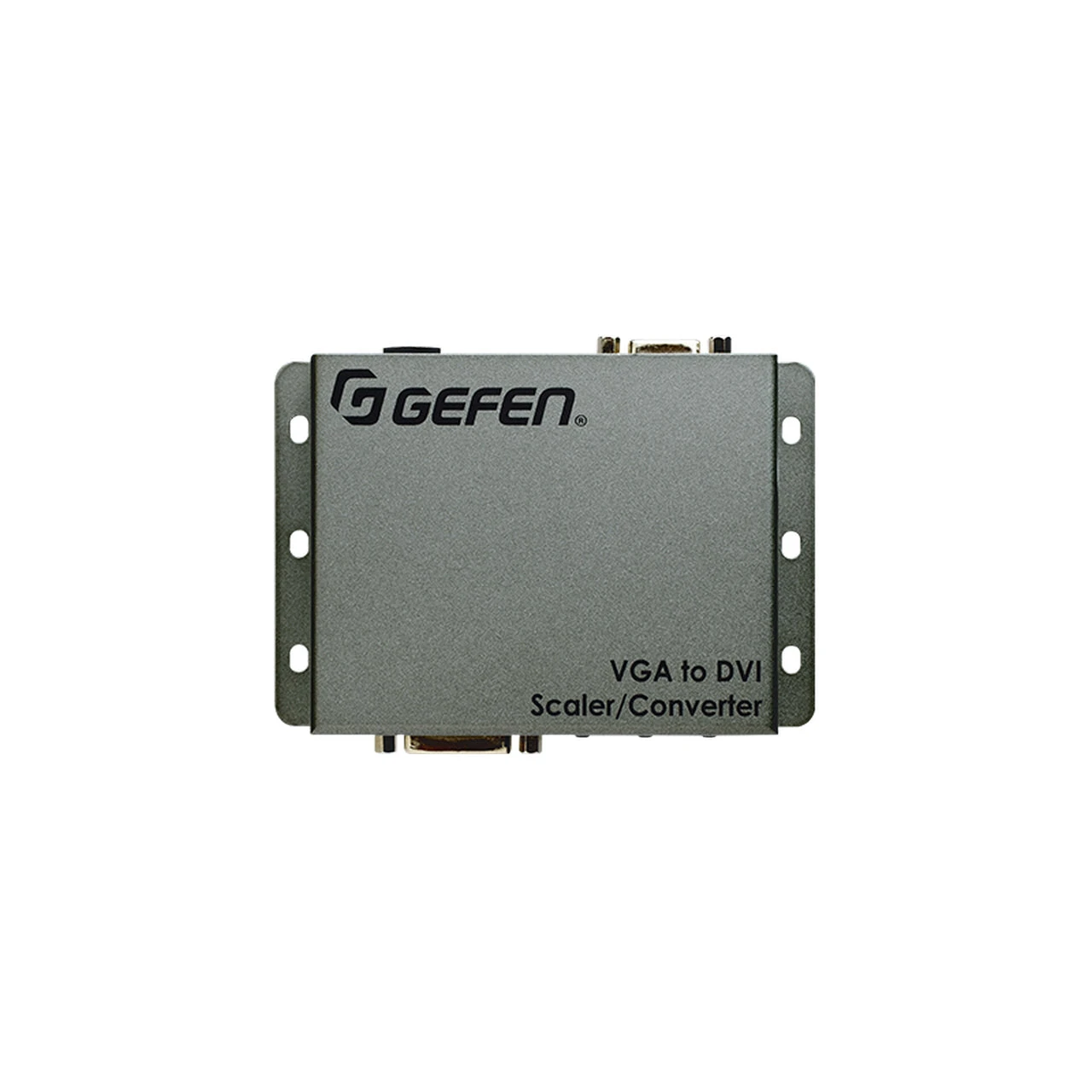

Gefen EXT-VGA-DVI-SC VGA to DVI Scaler Converter

The Gefen EXT-VGA-DVI-SC scales and converts video from a VGA source to a DVI output. Video can be scaled up to 1080p Full HD and 1920 x 1200 (WUXGA). An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.

Key Features

• Converts and scales VGA to DVI
• Input resolutions up to 1920 x 1200 (WUXGA)
• Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA)
• On-screen display (OSD) menu allows easy set-up and control
• Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
• Test Pattern Generator for quick system configuration
• Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings
• USB port for use with Gefen Syner-G
• Wide power supply operating range (6V to 24V DC)
• Locking power supply connector
• Surface mountable

Technical Specifications

Maximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 165 MHz
Video Input Connector: (1) VGA HD-15, female
Video Output Connectors: (1) DVI-I, 29-pin, female
(digital only)
USB Connector: (1) Mini-B
Menu/Navigation Switches: (3) tact-type
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
Power Consumption: 2W maximum
Operating Temperature: +32 to +122 degrees F (0 to +50 degrees C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 degrees F (-20 to +85 degrees C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 4.9″ x 1″ x 3.2″
(123mm x 26mm x 82mm)
Unit Weight: 0.4 lbs. (0.2kg)
