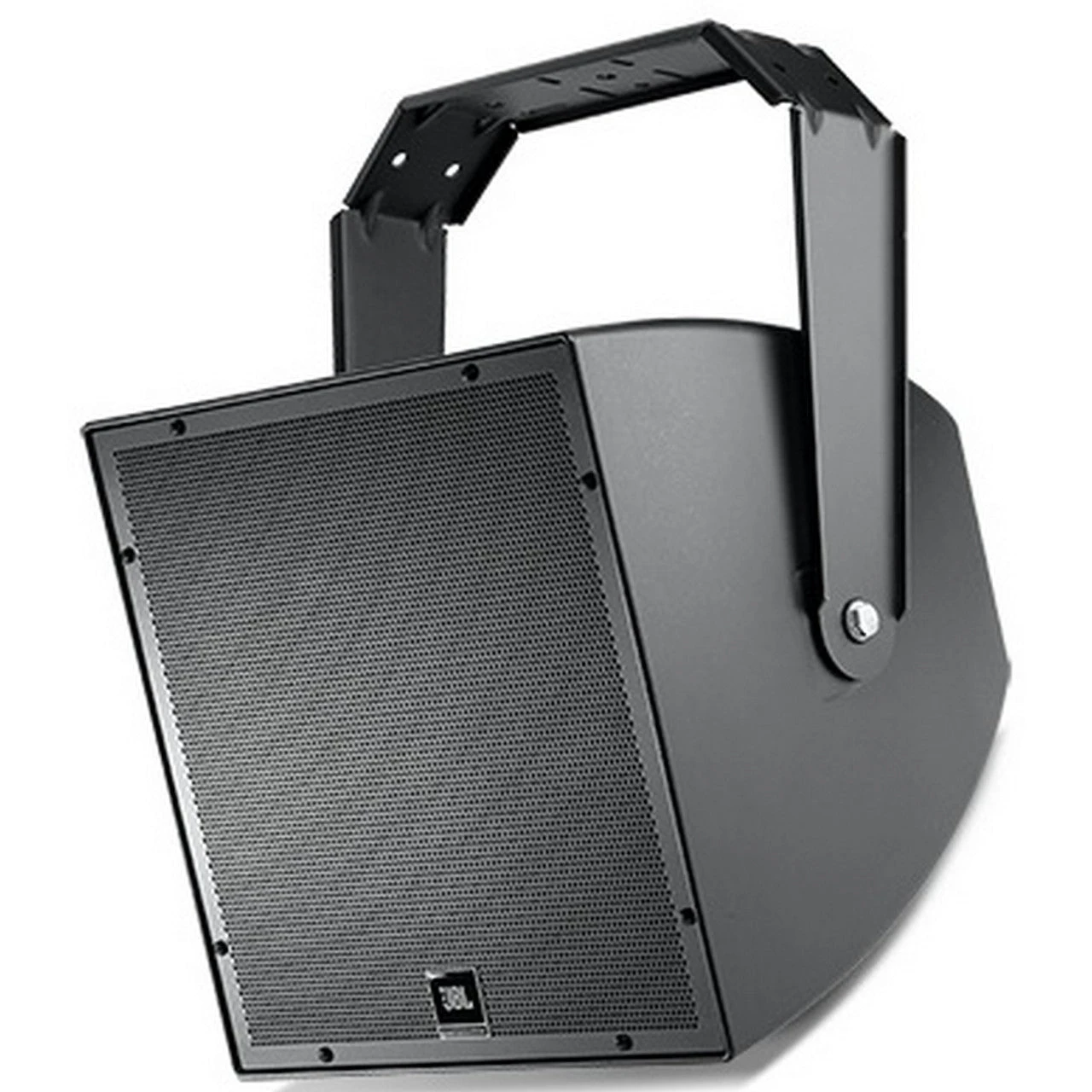

JBL AWC15LF-BK 15 Inch Low Frequency Kevlar Loudspeaker Black(Jbl Awc15lf Bk 15 Inch Low Frequency Kevlar Loudspeaker Black)

JBL AWC15LF-BK | 15 Inch Low Frequency Kevlar Loudspeaker Black

The JBL AWC15LF-BK is the ultimate choice when it comes to delivering high-performance low-frequency sound reinforcement in a variety of challenging environments. With its rugged construction and advanced engineering, this compact, highly weather-resistant loudspeaker is perfect for both outdoor and indoor applications. Whether you’re outfitting a stadium, a sports facility, or an outdoor entertainment venue, the JBL AWC15LF-BK ensures exceptional audio quality and durability, even in the most demanding conditions.

Crafted from durable materials, including a Kevlar-reinforced cone and a weather-treated enclosure, the JBL AWC15LF-BK can withstand the elements while providing clear, powerful sound. Its IP56 rating guarantees protection against dust and powerful water jets, making it ideal for use in environments like racetracks, fairgrounds, and water parks. The inclusion of a 500 Watt average power handling capability and a frequency range that extends down to 45 Hz ensures that this loudspeaker can deliver deep, impactful bass notes that enhance any sound system.

Thanks to its versatile design, the JBL AWC15LF-BK can be used in a variety of settings, from themed entertainment venues and cruise ships to outdoor background music systems. It comes equipped with a 300 Watt 70V/100V multi-tap transformer, or can be used in direct 8 low-impedance mode, providing flexibility for different installation requirements. With an exceptional SPL and long throw capabilities, this loudspeaker is a reliable choice for augmenting the low-frequency performance of any audio setup.

Key Features

• Color: Black
• Low frequency reinforcement for outdoor applications
• Highly weather-resistant with an IP56 rating
• 500 Watt power handling (average continuous pink noise)
• Frequency range down to 45 Hz
• 300 Watt 70V/100V multi-tap transformer or direct 8 low-impedance mode

Specifications

• Frequency Range (-10 dB): 45 Hz – 2.2 kHz
• Frequency Response (-3 dB): 70 Hz – 1.2 kHz
• Long-Term System Power Rating (IEC): 500 W (2000 W peak), 2 hrs.; 300 W (1200 W peak), 100 hrs.
• Sensitivity (2.83V @ 1m): 94 dB (Ave. 80 Hz – 300 Hz)
• Maximum SPL: Direct 8: 121 dB (peaks of 127 dB); 300 W Tap: 119 dB (peaks of 125 dB)
• Nominal Impedance: 8 ohms (in Direct mode)
• Transformer Taps: 70V: 300W, 150W, 75W, 38W; 100V: 300W, 150W, 75W
• Low Frequency Driver: 380 mm (15 in), Kevlar-reinforced cone, with weather treatment, 75 mm (3 in) voice coil, long throw
• Enclosure: ABS with Glass enclosure, heavily braced
• Attachment: Two M10 (coarse-thread) points for included U-bracket; M6 secondary safety attachment point on back panel
• Grille: Corrosion-resistant zinc-rich extra-thick powder-coated steel grille, 3-layer assembly with foam and woven poly mesh backing
• Input Connection: CE-compliant covered barrier strip terminals; Barrier terminals accept up to 8 mm outside 4 mm inside openlug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs; Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16″) and 9.0 mm (0.36″)
• Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle; Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs)
• Dimensions: 486 x 486 x 479 mm (19.1 x 19.1 x 18.8) cabinet; 507 mm (19.9 in) depth with gland nut; 546 mm (21.5 in) including bracket extending to back

Package Contents

• JBL AWC15LF-BK 15 Inch Low Frequency Kevlar Loudspeaker
• U-bracket (matches loudspeaker color: gray or black, zinc-rich extra-thick powder-coated steel)
