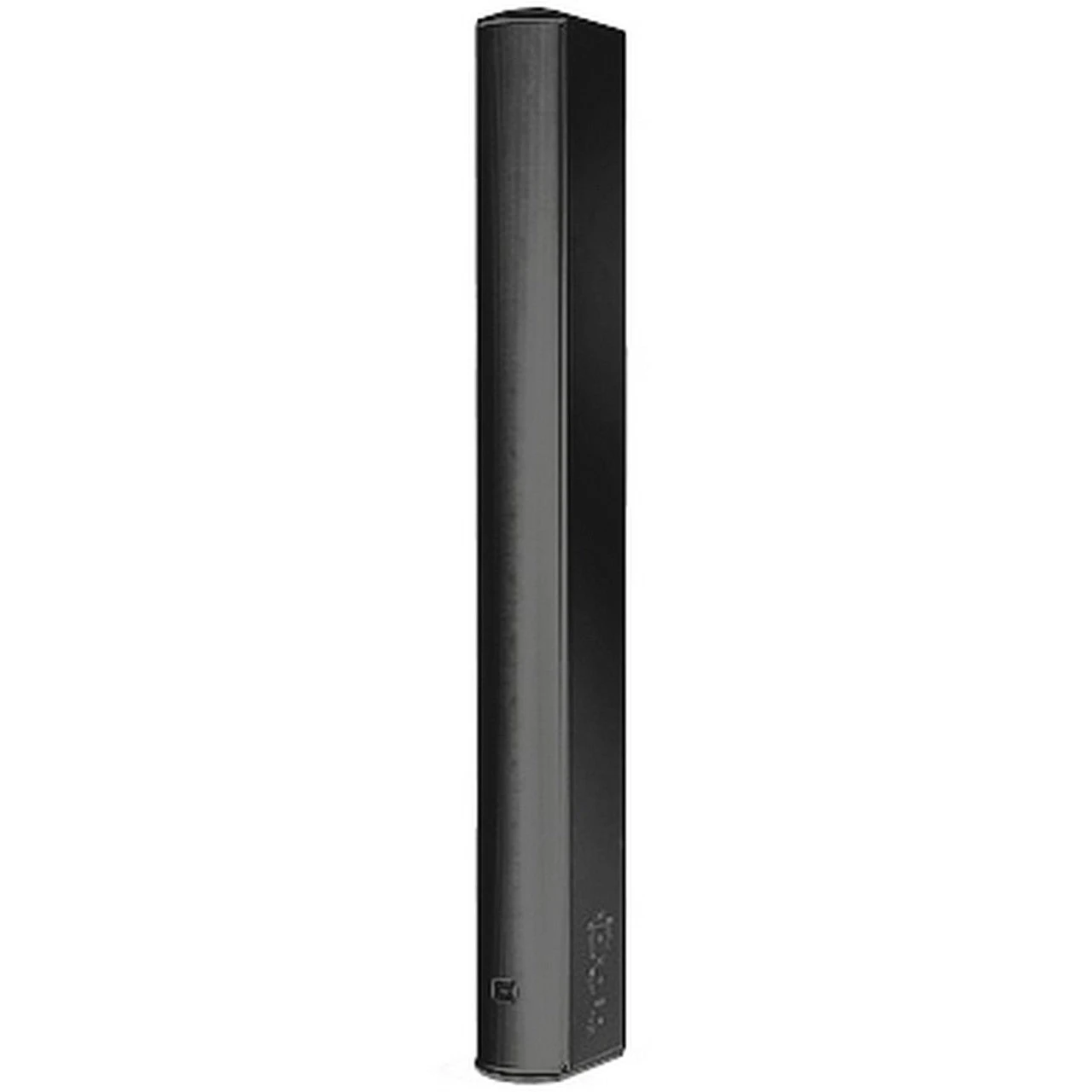

JBL CBT 100LA-LS Line Array Column Loudspeaker, Black(Jbl Cbt 100la Ls Line Array Column Loudspeaker Black)

JBL CBT 100LA-LS | Line Array Column Loudspeaker, Black

The JBL CBT 100LA-LS Line Array Column Loudspeaker brings unparalleled sound quality and control to professionals who demand the best performance in challenging acoustic environments. Featuring the breakthrough Constant Beamwidth Technology, this loudspeaker ensures consistent vertical coverage, eliminating the narrow vertical beaming and out-of-coverage lobing typical of traditional straight form-factor column speakers. It’s EN54-24 compliant when installed with the included MTC-PC2 panel cover, making it suitable for a variety of crucial applications, including voice alarm systems and professional public address systems.

The versatility of the CBT 100LA-LS makes it a top choice for both medium-throw and long-throw applications. A vertical pattern coverage switch allows users to choose between a 40° angle for medium-throw coverage or a 15° angle for long-throw applications. Plus, the switchable voicing feature provides a flat response in music mode or a mid-range presence peak in speech mode, ensuring the optimal performance for any use case. With its durable, IP-55 rated fiberglass reinforced ABS cabinet, the CBT 100LA-LS is built to withstand harsh weather conditions, making it ideal for both indoor and outdoor setups.

Key Features

• Patent-pending Constant Beamwidth Technology for consistent vertical coverage
• EN54-24 Compliant with included MTC-PC2 panel cover
• Switchable vertical pattern coverage: 40° for medium-throw, 15° for long-throw applications
• Switchable voicing: flat response (music mode) and mid-range presence peak (speech mode)
• Dynamic SonicGuard overload protection
• Included swivel (pan)/tilt wall bracket
• Built-in 70V/100V transformer and 8 ohm direct capability

Specifications

• Components: Sixteen 50 mm (2 in) Full-Range
• Frequency Range (-10 dB): 120 Hz – 20 kHz
• Coverage Pattern: Vertical: 15° (narrow mode), 40° (broad mode); Horizontal: 150°
• Sensitivity: Narrow mode – 96 dB (speech), 93 dB (music); Broad mode – 93 dB (speech), 90 dB (music)
• Nominal Impedance: 8 ohms (in Thru mode)
• Power Capacity: 325 W (1300W peak), 2 hrs; 200 W (800W peak), 100 hrs
• Max SPL: Narrow mode – 121 dB (speech), 118 dB (music); Broad mode – 118 dB (speech), 115 dB (music)
• Transformer Taps: 120W, 60W, 30W, 15W (70V only), and 8 ohm thru
• Enclosure: IP-55 rated fiberglass reinforced ABS with painted aluminum grille
• Dimensions (H x W x D): 1000 x 98.5 x 153 mm
• Net Weight: 7.2 kg
• Safety: EN54-24:2008 certified, UL94-5VB flammability rated

Package Contents

• JBL CBT 100LA-LS Line Array Column Loudspeaker
• Swivel (pan)/tilt wall bracket
• MTC-PC2 terminal panel cover
