JBL CSS-1S/T Wall Mountable Compact Two Way 100V 70V 8 Ohm Loudspeaker, Single Unit (Used)(Copy Of Jbl Css 1s T Wall Mountable Compact Two Way 100v 70v 8 Ohm Loudspeaker Pair Used)

Like New: Open box product with no signs of use. Only includes 1 speaker.

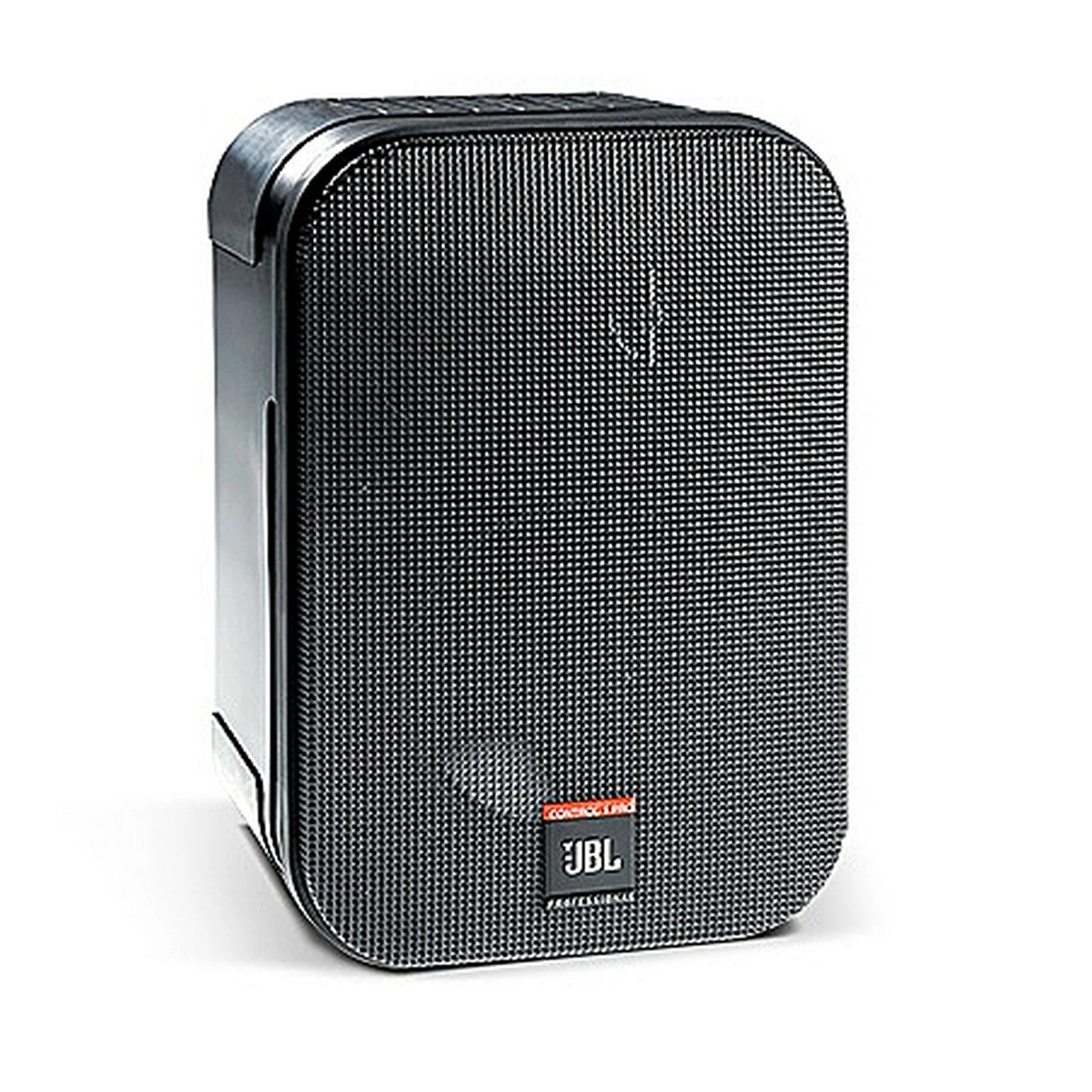

JBL CSS-1S/T Wall Mountable Compact Two Way 100V 70V 8 Ohm Loudspeaker

CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.

Key Features

• 10W multi-tap transformer for 100V or 70V distributed speaker lines
• 8-ohm direct setting
• 120 Hz – 16 kHz frequency response
• 60W power capacity
• Mounting hardware included

Technical Specifications

Frequency Range (-10 dB) : 85 Hz – 18 kHz
Frequency Response (±3 dB) : 120 Hz – 16 kHz
Power Capacity : 60 Watts
Sensitivity : 86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
Maximum SPL : 106 dB at 8 Ohm Direct setting;
96 dB at 10W setting
Nominal Coverage : 120ºH x 120ºV
Directivity Factor (Q) : 6.2
Directivity Index (DI) : 7.9 dB
Nominal Impedance : 8 ohms (in 8Ω DIRECT mode, selectable on back panel)
Transformer Taps : 10 W, 5 W (& 2.5W @ 70V)
Crossover Frequency : 4.3 kHz
Transducers :
LF Driver : 135 mm (5.25 in) low frequency driver
HF Driver : 19 mm (0.75 in) polycarbonate dome tweeter
Input Connectors : Spring-loaded terminals
Enclosure :
Enclosure Material : Polypropylene Structural Foam
Color : Black
Dimensions : 229 mm x 159 mm x 143 mm
(9.0 in x 6.3 in x 5.6 in)
Net Weight (each) : 2.0 kg (4.5 lb)
Shipping Weight (pair) : 4.8 kg (10.5 lb)
Included Accessories : Wall-mounting bracket assembly
