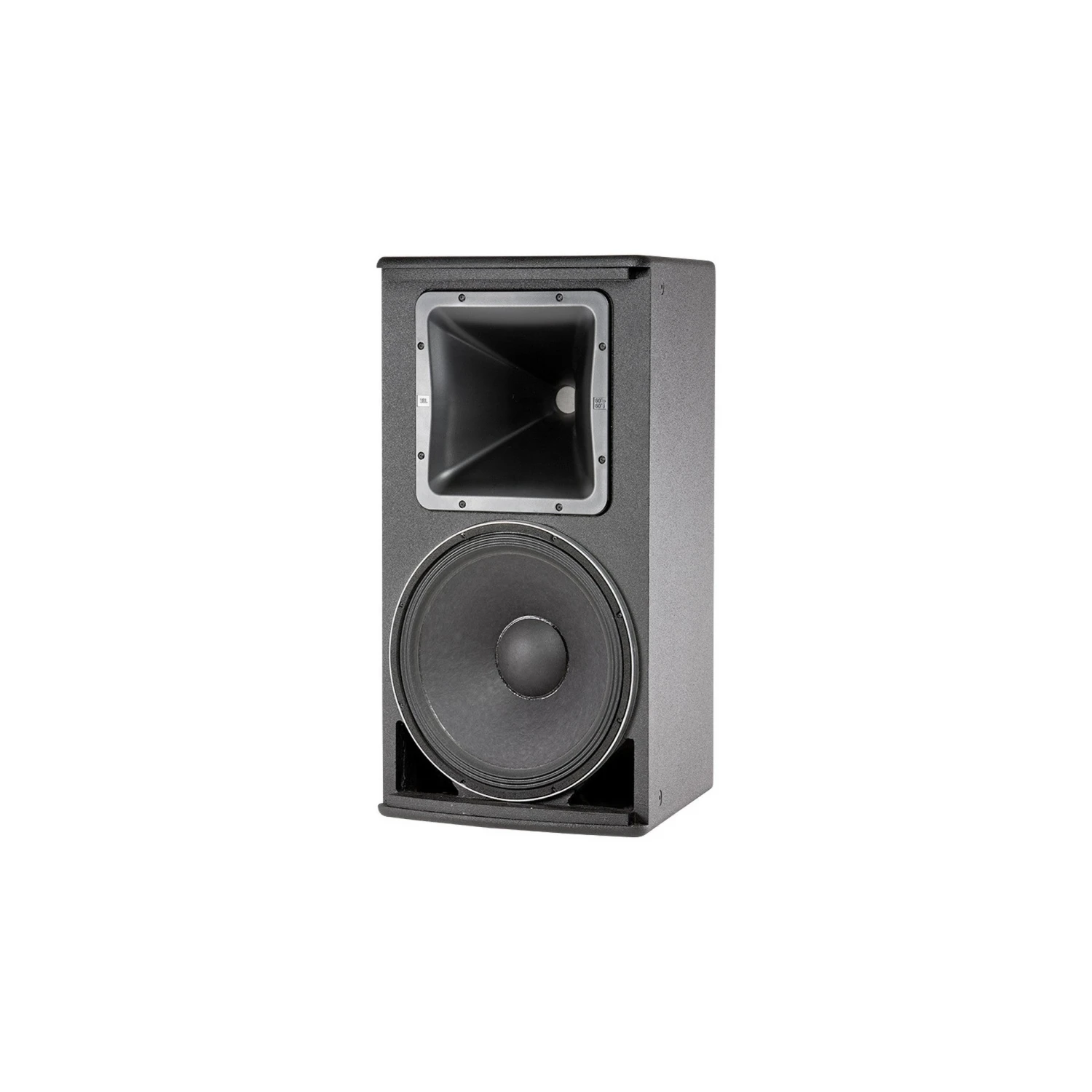

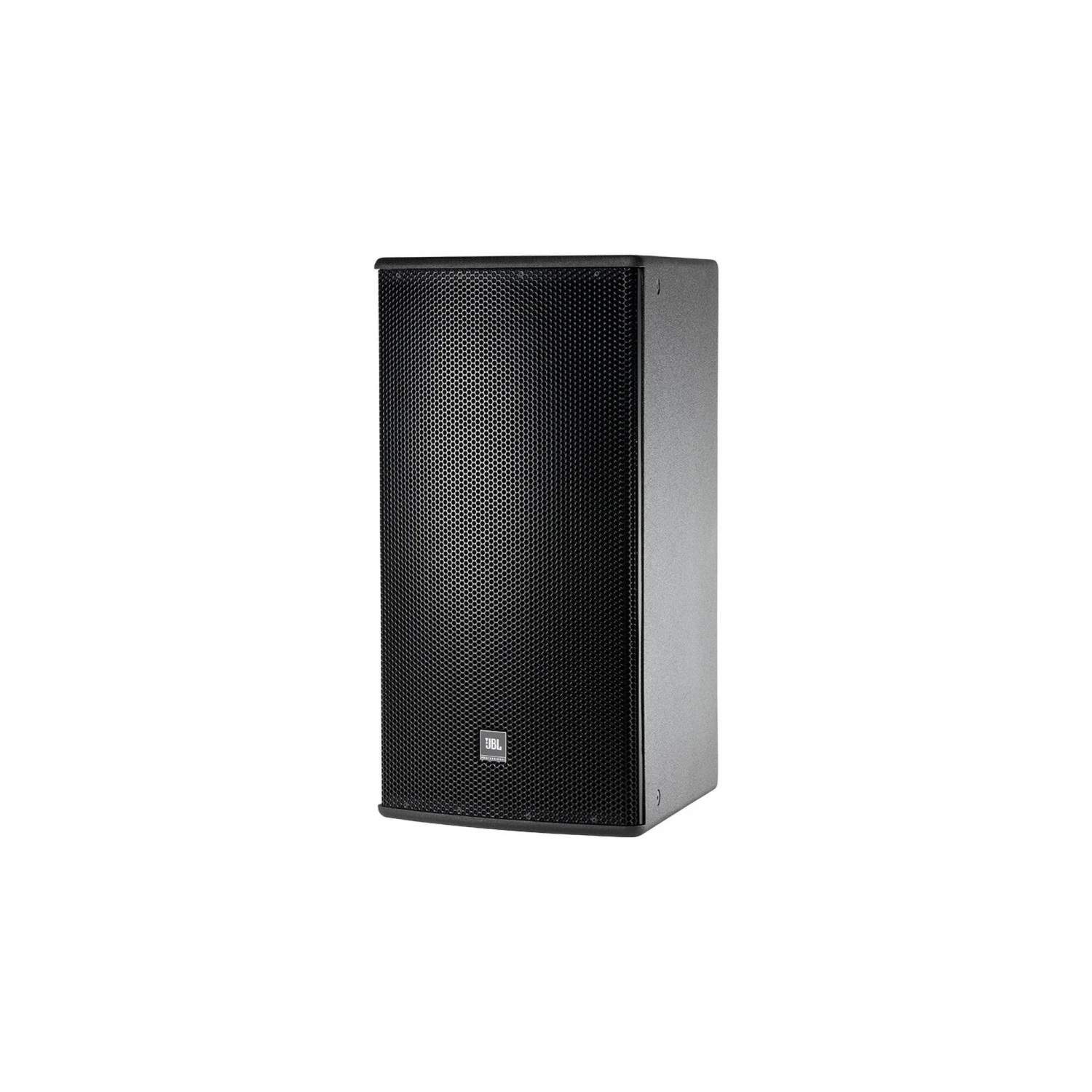

JBL AM5215/64 15-Inch 2-Way Loudspeaker with 60 x 40-Degree Horn

The JBL AM5215/64 is engineered to deliver superior audio performance with unparalleled clarity and power. This professional-grade loudspeaker is perfect for a wide range of applications, from concert venues and auditoriums to outdoor events and high-end installations. Its robust design ensures reliable operation in various environments, making it a versatile choice for audio professionals seeking both durability and high-fidelity sound reproduction.

Featuring advanced driver technology and precise engineering, the AM5215/64 provides exceptional sound quality with balanced frequency response and high output capabilities. The speaker’s design includes a high-performance 15-inch low-frequency driver and a 1.5-inch high-frequency compression driver, which together offer a wide coverage area and consistent audio performance. The cabinet is built with premium materials to withstand harsh conditions, while the sleek and modern aesthetic ensures it blends seamlessly into any setting.

Key Features

• High-performance 15-inch low-frequency driver for deep, impactful bass.
• 1.5-inch high-frequency compression driver for clear, articulate high frequencies.
• Wide coverage pattern to ensure consistent audio dispersion.
• Durable construction designed to handle demanding environments.
• Modern design that complements both indoor and outdoor settings.

Technical Specifications

Frequency Response
55 Hz – 20 kHz
Coverage Pattern
90° x 50°
Sensitivity
98 dB (1W/1m)
Maximum SPL
129 dB
Power Handling
500 W (Continuous), 2000 W (Peak)
Nominal Impedance
8 Ω
Driver Components
15″ Low-Frequency Driver, 1.5″ High-Frequency Compression Driver
Dimensions
32.5″ x 20.8″ x 18.7″ (825 mm x 528 mm x 475 mm)
Weight
68 lbs (31 kg)
Connector Type
Dual Speakon® NL4
Enclosure Material
Durable plywood with rugged coating
Finish
Black DuraFlex™ paint
