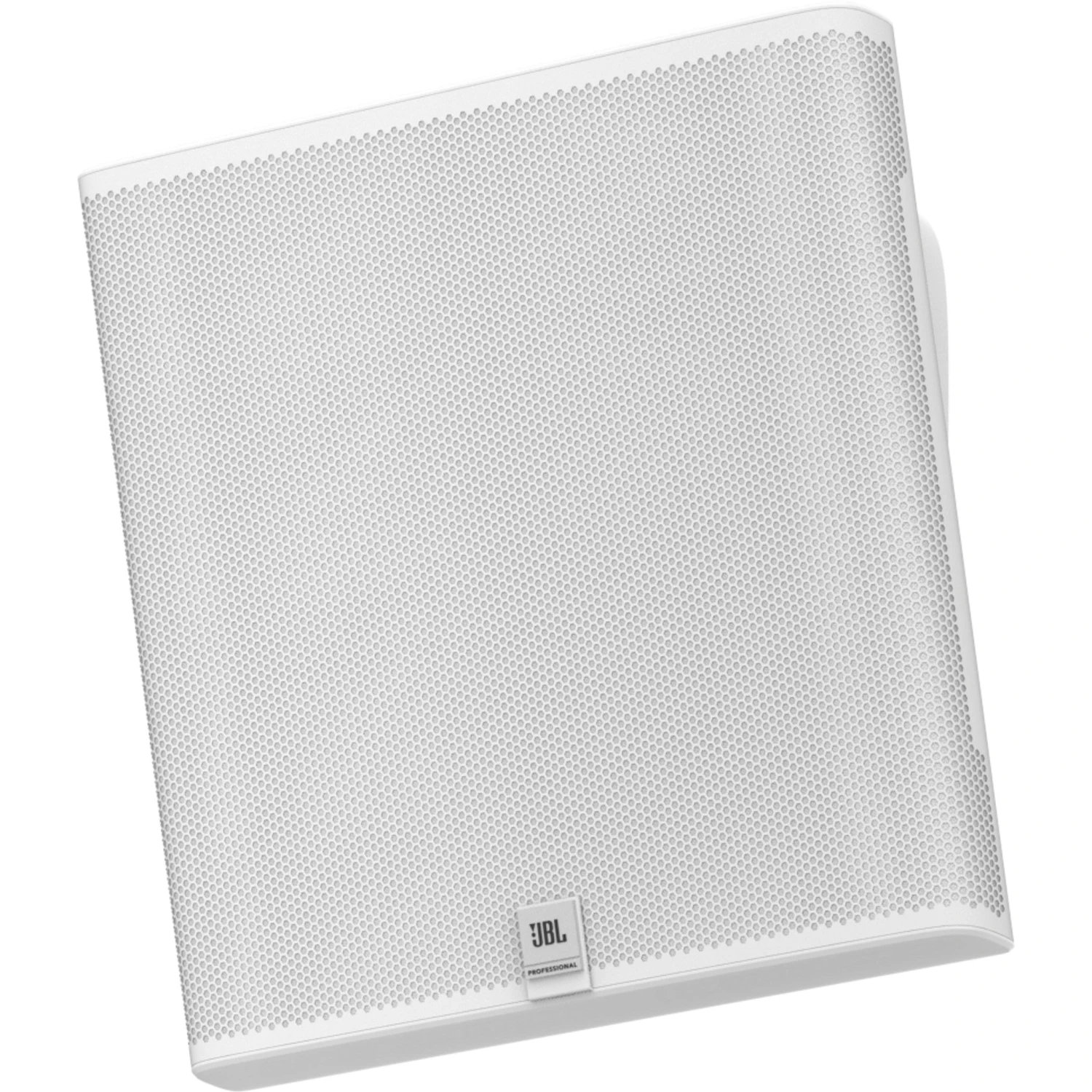

JBL Professional SLP14/T-WH Sleek, Low-Profile On-Wall Loudspeaker, White Pair(Jbl Slp14 T Wh Sleek Low Profile On Wall Loudspeaker White Pair)

JBL Professional SLP14/T-WH Sleek, Low-Profile On-Wall Loudspeaker, White Pair

Sleek, Low-Profile On-Wall Loudspeaker
The SLP14/T two-way on-wall loudspeaker provides rich, detailed wide-range sound and broad, consistent coverage in a sleek, low-profile enclosure, thanks to a coaxial 4-inch driver complement that delivers the legendary sound that JBL is known for. The SLP14/T is an ideal foundation for a range of applications: It features a 25-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation; voicing matches well with JBL Control 14C/T ceiling speaker for consistent sound character, allowing mixing and matching within a single system. This robust speaker boasts 50-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker-winner of the RedDot international design award for industrial design excellence-complements any décor and is available in black or white finishes.

The stylish, great-sounding JBL SLP14/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

Key Features

• Transducers: 100 mm (4 in) polypropylene cone woofer and 1” silk-dome tweeter
• Power handling: 45W continuous pink noise, 60W continuous program
• 15° down-tilted coverage allows flush-to-wall mounting
• Included slide-in wall bracket makes installation a breeze
• Sonically matched to JBL Control 14C/T ceiling speakers
• Included rain cover protects terminal compartment in protected outdoor applications
• Multi-tap transformer for use in 70V/100V systems
• ADA-compliant at less than 4 inches deep
• Available in black or white finishes

Technical Specifications

Frequency Range (-10dB)
85 Hz – 20 kHz (on wall)
Frequency Response (+/-3 dB)
105 Hz – 17 kHz (on wall)
Power Rating
90 W Continuous Program (2 hrs)
45 W (180 W Peak), Continuous Pink Noise (2 hrs)
30 W (120 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity
86 dB (60 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL
108 dB peak (102 dB continuous, 2 hr) @ 1m
Nominal Coverage
140° horizontal x 140° vertical
Directivity Factor (Q)
6.0
Directivity Index (DI)
7.7 dB
Nominal Impedance
8Ω (at 8Ω tap setting)
Transformer Taps
70V: 25 W, 12.5 W, 6.3 W, 3.2W
100V: 25 W, 12.5 W, 6.3 W
Driver
100 mm (4 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton voice coil former, plus 1” silk-dome tweeter with neodymium magnet with aluminum former
Terminals
4-pin Euroblock connector for bare wire
Enclosure Material
Polycarbonate + ABS, UL94V-0 flammability rated
Color
Black or white
Dimensions
286mm W x 263mm H x 100mm D (11.3 x 10.4 x 3.9 in)
Net Weight
2.8kg (6.2 lbs)
Included Accessories
Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use
