KORG KR-11 Compact Rhythm Box(Korg Kr 11 Compact Rhythm Box)

KORG KR-11 Compact Rhythm Box

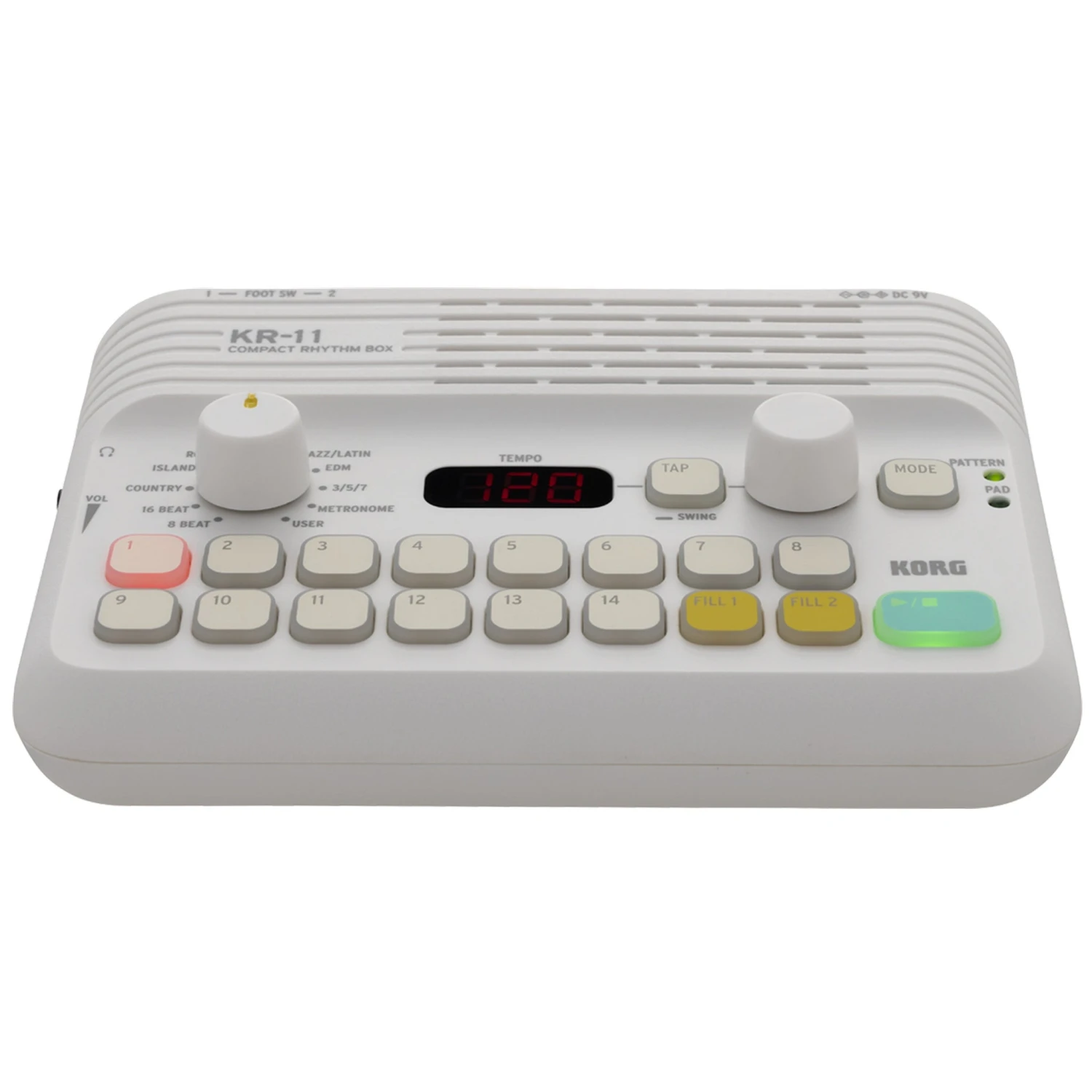

The KORG KR-11 is a compact, battery-powered rhythm machine that brings 60 years of Korg drum-machine heritage into a modern, portable package. It features 16 velocity-sensitive pads and 126 factory patterns across nine genres, with space for 14 user-created patterns—ideal for musicians on the go. Whether powered by four AA batteries or an optional 9 V AC adapter, its built-in speaker with Acoustage Bass technology delivers rich sound anywhere. A metronome and swing function expand its practice-tool versatility for guitarists, keyboardists, bassists, and more.

Intuitive controls let you select a genre, choose a pattern variation, and hit play in seconds. Customize any pattern and save up to 14 favorites for quick recall. In Pad Play mode, the KR-11’s pads become live drum triggers—assignable via an optional PS-1/PS-3 pedal—for authentic finger-drumming performances. Expand functionality further with footswitch-driven start/stop, pattern changes, and fill-ins without lifting a hand.

Key Features

• Rhythm Patterns: 9 genres × 14 variations = 126 factory patterns
• User Patterns: 14 slots for storing custom patterns
• Pads: 16 velocity-sensitive pads for finger drumming
• Speaker System: Built-in speaker with Acoustage Bass technology
• Power Supply: 4× AA alkaline batteries or DC 9 V AC adapter (sold separately)
• Jacks: Headphone/line-out, FOOT SW 1, FOOT SW 2, DC 9 V
• Pedal Control: Optional PS-1/PS-3 footswitch for start/stop, pattern change, fill-ins
• Metronome & Swing: Built-in metronome and adjustable swing function

Technical Specifications

• Dimensions: 6.30″ × 4.53″ × 1.73″ (16 × 11.5 × 4.4 cm)
• Weight: 0.62 lb (0.279 kg; without batteries)
• Power Supply: 4× AA-size alkaline batteries or DC 9 V adapter
• Battery Life: Approx. 18 hours
• Current Consumption: 1300 mA (peak)
• Jacks: Headphones/line-out, FOOT SW 1, FOOT SW 2, DC 9 V
• Speaker: Newly developed speaker with Acoustage Bass
