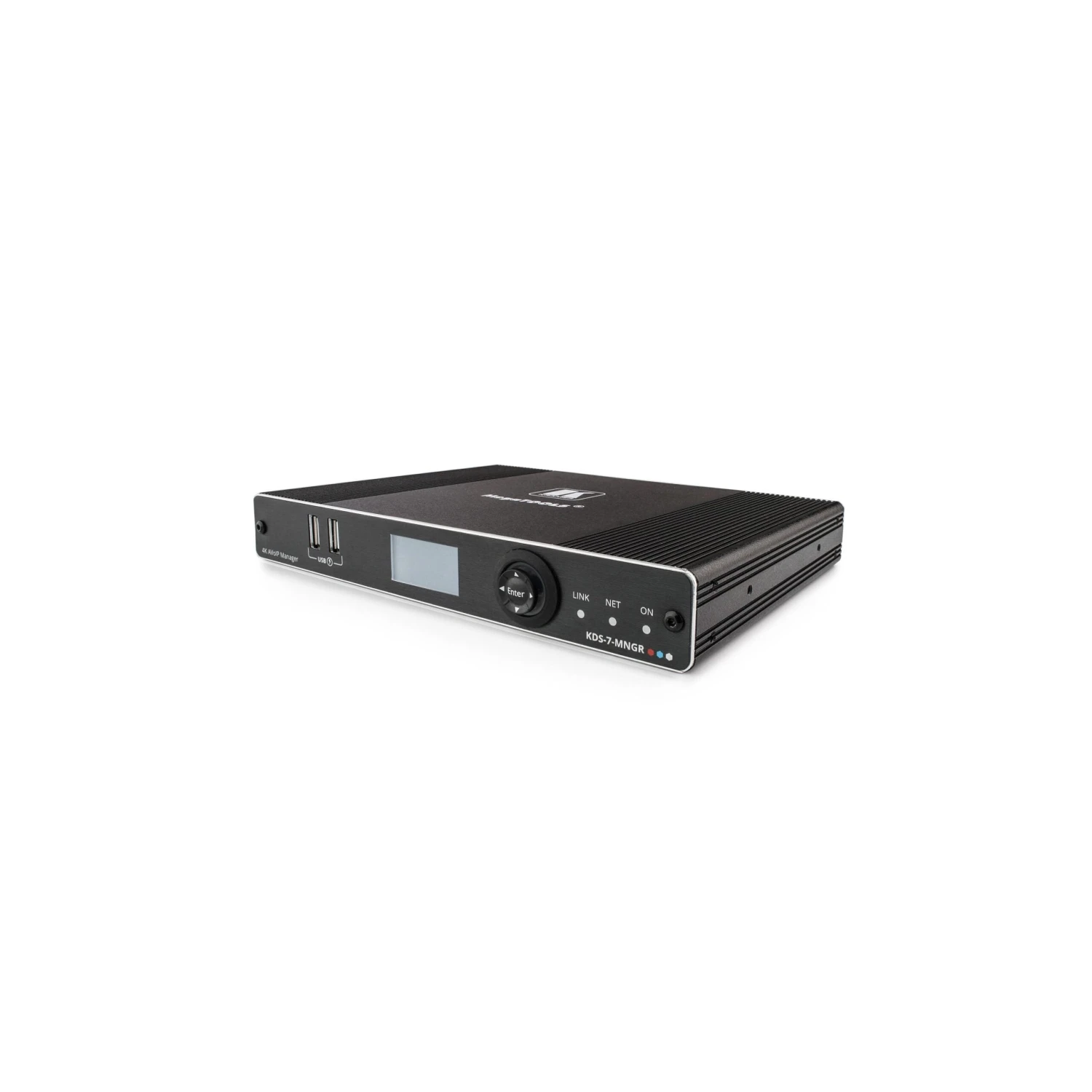

Kramer KDS-7-MNGR High-Performance AVoIP Manager

KDS-7-MNGR Manager is the solution for configuration and management of KDS-7 deployments within the same network. Simply install the unit into the same local network as the extenders (encoders and decoders) to easily define and configure channel routing selections (including video, audio, and a variety of control interface types) using the embedded web pages.

Additionally, this unIt’supports controlling and configuring the matrix, video wall, and KVM modes of connected KDS-7 devices as well as device grouping and group operations.

The settings of all connected encoder/decoder units, including IP configuration, compatibility settings, and extender status are clearly displayed and easily updated.

Key Features

• Outstanding end-user experience
• Ideal for large-scale deployments
• Robust security
• Simple planning and rollout

Technical Specifications

OUTPUTS
1 HDMI
On a female HDMI connector
PORTS
1 Ethernet
On RJ45 connector
2 USB
On USB-A connectors
VIDEO
Max Resolution
1080P@60Hz
USER INTERFACE
Indicators
LINK, NET and ON LEDs, front panel LCD Display
Controls
Restart and factory reset rear panel summary, embedded web pages, P3K API commands via Ethernet, front panel navigation summarys
POWER
Options
PoE on LAN(PoE) port
Consumption
3W
24V DC
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 to + 45 Degrees C (32 to + 113 Degrees F), 10% to 90%, non-condensing
Storage Temperature
-20 to +70 Degrees C (-4 to + 158 Degrees F), 10% to 90%, non-condensing
Humidity
10% to 90%, non-condensing
GENERAL
Product Dimensions
18.9cm x 14.5cm x 2.76cm (7.4” x 5.7” x 1”) W, D, H
Shipping Dimensions
31.2cm x 17.9cm x 7.6cm (12.2” x 7.04” x 2.9”) W, D, H
Product Weight
0.67kg (1.4lbs) approx
Shipping Weight
0.93kg (2.05lbs) approx.
