Kramer KDS-EN7 4K60 4:2:0 High-Performance AVoIP Encoder(Kramer Kds En7 4k60 420 High Performance Avoip Encoder)

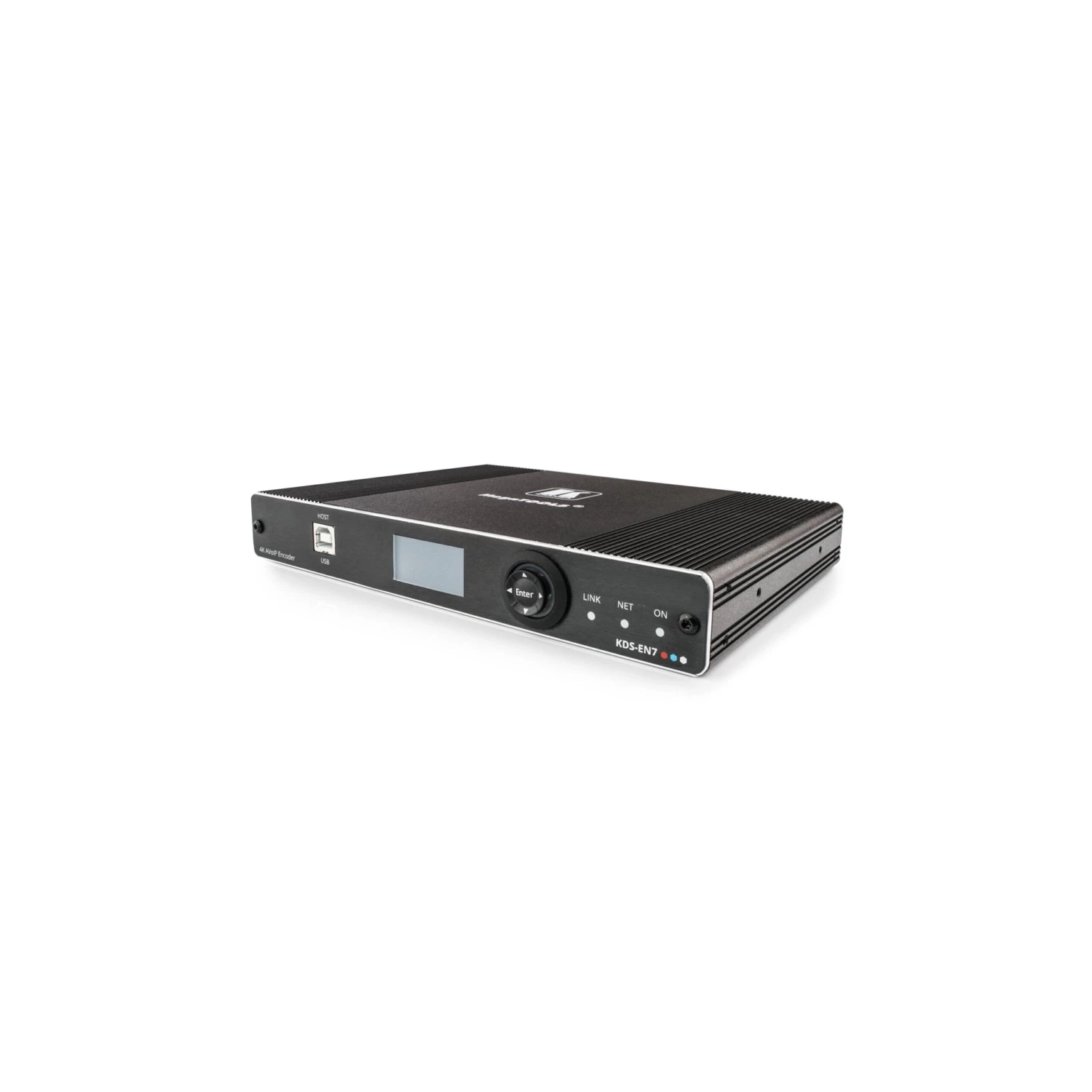

Kramer KDS-EN7 4K60 4:2:0 High-Performance AVoIP Encoder

KDS-EN7 encoder is an advanced transmitter for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable. It encodes and streams over an IP network from HDMI input, and transmits the USB, IR, RS232, or CEC signal over IP network.

Key Features

• Outstanding end-user experience
• Ideal for large-scale deployments
• Robust security
• Simple planning and rollout

Technical Specifications

OUTPUTS
1 HDMI
On a female HDMI connector
PORTS
2 Ethernets
On R-J45 connectors
1 Balanced Audio
On a 5-pin terminal block connector
1 RS-232
On a 3-pin terminal block connector
1 IR
On a 3.5mm TRS connector
1 USB Host
On a USB-B connector
VIDEO
Compression Standard
JPEG based, private stream
Max Resolution
4K60 4:2:0 or 4K30 4:4:4
HDR 10
Up to 4K30 4:2:2 12 bit
USER INTERFACE
Indicators
LINK, NET and ON LEDs, front panel LCD Display
Controls
Restart and factory reset rear panel summary, embedded web pages, P3K API commands via Ethernet, front panel navigation summarys
POWER
PoE on LAN(PoE) port
24V DC
Consumption
6W
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 to + 45 Degrees C (32 to + 113 Degrees F), 10% to 90%, non-condensing
Storage Temperature
-20 to +70 Degrees C (-4 to + 158 Degrees F), 10% to 90%, non-condensing
Humidity
10% to 90%, non-condensing
GENERAL
Product Dimensions
18.9cm x 14.5cm x 2.76cm (7.4” x 5.7” x 1”) W, D, H
Shipping Dimensions
31.2cm x 17.9cm x 7.6cm (12.2” x 7.04” x 2.9”) W, D, H
Product Weight
0.67kg (1.4lbs) approx
Shipping Weight
0.93kg (2.05lbs) approx
PRODUCT DIMENSIONS
18.90cm x 14.50cm x 2.76cm (7.44” x 5.71” x 1.09”) W, D, H
PRODUCT WEIGHT
0.7kg (1.5lbs) approx.
SHIPPING DIMENSIONS
31.20cm x 17.90cm x 7.60cm (12.28” x 7.05” x 2.99”) W, D, H
SHIPPING WEIGHT
0.9kg (2.1lbs) approx.
