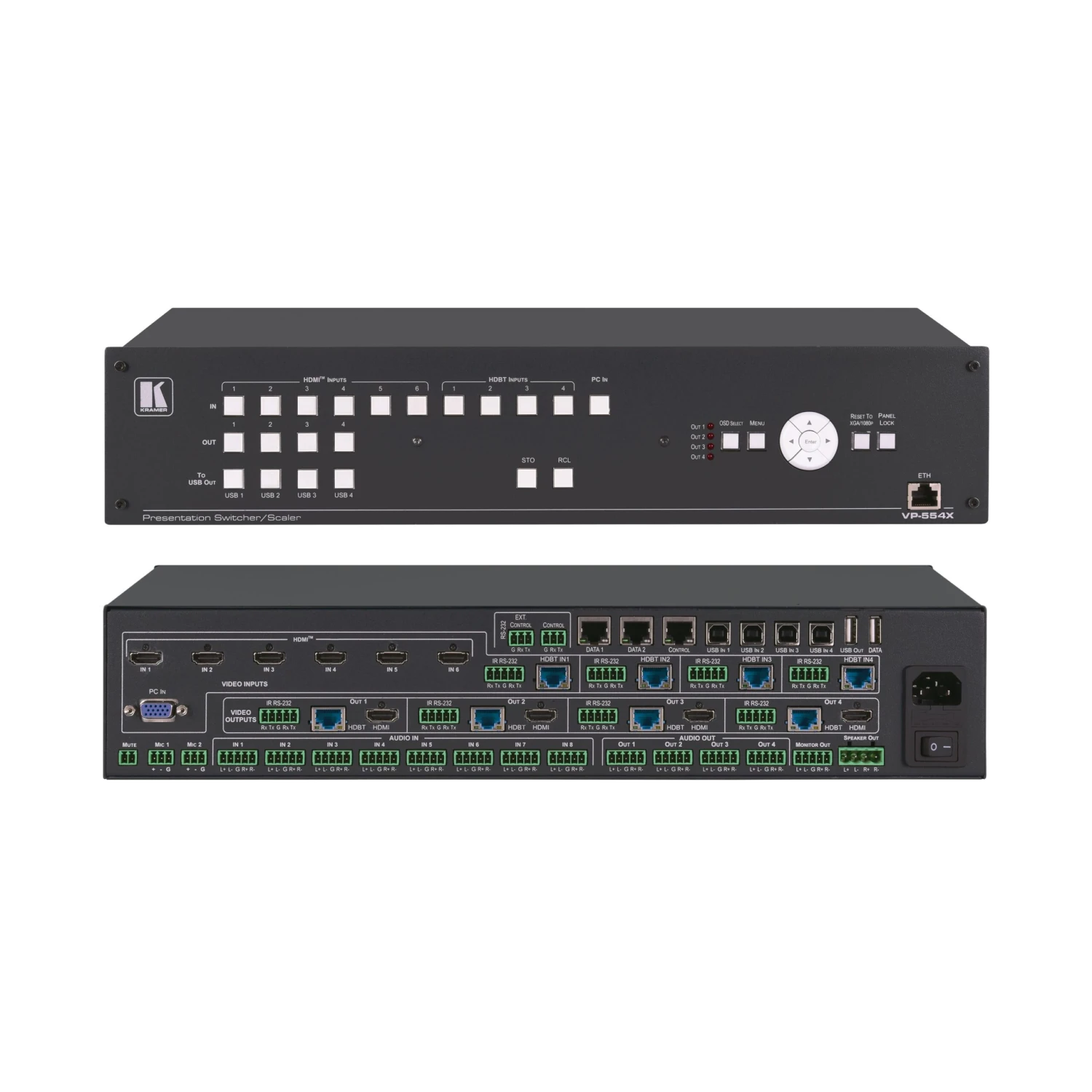

Kramer VP-554X 11 x 4:2 Presentation Boardroom Router/Scaler System

The VP-554X is a high-performance presentation scaler/switcher with 4 pairs of independent and scaled outputs. It includes multiple HDMI and HDBaseT inputs – supporting resolutions up to 4K – as well as a legacy VGA input, and each of the 4 outputs is mirrored on both HDMI and HDBT.

VP-554X supports embedded and balanced analog stereo audio, up to 2 microphone inputs, DSP audio features and a built-in stereo power amplifier. It includes a built-in Ethernet switch and supports legacy RS-232, and IR, Ethernet and RS-232 tunneling over HDBT.

Key Features

Pix-Perfect Scaling Technology – Kramer’s precision pixel mapping and high-quality full up – and down-scaling technology.
High-Performance Switcher/Scaler – Scales the video and provides constant output sync to prevent signal disruption when switching between inputs and when no video is detected.
HDCP 2.3 Compliance – The HDCP (High-Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass to HDCP compliant outputs.
Resolutions – Up to 4K60 4:4:4 on the HDMI ports; up to 4K60 4:2:0 on the HDBaseT ports; and up to 1080p60 on the VGA input.
System Range for the HDBT inputs and outputs – Up to 100m for 4K; 180m for 1080p.
4×1 USB Switcher – Can be set to follow the switching of the video layer or as an independent switcher.
Audio DSP Features, including input and output level adjustments, microphone talkover, mixing, and EQ.
Analog & Embedded Audio Support.
Built-in Power Amplifier – 2x20W.
Built-in Video ProcAmp – Color, hue, sharpness, noise, contrast, and brightness.
Option for video wall output mode.
Multiple Control Options – Front panel summarys with OSD, RS-232, Ethernet and built-in Web pages.
Includes numerous filters and algorithms for eliminating picture artifacts.
Converts to 4K60 4:2:0 on HDBaseT outputs when its corresponding mirrored HDMI output resolution is 4K60 4:4:4 (similarly for 4K50).
HDMI Support – HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS-HD Master Audio (by-pass), as specified in HDMI
2.0 as specified in HDMI 2.0.
Multiple aspect ratio selections.
Advanced EDID management per input.
Includes non-volatile memory that retains the last settings, after switching the power off and then on again.
STO and RCL summarys, a RESET TO XGA/1080P summary (to hardware-reset the output resolution); and a PANEL LOCK summary.
Built-in video Proc-Amp – color, hue, sharpness, contrast, and brightness are set individually for each output.
An OSD (On-Screen Display) – for making adjustments – that can be located anywhere on the screen.
Efficient power-saving features.
Advanced EDID management per input.
Includes non-volatile memory that retains the last settings, after switching the power off and then on again.
11 input summarys for switching a selected input to an output.
Scaled video outputs – 4 pairs of mirrored HDMI and HDBT outputs.
Embedded audio on the HDMI and HDBT inputs and outputs.
11 input summarys for switching a selected input to an output.
Embedded audio on the HDMI and HDBT inputs and outputs.
Scaled video outputs – 4 pairs of mirrored HDMI and HDBT outputs.

Technical Specifications

INPUTS
6 HDMI
On female HDMI connectors
1 PC
On a 15-pin HD connector
4 HDBT
On RJ-45 female connectors
8 Stereo Analog Balanced Audio
On 5-pin terminal block connectors
2 Unbalanced Mono Audio
On 3-pin terminal block connectors
OUTPUTS
4 HDMI
On female HDMI connectors
4 HDBT (mirrored with each HDMI output)
On RJ-45 female connectors
5 Balanced Stereo Audio
On 5-pin terminal block connectors
1 Stereo Balanced Audio
On a 4-pin large terminal block
LINE LEVEL INPUT
Impedance
16.6k OHMS
Maximum level
+14.7dBu (4.2Vrms)
Sensitivity
Full power @ +8.7dBu (2.1Vrms) for OUT =1.9Vrms
MICROPHONE LEVEL INPUT
Impedance
47k OHMS
Sensitivity
Full power @ – 37dBu (11mVrms) for OUT =1.9Vrms
Phantom Power
48Vdc on/off per input
LINE LEVEL OUTPUT
Impedance
500 OHMS
Frequency Response
20Hz – 20kHz @ +/-1dB
S/N Ratio
>75dB, 20Hz – 20kHz (unweighted),
S/N Ratio
>81dB, 20Hz – 20kHz (A-weighted)
Audio THD + Noise
<0.014%, 20Hz – 20kHz (unweighted),
Audio THD + Noise
<0.0092%, 20Hz-20kHz (A-weighted)
Crosstalk
<-93 dB, 20Hz to 20kHz
AMPLIFIER
Output Power
2 x 20W into 4 OHMS
Amplifier Class
D
Maximum Voltage Gain
26dB BTL
Dynamic Range
103 dB A-Weighted
Frequency Response
20Hz – 20kHz @ +/-1dB
S/N Ratio
>68 dB, 20Hz – 20kHz (unweighted)
Audio THD + Noise
<0.037%, 20Hz – 20kHz (unweighted)
Crosstalk
<-77 dB, 20Hz to 20kHz
PORTS
4 IR (for HDBT Outputs)
On terminal block connectors for IR link extension
4 IR (for HDBT Inputs)
On terminal block connectors for IR link extension
4 RS-232 (for HDBT Outputs)
On terminal block connectors for serial link extension
4 RS-232 (for HDBT Inputs)
On terminal block connectors for serial link extension
5 USB
4 USB Hosts on USB-B connectors
5 USB
1 USB Client on a USB-A connector
1 USB
On a USB-A connector for firmware upgrading
2 RS-232
On 3-pin terminal block connectors
4 100BaseT Ethernet
On RJ-45 female connectors for device control and LAN extension
VIDEO
Max Resolution
HDMI: 4K60 4:4:4
Max Resolution
HDBT: 4K60 4:2:0
Max Resolution
PC (VGA):1080p
Compliance
Up to HDMI 2.0 and HDCP 2.2
EXTENDED ETHERNET
Max Transmission Bandwidth
100Mbps
EXTENDED RS-232
Baud Rate
300 to 115200
CONTROL RS-232
Baud Rate
115200
POWER
Max, Power Consumption
190VA
Storage Temperature
-40 Degrees to +70 Degrees C (-40 Degrees to 158 Degrees F)
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 Degrees to +40 Degrees C (32 Degrees to 104 Degrees F)
Humidity
10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety
CE, FCC
Environmental
RoHs, WEEE
ENCLOSURE
Size
19” 2U
Type
Aluminum
Cooling
Fan ventilation
ACCESSORIES
Included
Power adapter cord
PRODUCT DIMENSIONS
43.69cm x 23.60cm x 8.80cm (17.20” x 9.29” x 3.46”) W, D, H
PRODUCT WEIGHT
5.0kg (11.0lbs) approx.
SHIPPING DIMENSIONS
52.60cm x 47.50cm x 18.40cm (20.71” x 18.70” x 7.24”) W, D, H
SHIPPING WEIGHT
6.3kg (13.9lbs) approx.
