Lightshark WorkPro LS-Core Lighting Console(Lightshark Workpro Ls Core Lighting Console)

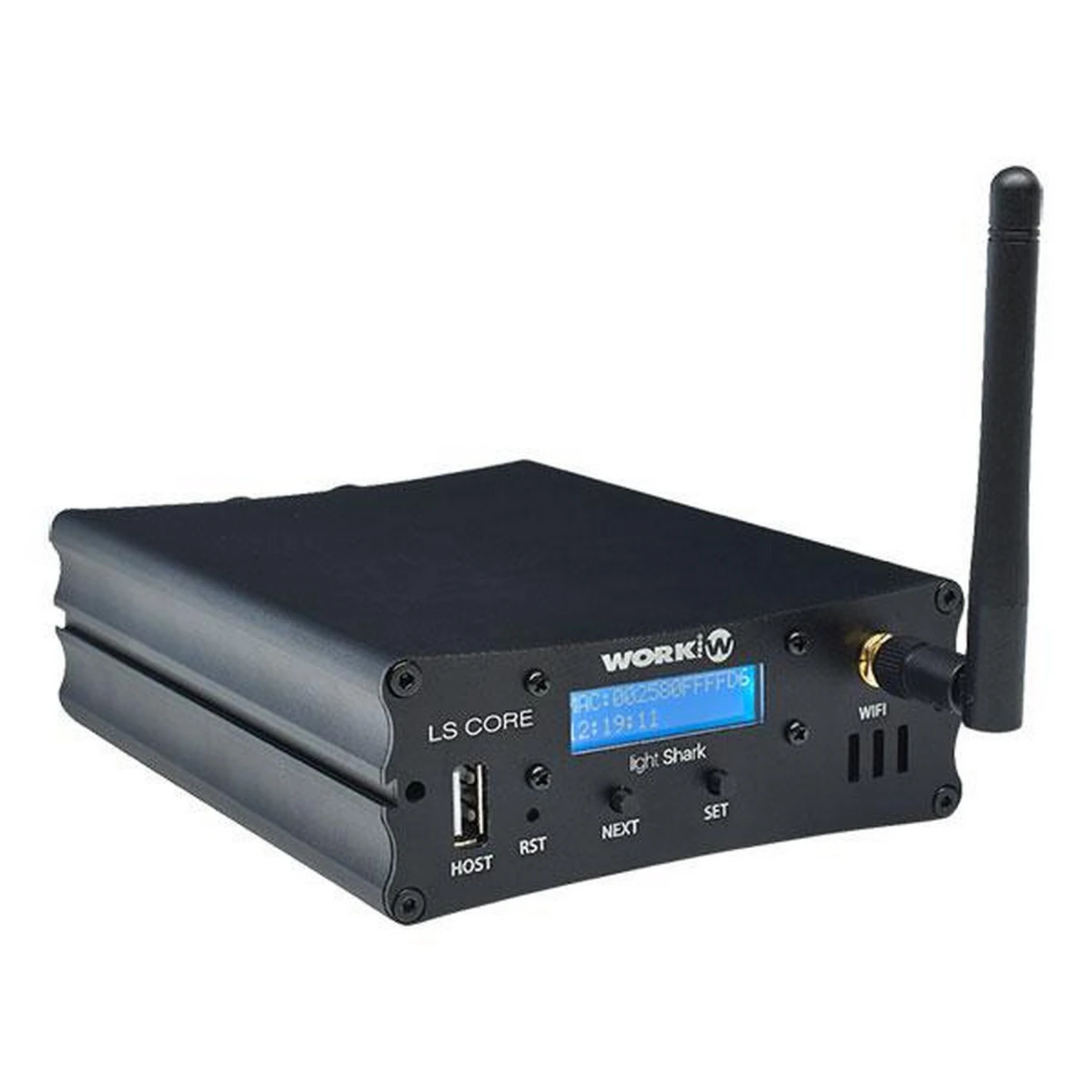

Lightshark WorkPro LS-Core Lighting Console

LightShark Series is the first ever hardware lighting console range to offer wireless, web-based control User Interface from any smart device like a smartphone, tablet or computer. All this is combined with physical faders, encoders and independent DMX engine. With support for up to three connected devices simultaneously, LightShark sets a new standard concept for lighting control.

Simply Powerful
The LightShark range comprises two independent products, the LS-Core and the LS-1 console. The LS-1 brings together the best features from the world of innovative software-only lighting control and marries them to an intuitive, ergonomic assignable hardware control surface. The LS-Core omits the LS-1’s hardware control surface but offers exactly the same lighting control software, processing power, and smartphone/tablet-based software control interface.

Key Features

• Designed for fast programming, avoiding repetitive tasks.
• Supports DMX-512, Art-Net, ACN, MIDI, UDP, OSC & HTTP.
• Multi-touch UI
• Allows multiple touch events simultaneously.
• 8 DMX universes
• 4096 channels to manage a complete show.
• Edit your own fixture library with support for virtual modes.
• Supports OSC control software or a MIDI console connection.
• 10 main playbacks
• 10 main playback faders.
• 20 virtual playbacks
• manage 30 playbacks in total.
• Manual crossfade
• Jump quickly between cues.
• Cross-platform
• No matter the OS, it is web based.
• Built-in web server app, pre-loaded instantly in the web client.
• Extended Cue memory
• Up to 1200 cues.
• Fanning function
• Quick access to fanning.
• Built-in FX engine
• More than 20 customizable effects.
• Submaster FX size & speed
• Accurate effect control.
• RGB & CMY Color Picker
• Adjust the color with just a click.
• Unlimited user palettes gives you a lot of possibilities.
• Customizable Executors window
• Ultrafast cue triggering.
• Internal event scheduler
• Useful for architectural applications.

Technical Specifications

Overview
8 DMX Universes
LCD Menu
Manual Crossfade
Up to 4096 Fixtures
10 Main PlayBacks
20 Wing Faders
MultiPlatform
Built-in Fixture Editor
WIFI & 100/1000 Ethernet
Built-in Web Server App
MIDI & OSC Support
Up to 3 Simultaneous Displays
Internal Scheduler
Up to 1200 Cues
Fanning Function
Multi-Touch UI
Built-in Fx Engine
SubMaster Fx Size & Speed Editor
Connectors
2x DMX output (XLR 3-pin and 5-pin)
Ethernet port (TCP/IP, ArtNet, sACN)
1x USB port
Weight & Dimensions
Dimensions
108 x 40 x 142 mm
Weight
460g
Power & Current
External power adapter
Operating voltage
90-250V, 50/60Hz
Warranty
2-year limited warranty
