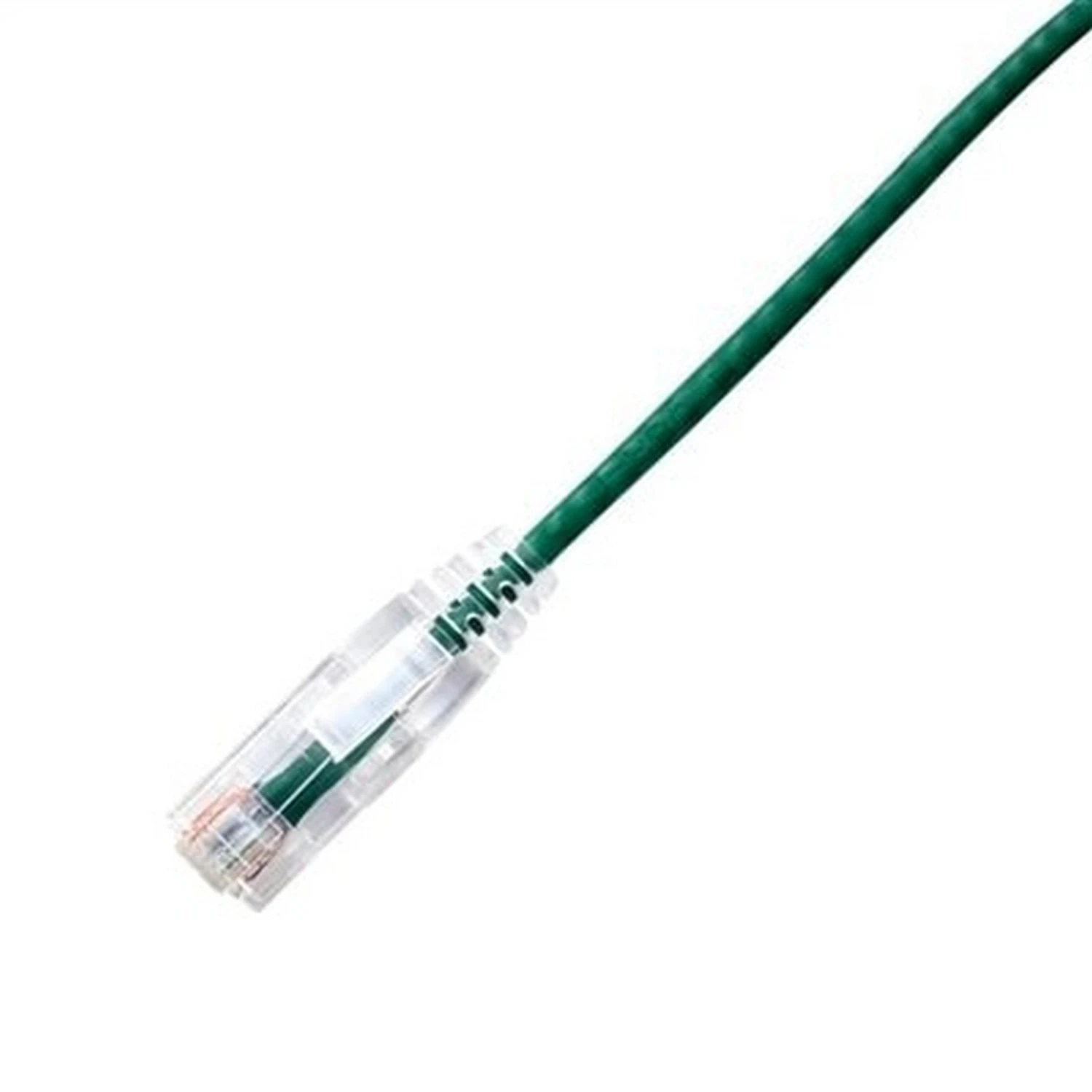

LYNN CPCS-AGN-025F CHOICE Slim 28AWG CAT6A Ethernet Patch Cable, 25-Foot, Green(Lynn Cpcs Agn 025f Choice Slim 28awg Cat6a Ethernet Patch Cable 25 Foot Green)

LYNN CPCS-AGN-025F CHOICE Slim 28AWG CAT6A Ethernet Patch Cable, 25-Foot, Green

CHOICE Slim. Where Headroom and Space is a Premium. Designed for 10/100/1000BASE-T and 10 Gbps networks. All network patch cables are pure copper wire with gold plated contacts. Every cable is UL listed, CM rated and Fluke tested ensuring the highest level of performance.

Key Features

• Less than half the size of standard CAT6A patch cables
• 40% smaller bend radius simplifies routing through panels
• Low profile connector for easy installation in high-density data centers
• Vibrant colors to easily color-code your network installation

Technical Specifications

Construction
Cable Type
Slim Cat6A Clear Boot
Conductor Type
28 AWG, Stranded Tinned Copper
Cable Jacket
PVC CM
Shielding Type
Unshielded (UTP)
Connectors
RJ45 Male 50mμ gold-plated
Insulation
High density polyethylene, .005” nominal wall thickness
Performance
Operating Temperature
-4 Degrees to 140 Degrees
Data Rate Support
up to 10 Gbps
Frequency Bandwidth
500 MHz
POE
350mA, 12.95W, Max distance 40mPOE+: 600mA, 25.5W, Max distance 40mPOE++: 1,000mA, 96W, Max distance 40m
Approvals
UL Listed
RoHS Compliant
ANSI/TIA 568 C.2 Category 6
ISO 11801 Class E Edition 2.1
Manufacturing Facility
ISO-9001 and TUV Certified
