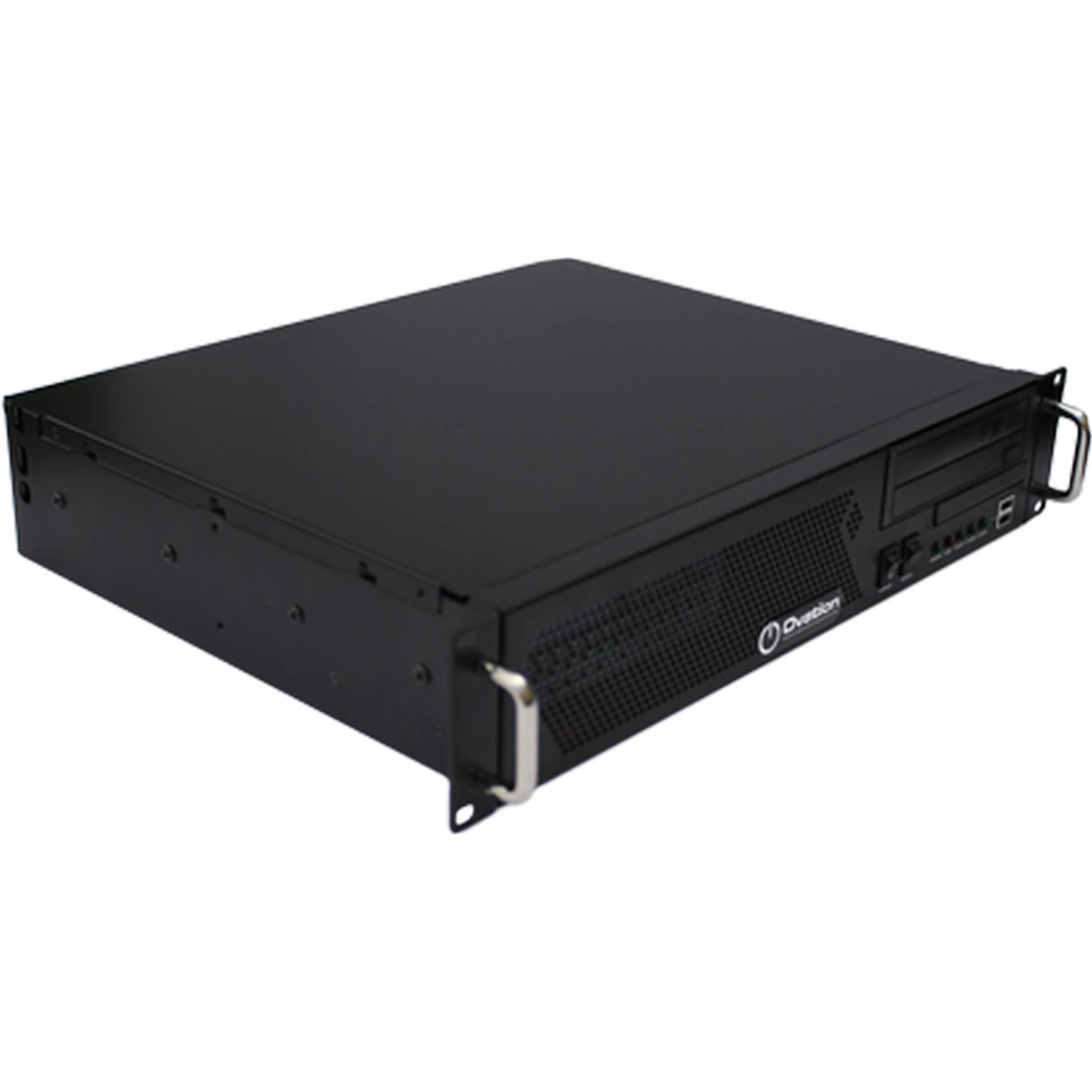

Merging Technologies Pyramix WorkStation, Windows 10 Pro, 19 Inch 2U(Merging Technologies Pyramix Workstation Windows 10 Pro 19 Inch 2u)

Merging Technologies Pyramix WorkStation, Windows 10 Pro, 19 Inch 2U

No matter what the application, Merging Technologies-built PC’s have long been some of the most sought-after audio computers on the market. With three different designs covering any type of user application and need, check out the spec’s below to see which one is right for you. Perfect for use with Merging MassCore or Native applications, or any other 3rd party audio application. Built for travel, the Merging Road Rack PC is the perfect solution for life on the road. Whether you are recording ultra-large multi-tracks, producing live or AV events or running your system on a broadcast truck, Merging Road Rack provides power, durability and a small footprint all in one.

Technical Specifications

Case Material
PCT-R2W10S: Cold Rolled Steel
PCT-R3W10S: Cold Rolled Steel
PCT-R2W10A: Aluminum
Weight
PCT-R2W10S: 9.5 kg
PCT-R3W10S: 13 kg
PCT-R2W10A: 3.5 kg
Dimensions (PCT-R2W10S)
“2U” 483 x 357 x 88 mm
Dimensions (PCT-R3W10S)
“3U” 483 x 400 x 133 mm
Voltage (AC)
90V-260V, 47-63 Hz
Indicators
On/Off, LAN, HDD
System Drive
250GB Solid State (SSD)
Optical Drive
DVD/CD combo
Default Media Drive
1x 1TB 7200rpm SATA
Internal Storage Space
up to 2xHDD (3.5”)
CPU
CPU Intel i5
RAM
8GB DDR4
Operating System
Windows 10 Pro 64bit
