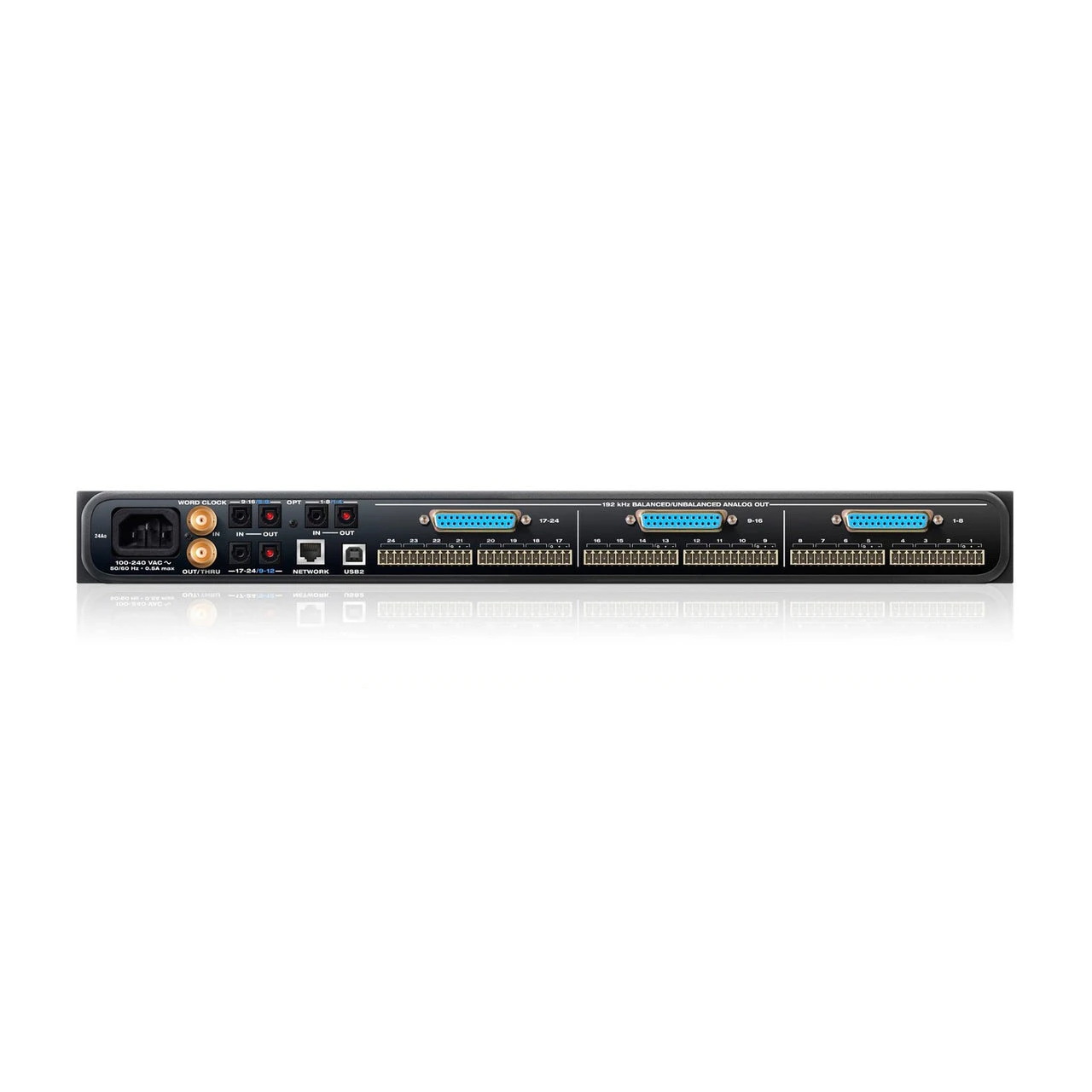

MOTU 24Ao 24×48 USB AVB Rackmount Audio Interface(Motu 24ao 24×48 Usb Avb Rackmount Audio Interface)

MOTU 24Ao | 24×48 USB AVB Rackmount Audio Interface

The MOTU 24Ao is a versatile and high-performance audio interface, offering an extensive array of connectivity options for both studio and stage settings. Renowned for its pristine audio quality, the 24Ao provides 24 channels of balanced analog output along with 48 channels of digital I/O, making it an ideal choice for professionals seeking comprehensive audio solutions. Whether you’re using it as a computer interface, an optical-to-analog expander, or a stand-alone mixer, the 24Ao delivers unparalleled sound quality and reliability.

Designed to meet the demands of modern audio production, the 24Ao seamlessly integrates with your existing setup. High-speed USB 2.0 ensures universal connectivity, while its AVB Ethernet capabilities allow for the construction of expansive audio networks. DSP-driven effects processing, including reverb, parametric EQ, and vintage compression, offer powerful sound shaping without taxing your computer’s resources. Effortlessly control all aspects of the 24Ao’s functionality through a convenient web app, ensuring maximum flexibility and ease of use.

The MOTU 24Ao is built to grow with your needs, offering system expansion options through additional MOTU interfaces connected via Ethernet. With robust mixing capabilities, comprehensive metering, and the ability to be controlled wirelessly, the 24Ao nails the balance between professional-grade sound and user-friendly operation. It’s an indispensable tool for any serious audio professional.

Key Features

• Superb audio quality with 123 dB dynamic range and -110 dB THD+N
• 72 simultaneous audio channels: 24 analog outputs and 48 digital I/O channels
• Universal connectivity via high-speed USB 2.0, compatible with USB 3.0 and iOS
• On-board DSP with 48-input mixer, 12 stereo busses, reverb, EQ, gate, and compression
• 32-bit floating point processing for ultimate sound quality
• Modeled vintage effects: classic reverb, LA-2A compression, British console EQ
• Expandable system with additional MOTU AVB interfaces
• AVB audio networking with near-zero latency over long distances
• Flexible matrix routing and splitting to multiple outputs
• Stand-alone mixing with wireless control via smart phone or tablet
• Web app control for DSP, mixing, device settings, and network routing
• Comprehensive metering with a large backlit LCD display
• Includes AudioDesk workstation software for 24-bit recording and 32-bit mixing

Specifications

• Number of analog outputs: 24
• Number of digital I/O channels: 48
• Connector types: DB-25 D-sub, Phoenix, ADAT optical
• USB version: 2.0 (compatible with USB 3.0 and iOS)
• Network protocol: AVB Ethernet
• Dynamic range: 123 dB
• THD+N: -110 dB
• DSP effects: Reverb, parametric EQ, compression, gating
• Supported sample rates: Up to 192 kHz
• Dimensions: Rackmountable
• Included software: AudioDesk

Package Contents

• MOTU 24Ao Rackmount Audio Interface
• USB Cable
• Power Adapter
• Quick Start Guide
• AudioDesk Software
