Neutrik NMC-C Receptacle MediaCON USB Type-C Adapter(Neutrik Nmc C Receptacle Mediacon Usb Type C Adapter)

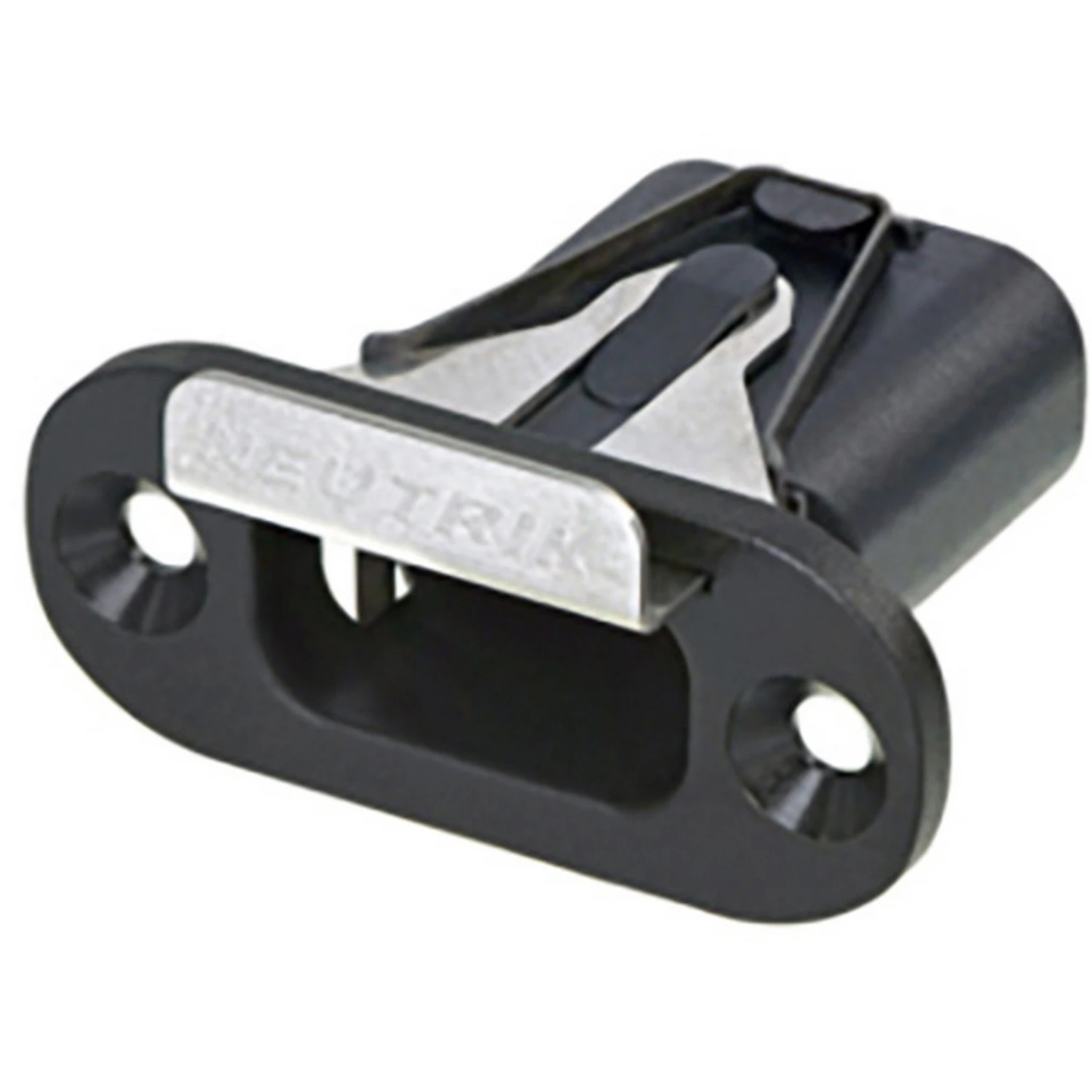

Neutrik NMC-C Receptacle mediaCON USB Type-C Adapter

The NMC-C is a lockable USB type-C chassis. The mediaCON product family includes robust, lockable USB Type-C cables and panel sockets. All components are designed for data rates up to 10 GB/s (USB 3.1), 100 W power and 10,000 mating cycles.

Design engineers at Neutrik have observed that with increasing digitalization, the demand for high-quality and robust data connectors is steadily increasing. More and more manufacturers rely on USB Type-C technology. However, a lockable and reliable interface to connect professional audio components, storage media, cameras, monitors and computer hardware has been missing. The new mediaCON series now offers the perfect solution for professional AV and broadcast applications, live rental, system integration and industrial applications.

Key Features

• Push Pull mating design provides secure locking system if mated with NMK-20U
• Front and rear side mountable
• Reversible USB-C housing
• Guiding housing for better protection of receptacles

Technical Specifications

Transmission Performance
null
Lifetime
10,000 mating cycles
Locking force
50 N
Locking device
Latch lock
Shell
Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Flammability
UL 94 HB
Standard compliance
USB 3.1 Gen II; USB 3.2
Temperature
range -25 Degrees C to +85 Degrees C
