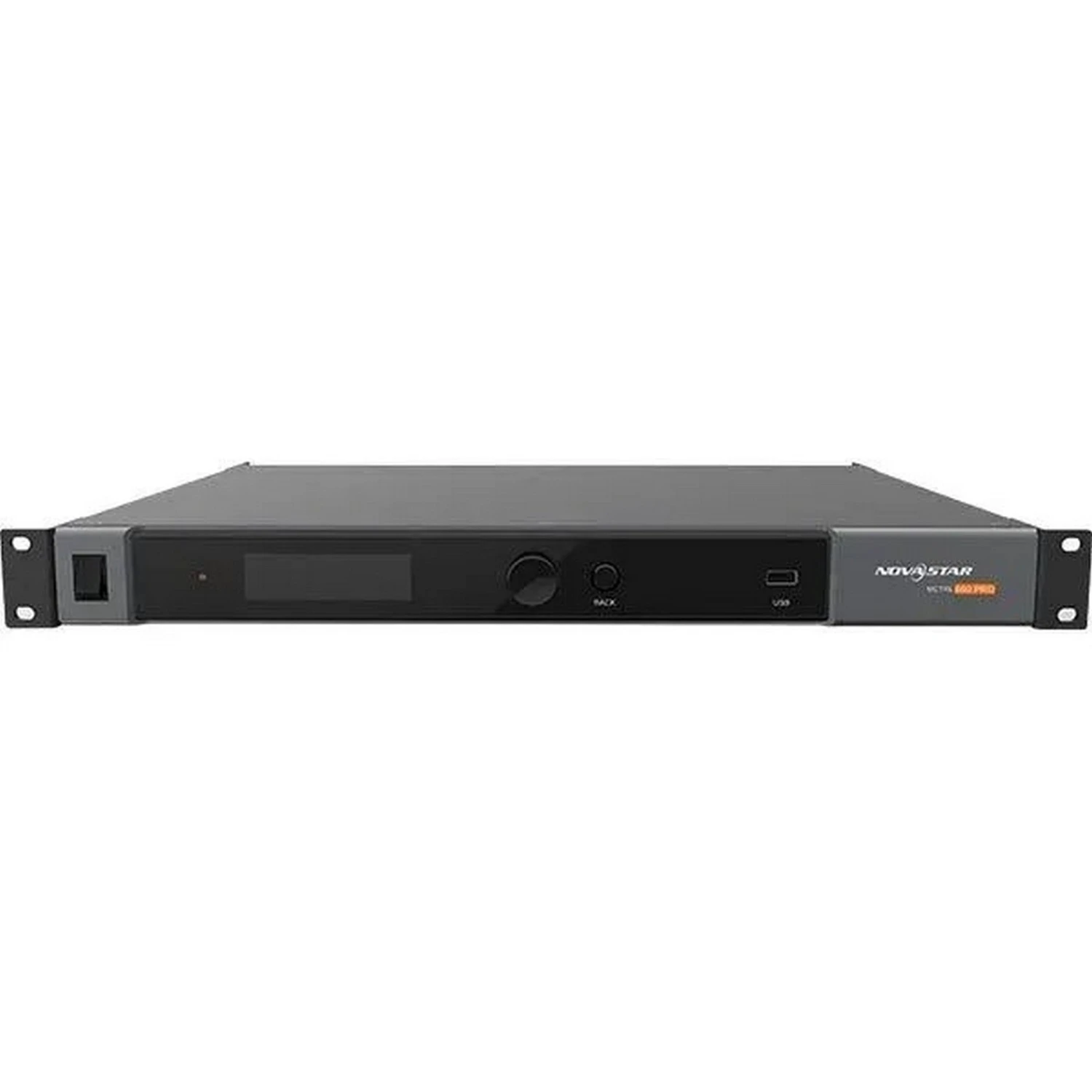

NovaStar MCTRL660 Pro – Independent LED Display Controller

The NovaStar MCTRL660 Pro is a powerful and versatile LED display controller designed to deliver exceptional image quality, unmatched control, and seamless operation. Packed with advanced features, it empowers you to manage even the most demanding LED display applications with ease. Whether you’re managing a rental display for a large event, a mission-critical control room setup, or a high-resolution display for a corporate lobby, the MCTRL660 Pro provides the tools and flexibility you need to create a flawless visual experience.

The MCTRL660 Pro boasts a comprehensive set of video inputs, including HDMI 1.4a, DVI, and DisplayPort 1.2, ensuring compatibility with various video sources. Additionally, it features Gigabit Ethernet and optical fiber outputs for flexible data transmission and content distribution across your LED display. A key advantage of the MCTRL660 Pro is its independent control functionality. Unlike traditional controllers, it can operate without a computer, making it ideal for rental applications and situations where a dedicated PC is not readily available.

Key Features

Exceptional Image Quality: Supports high resolutions for stunning visuals and rich colors (10-bit or 12-bit color depth processing).

Versatile Video Inputs: HDMI 1.4a, DVI, and DisplayPort 1.2 for seamless source integration.

Independent Master Control: Operate the controller without a computer for added flexibility (especially for rental applications).

Gigabit Ethernet and Optical Fiber Outputs: Flexible data transmission options for diverse installations.

3G-SDI Input Support (Optional): Ideal for professional broadcasting environments (requires additional hardware).

Seamless Configuration and Control: User-friendly interface and NovaStar Venus Control software for effortless setup.

Cascading Capability: Control multiple MCTRL660 Pro units together for larger LED walls (up to 8 devices).

Product Specifications

Video Inputs: 1x HDMI 1.4a, 1x DVI, 1x DisplayPort 1.2 (3G-SDI Input – Optional)

Output: 2x Gigabit Ethernet, 1x Optical Fiber

Maximum Load Capacity: Up to 4096 x 2160 @ 60Hz (8-bit)

Color Depth: 10-bit or 12-bit (depending on configuration)

Software Compatibility: NovaStar Venus Control

Operating Temperature: 0°C to +40°C

Operating Humidity: 0% RH to 85% RH, non-condensing

Power Supply: AC 100V-240V~, 50/60Hz

Power Consumption: 25W

Dimensions (W x H x D): 482 x 268.5 x 44.4 mm (18.98 x 10.57 x 1.75 in)

Weight: Approximately 3.0 kg (6.6 lbs)
