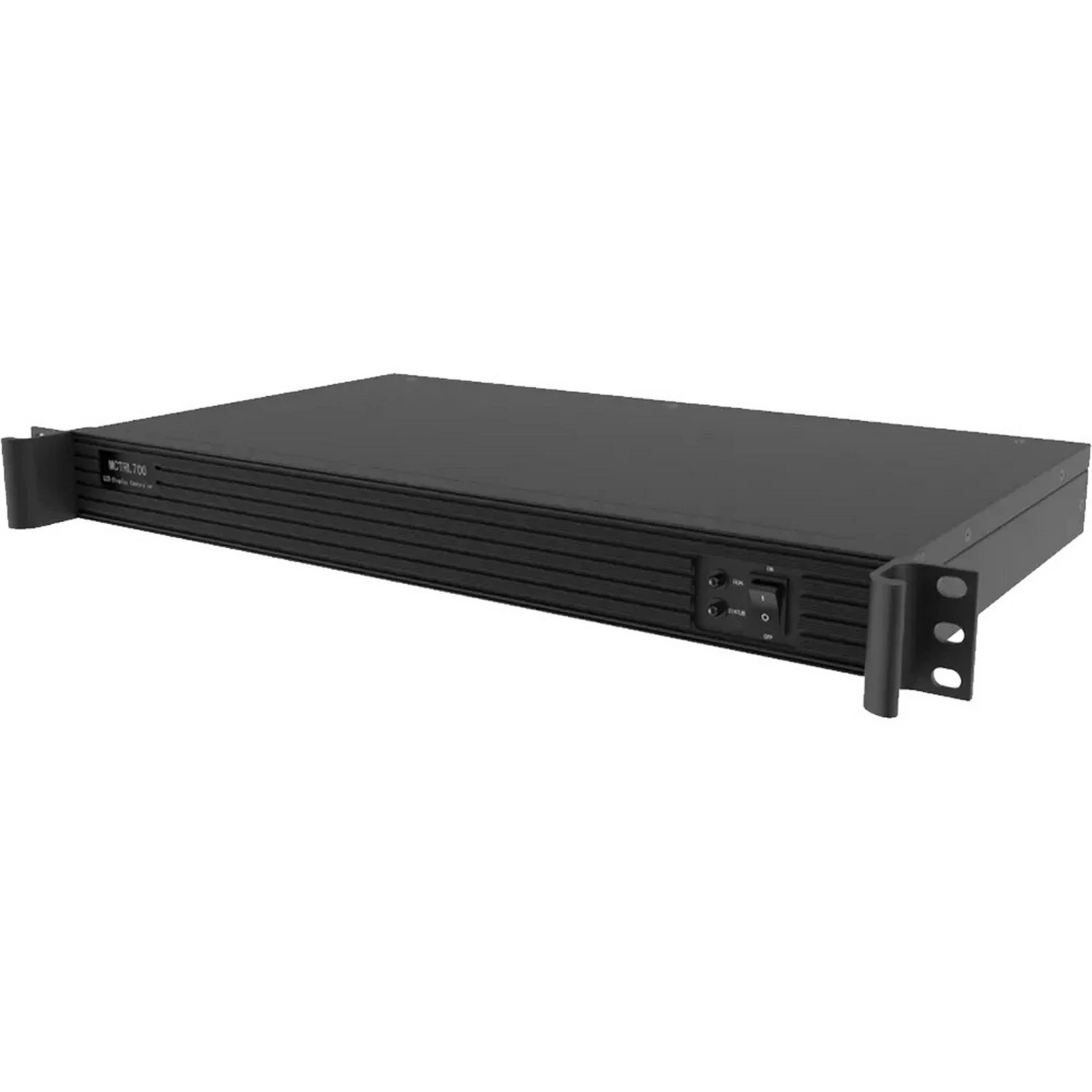

NovaStar MCTRL700 – LED Display Controller for Large Screens

The NovaStar MCTRL700 is a high-performance LED display controller designed for large-scale applications. This robust controller empowers you to manage even the most demanding LED display setups with exceptional image quality, efficient content distribution, and seamless control. Whether you’re controlling a massive video wall at a concert venue, a captivating display at a sporting event, or a high-resolution screen in a broadcast studio, the MCTRL700 delivers the performance and features to create a stunning visual experience.

The MCTRL700 boasts a comprehensive set of video inputs, including DVI and HDMI, to accommodate various video sources. Additionally, it features six Gigabit Ethernet outputs for efficient content distribution across your large LED display. To further enhance control and simplify operation, the MCTRL700 integrates seamlessly with NovaStar’s Venus Control software.

Key Features

High-Performance Control: Delivers exceptional image quality and smooth visuals for large LED displays.

Supports Large Resolutions: Handles high-resolution content for impressive visuals on massive screens.

Versatile Video Inputs: DVI and HDMI inputs for compatibility with various video sources.

Six Gigabit Ethernet Outputs: Efficient content distribution across large LED displays.

Seamless Control with Venus Control Software: User-friendly software for effortless setup and management.

Cascading Capability: Control multiple MCTRL700 units together for even larger LED walls.

Pixel Level Brightness and Chroma Calibration: Ensures consistent color and brightness across the entire display (with Nova LCT and Nova CLB).

Technical Specifications

Video Inputs: 1x DVI (IN/OUT), 1x HDMI 1.3 (IN/OUT)

Audio Input: 1x Stereo Audio

Output: 6x Gigabit Ethernet

Maximum Load Capacity: Up to 1920 x 1200 @ 60Hz (8-bit)

Software Compatibility: NovaStar Venus Control

Operating Temperature: 0°C to +40°C

Operating Humidity: 0% RH to 85% RH, non-condensing

Power Supply: AC 100V-240V~, 50/60Hz

Power Consumption: 38W

Dimensions (W x H x D): 482 x 88 x 310 mm (18.98 x 3.46 x 12.20 in)

Weight: Approximately 5.0 kg (11.0 lbs)
