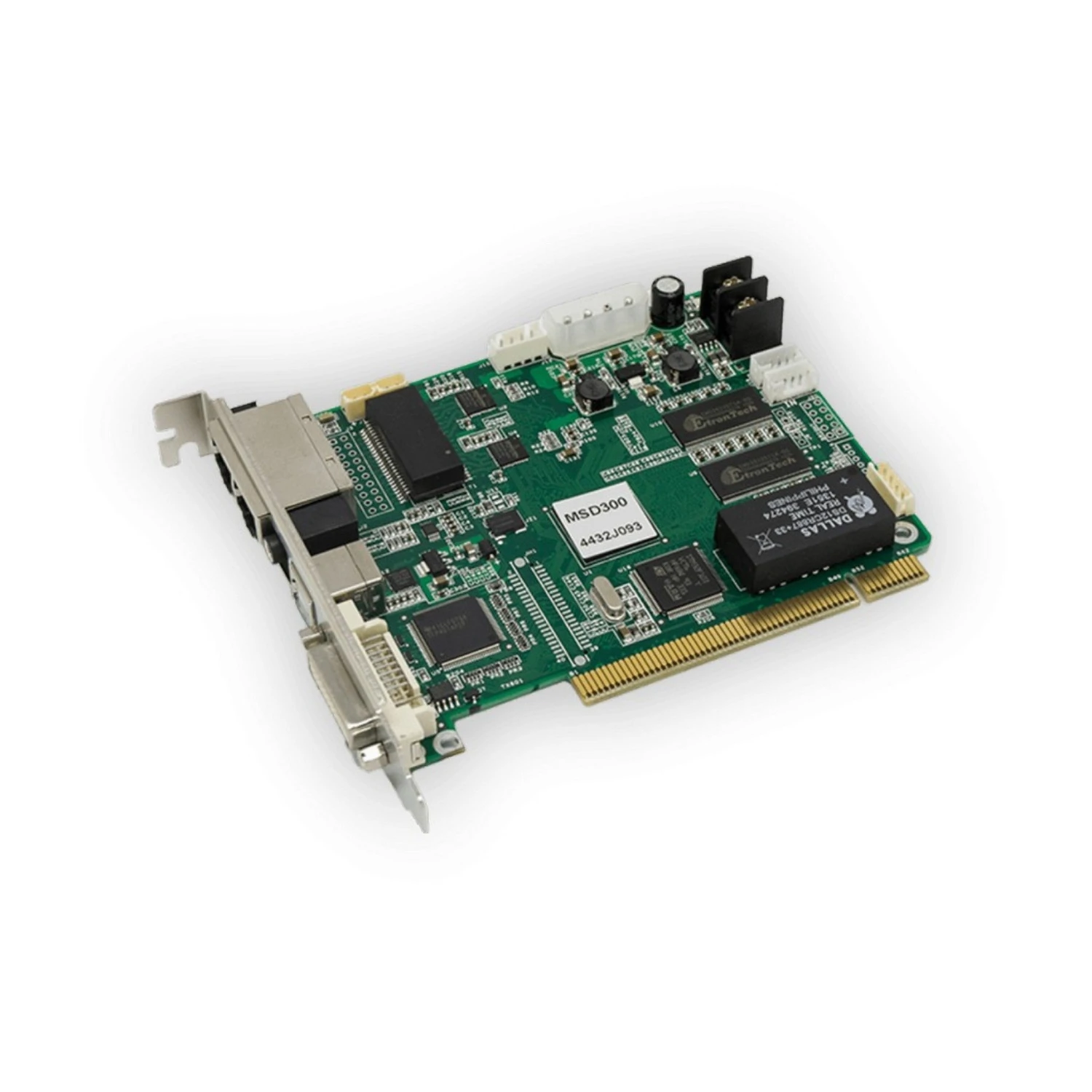

Blizzard NovaStar MSD300 Standard Video Wall Sending Card

The Blizzard NovaStar MSD300 is a high-performance sending card designed to deliver stunning visuals for video wall applications. It’s packed with features that make it ideal for a variety of professional settings, including live events, control rooms, and more. Here’s a detailed description:

The Blizzard NovaStar MSD300 is a versatile and reliable sending card that’s perfect for a wide range of video wall applications. With its high-performance features and easy-to-use design, it’s a great choice for professionals who demand the best in image quality and control.

Key Features

1x DVI video input: Connects to your video source with ease.

1x audio input: Allows for synchronized audio and video playback.

2x Ethernet port outputs: Ensures reliable network connectivity for video wall configurations.

USB control interface: Provides a simple and convenient way to control the sending card.

Cascadable via UART port: Enables you to connect multiple units for larger video wall displays.

Supports high resolutions: Up to 1920×1200@60Hz for exceptional image quality.

Technical Specifications

Input Resolution: Up to 1920×1200@60Hz

Video Input: 1x DVI

Audio Input: 1x 3.5mm jack

Video Output: 2x Ethernet ports

Control Interface: USB Type-B

Cascading: Via UART port

Pixel Loading Capacity: 1.3 million pixels

Supported Resolutions: 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1970×712@69Hz, 2048×668@60Hz

Working Temperature: -20-60° C

Humidity: 0-95%

Dimensions: 0.1″ x 3.9″ x 5″ (0.24kg)
