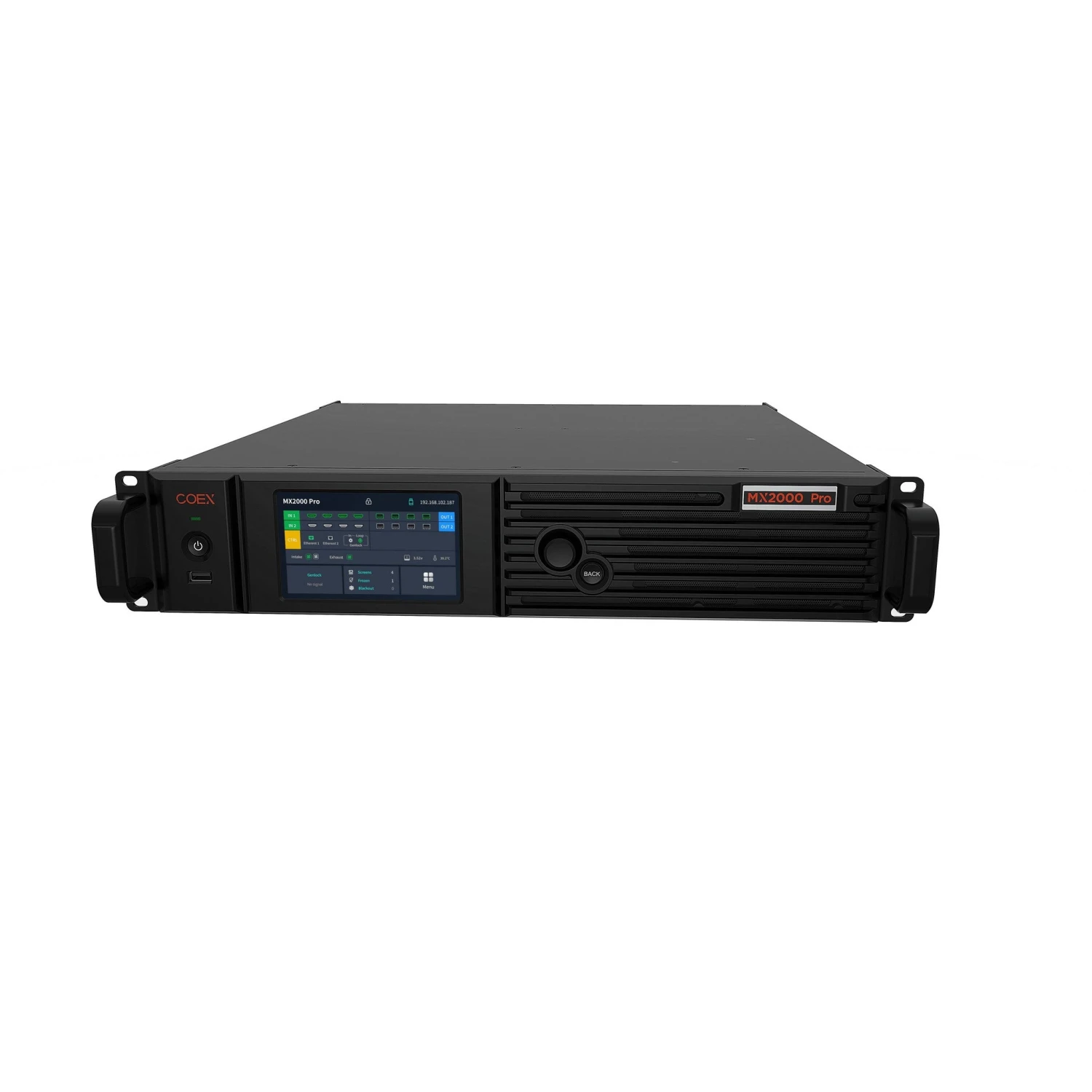

MX2000 Pro LED Display Controller: Advanced Solution for Large-Scale LED Displays

The MX2000 Pro LED Display Controller is a cutting-edge device designed to meet the demanding requirements of large-scale LED display applications. This powerful controller offers exceptional performance, versatility, and reliability for a wide range of professional settings, including outdoor advertising, sports venues, and high-end commercial installations. With its advanced features and robust capabilities, the MX2000 Pro sets a new standard in LED display control technology.

Engineered to handle complex display configurations, the MX2000 Pro supports an impressive maximum loading capacity of 8.8 million pixels, making it ideal for managing expansive LED screens with stunning clarity and precision. The controller’s high refresh rate capabilities ensure smooth and flicker-free visuals, even in fast-moving content scenarios. Its flexible input options, including HDMI 2.0, DP 1.2, and 12G-SDI, allow for seamless integration with various video sources, catering to diverse project requirements.

The MX2000 Pro LED Display Controller is the perfect solution for professionals seeking a high-performance, reliable, and versatile control system for large-scale LED displays. With its advanced features, robust build quality, and user-friendly interface, this controller delivers exceptional results in even the most demanding applications.

Key Features

• High pixel loading capacity of up to 8.8 million pixels
• Support for 4K@60Hz input and output
• Multiple input interfaces: HDMI 2.0, DP 1.2, 12G-SDI
• Advanced color management with 10-bit processing
• Flexible output configurations with 16 Ethernet ports
• Dual redundant power supply for enhanced reliability
• Intuitive web-based control interface
• Genlock support for multi-screen synchronization

Product Specifications:

Input Performance

Number of inputs: 3
Input connector: HDMI 2.0 x 1, DP 1.2 x 1, 12G-SDI x 1
Input resolution: Up to 4096×2160@60Hz
Input bit depth: 8-bit

Output Performance

Number of Ethernet ports: 16
Ethernet port type: RJ45
Ethernet port bandwidth: 3.2 Gbps
Maximum loading capacity: 8,800,000 pixels
Genlock: Supported

Processing Features

Bit depth: 10-bit
Video scaling: 8K scaling
Low latency: Supported
HDR: Supported
3D: Supported

Control

Control method: Web-based control
Control connector: RJ45

Power

Power supply: 100-240V AC, 50/60Hz
Power consumption: 65W
Redundant power: Dual redundant power supply

Physical Specifications

Dimensions (WxDxH): 482.6 mm x 396.5 mm x 94.8 mm
Net weight: 8.2 kg
Operating temperature: -20°C to +60°C
Operating humidity: 10% RH to 90% RH, non-condensing
Storage temperature: -25°C to +65°C
Storage humidity: 10% RH to 95% RH, non-condensing
IP rating: IP20
