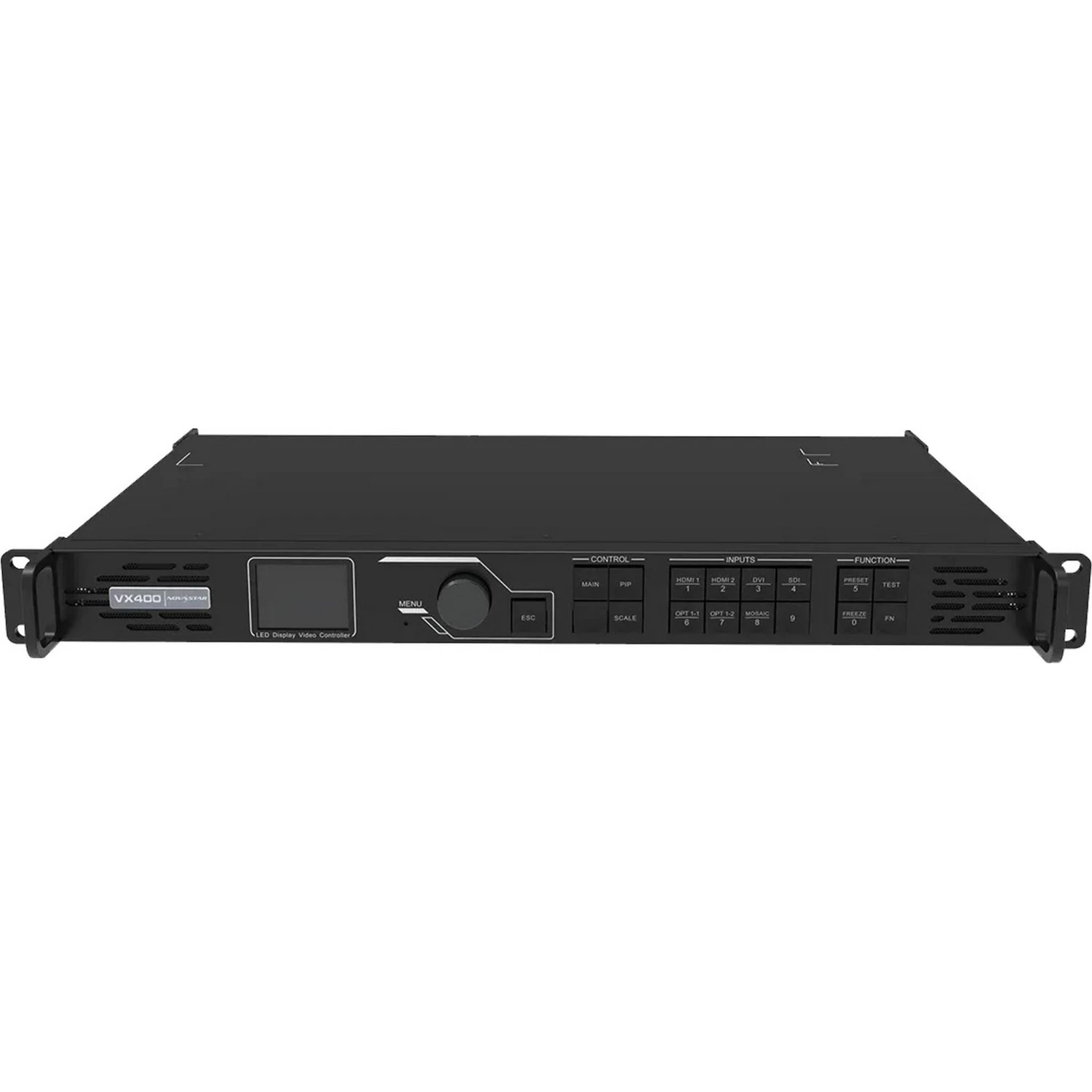

NovaStar VX400 All-In-One LED Video Controller/Processor

NovaStar’s VX400 is a revolutionary all-in-one controller that simplifies video processing and control by integrating both functionalities into a single unit. This eliminates the need for separate components, streamlining the setup process and reducing overall system complexity. The VX400 boasts exceptional versatility, supporting various working modes such as video controller, fiber converter, and Bypass, making it adaptable to a wide range of applications.

A standout feature of the VX400 is its remarkable processing power. It can effortlessly drive up to a staggering 2.6 million pixels, making it a perfect solution for massive LED screens with ultra-wide and ultra-high resolutions. The VX400 effortlessly handles resolutions up to 10,240 pixels wide and 8192 pixels high, ensuring immaculate visuals for even the most demanding content.

Key Features

All-in-one design integrates video processing and video control for streamlined operation
Supports various working modes: video controller, fiber converter, and Bypass
Exceptional processing power drives up to 2.6 million pixels
Supports ultra-wide and ultra-high LED screen resolutions (up to 10,240 x 8192 pixels)
Compatible with NovaStar’s NovaLCT and V-Can software for convenient in-field operations
Ideal for applications including medium and high-end rental, stage control systems, and fine-pitch LED screens

Product Specifications

Display Output
Up to 2.6 million pixels
Maximum width: 10,240 pixels
Maximum height: 8192 pixels

Connectivity
4x Gigabit Ethernet ports
2x Fiber outputs
1x HDMI 1.3 (IN & LOOP)
1x HDMI 1.3
1x DVI (IN & LOOP)
1x 3G-SDI (IN & LOOP)
1x optical fiber port (OPT1)

Supported Inputs
The VX400 is capable of receiving a variety of video signals including HDMI, DVI, and 3G-SDI.

Video Processing and Sending Capabilities
SuperView III image quality processing technologies to provide stepless output scaling, one-click full screen display, free input cropping, automatic screen brightness adjustment, up to 10 user-defined presets, and multiple kinds of hot backup.

Color Adjustment
All-round color adjustment input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and gamma.

Calibration
Works with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED.

Operation Modes
Multiple operation modes to control the device via V-Can, NovaLCT or device front panel knob and summarys.

Certifications and Compliance
Certifications are not available. Customers are responsible to confirm if the product complies with the regulations of the countries or regions where it is sold.
