Obsidian Control NX WING 128 Universe Control Surface With MIDI USB Controller(Obsidian Control Nx Wing 128 Universe Control Surface With Midi Usb Controller)

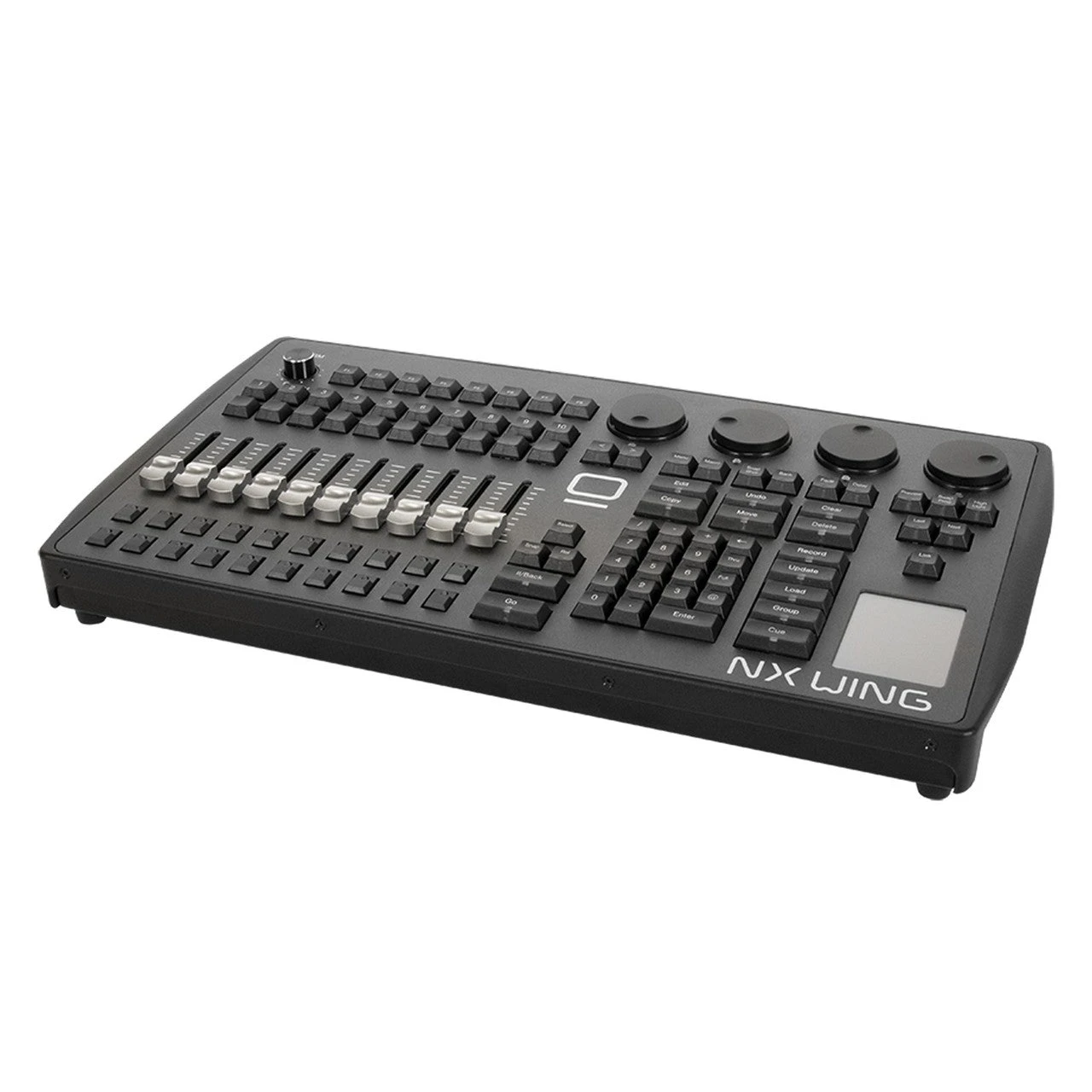

Obsidian Control NX WING 128 Universe Control Surface with MIDI USB Controller

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX2 provides a responsive professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly.

Key Features

• Fully featured control surface, portable and lightweight
• 10 Playbacks, Encoders, Keypad and internal touchscreen
• DMX, Timecode and Midi Connectivity
• 128 Universe License for ONYX included
• Plug and Play USB device for any PC with ONYX

Technical Specifications

Physical Dimensions
Length
30 0mm (11.9 in.)
Width
540 mm (21.3 in.)
Height
99mm (3.9 in.)
Weight
4.6 kg (10.2 lbs.)
Electrical
AC mains power to 12 VDC external PSU (included): 100-240 V nominal, 50/60 Hz
Maximum current: 1.4 A
12 VDC output: 11 A, 132 W max.
