Ortofon Concorde ELITE Single Moving Magnet DJ Cartridge(Ortofon Concorde Elite Single Moving Magnet Dj Cartridge)

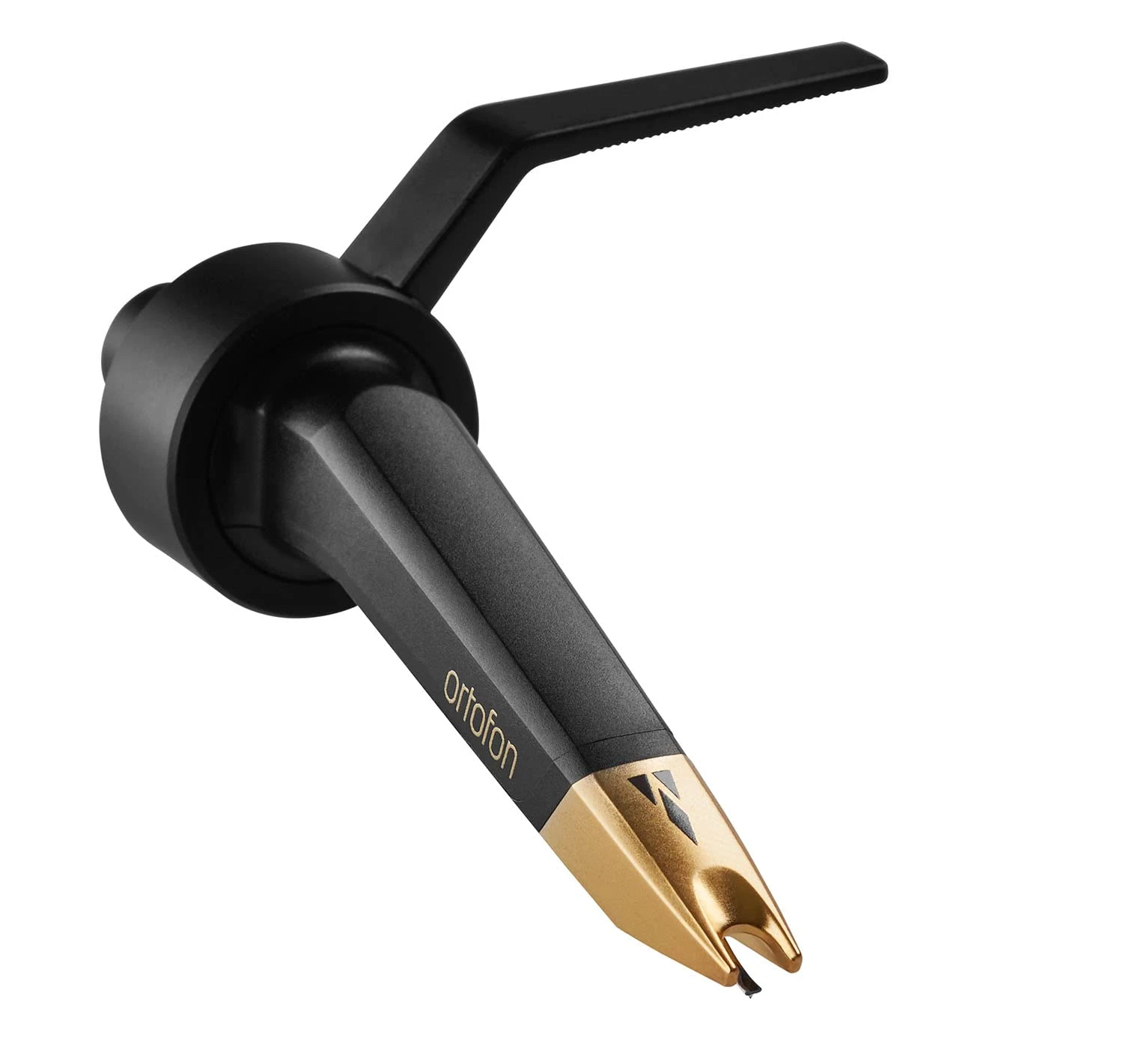

Ortofon Concorde ELITE Single Moving Magnet DJ Cartridge

The Ortofon Concorde ELITE is a premium Moving Magnet cartridge, setting a new standard in DJ categorization. Building on the renowned legacy of the Ortofon Concorde MkII series, the ELITE incorporates numerous upgrades in its components, offering unparalleled sound quality. Crafted for the discerning DJ and audiophile, this cartridge promises to elevate your audio experience to levels not previously achievable with DJ cartridges. Experience the ultimate fidelity and performance, whether you’re playing at a club, in the studio, or at home.

The ELITE features an advanced design that enhances sound reproduction clarity and accuracy, ensuring every beat, note, and subtle nuance is captured. Its Nude Elliptical stylus type offers superior tracking ability, while the recommended tracking force of 3.0 g ensures optimal contact with your vinyl records. With an impressive output voltage of 8.5 mV and a wide frequency range from 20-20,000 Hz, this cartridge is built to deliver robust and dynamic audio.

Key Features

• Stylus Type: Nude Elliptical
• Tracking Force: 3.0 g
• Output Voltage: 8.5 mV
• Frequency Range: 20-20,000 Hz

Specifications

• Output voltage at 1000 Hz, 5cm/sec.: 8.5 mV
• Channel balance at 1 kHz: 1 dB
• Channel separation at 1 kHz: 25 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3 dB: 20 – 20,000 Hz
• Tracking ability at 315Hz at recommended tracking force: 100 μm
• Compliance, dynamic lateral: 13 μm/mN
• Stylus tip radius: r/R 8/18 μm
• Tracking force range: 2.0-4.0 g
• Tracking force recommended: 3.0 g
• Tracking angle: 20 Degrees
• Internal impedance, DC resistance: 1.2 kOhm
• Internal inductance: 800 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-400 pF
• Cartridge weight excluding screws: 18.5 g
• Cartridge color (body/stylus): Black/Gold
• Replacement stylus unit: ELITE/n

Package Contents

• Ortofon Concorde ELITE DJ Cartridge
• Replacement ELITE/n Stylus
• User Manual
