Ortofon OM-5e OM Single Elliptical Stylus Listening Cartridge(Ortofon Om 5e Om Single Elliptical Stylus Listening Cartridge)

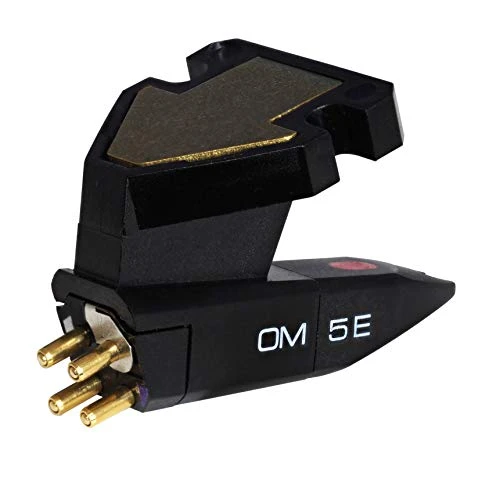

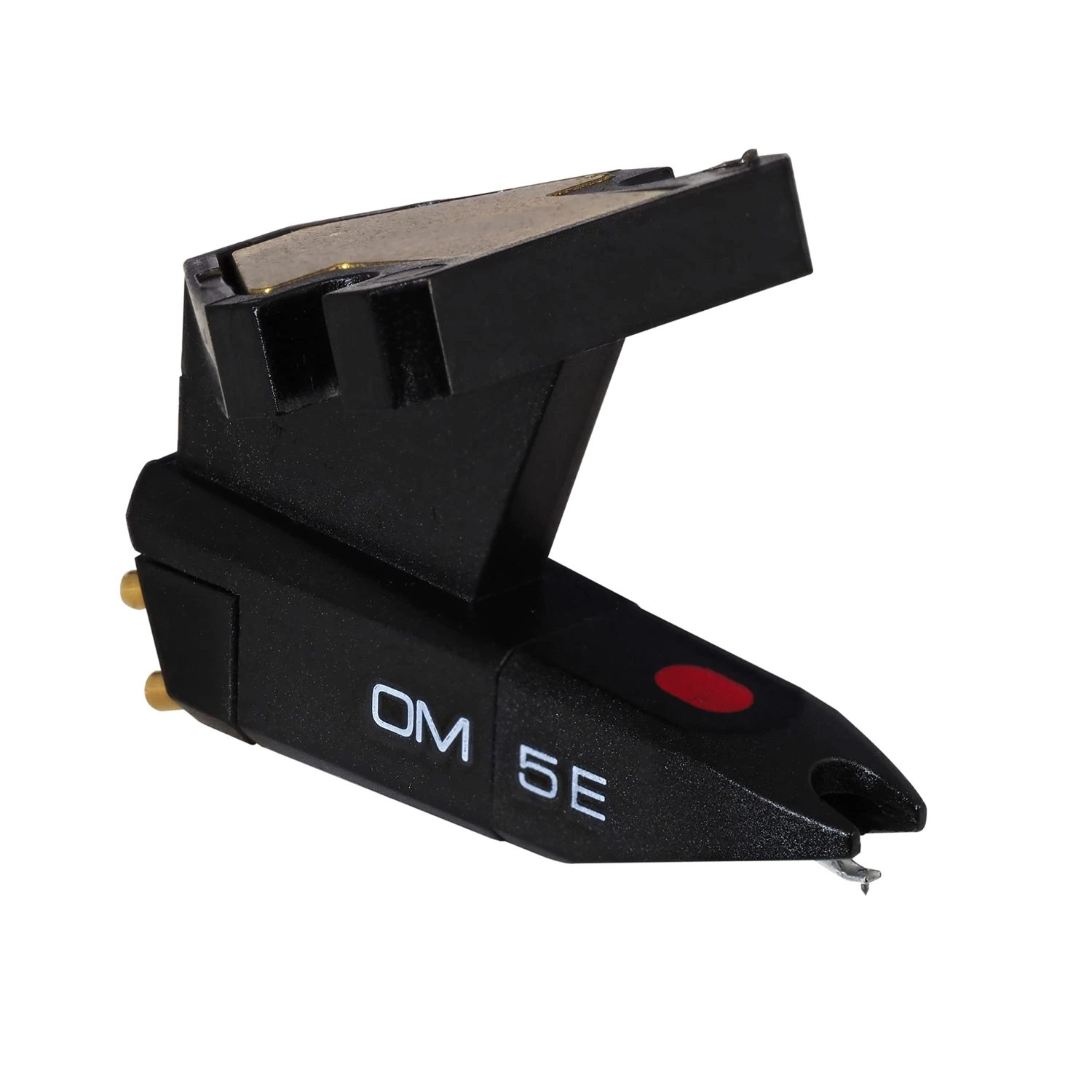

Ortofon OM-5e OM Single Elliptical Stylus Listening Cartridge

The Ortofon OM-5e OM Single Elliptical Stylus Listening Cartridge is a top-notch choice for audiophiles and vinyl enthusiasts seeking unparalleled sound quality. This cartridge is a part of the renowned OM 5 series by Ortofon, which also includes OM 5S and Super OM 5 models. Known for its low mass and exceptional tracking capabilities, the OM-5e is a versatile and easy-to-mount cartridge that provides an outstanding audio experience. Whether you are just getting into vinyl or are a seasoned listener, the OM-5e’s sleek design and high-performance features make it a must-have for anyone serious about their sound.

The Ortofon OM-5e is engineered to offer a perfect balance of performance and durability. Its elliptical stylus design ensures precise tracking and minimal wear on your records, while the cartridge body is optimized for easy mounting on both top and bottom mount headshells. With a wide frequency range and exceptional channel separation, this cartridge delivers clear, detailed audio that enhances every note of your favorite records. Its compliance and tracking force specifications are designed to provide the best possible listening experience across a range of setups.

The OM-5e is not just about performance; it is also built to last. With a stylus tip radius of r/R 8/18 µm and a recommended tracking force of 1.75 g, this cartridge is designed for longevity and reliability. Whether you’re spinning classic rock, jazz, or modern pop, the OM-5e ensures that every track sounds its best, making it an excellent addition to any turntable setup.

Key Features

• Easy mounting and alignment on both top mount and bottom mount headshells
• Low-mass cartridge design for versatile use
• Elliptical stylus for precise tracking
• Wide frequency range (20-20,000 Hz) for detailed audio reproduction
• Excellent channel separation (22 dB at 1 kHz)
• Optimized compliance and tracking force for a superior listening experience

Specifications

• Output voltage: 4 mV at 1,000 Hz, 5 cm/sec
• Channel balance: 2 dB at 1 kHz
• Channel separation: 22 dB at 1 kHz, 15 dB at 15 kHz
• Frequency range: 20-25,000 Hz (-3 dB)
• Frequency response: 20-20,000 Hz (-2 dB)
• Tracking ability: 65 µm at recommended tracking force
• Compliance, dynamic, lateral: 20 µm/mN
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.5-2.0 g (15-20 mN)
• Recommended tracking force: 1.75 g (17.5 mN)
• Tracking angle: 20°

Package Contents

• Ortofon OM-5e OM Single Elliptical Stylus Listening Cartridge
• Mounting hardware
• Installation guide
• Stylus cleaning brush
